FUEL TANK TUBE

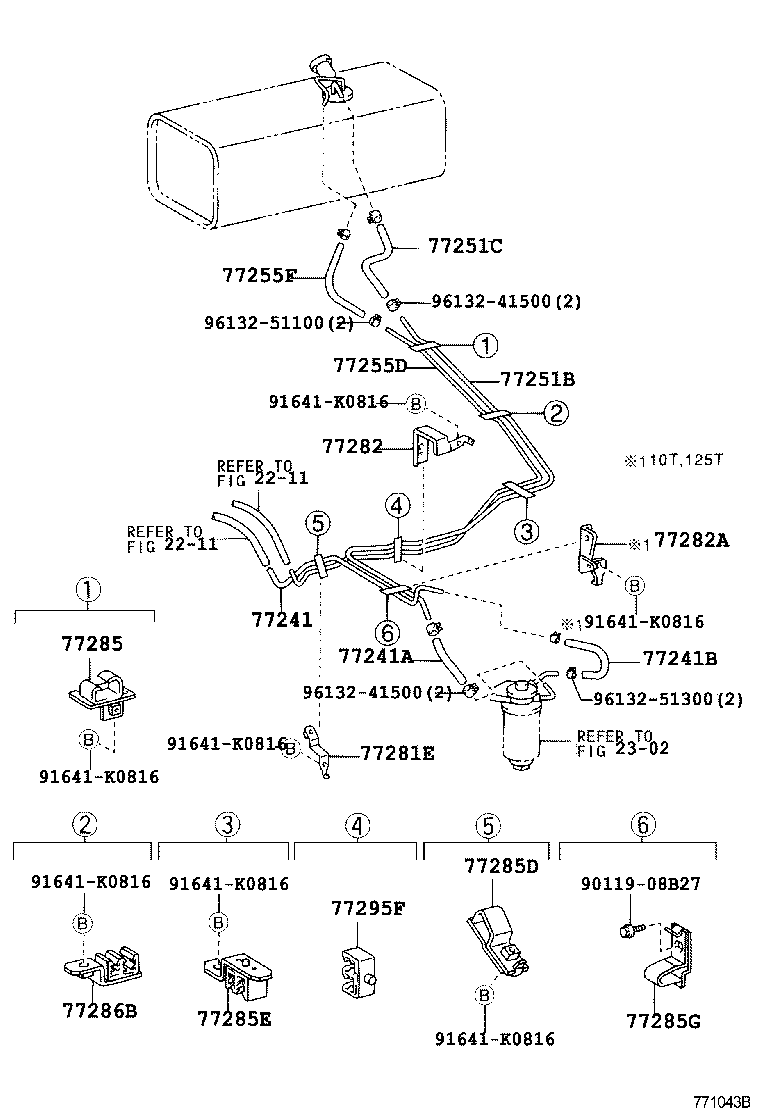

FUEL TUBE ILLUST NO. 2 OF 2(0108- )KDY220,230,250,260

DYNA | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig 77241 - TUBE, FUEL MAIN, NO.1 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) 77251B - TUBE, FUEL MAIN 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) 77255D - TUBE, FUEL RETURN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77281E - BRACKET, FUEL MAIN TUBE, NO.1 77282 - BRACKET, FUEL MAIN TUBE, NO.2 77282A - BRACKET, FUEL MAIN TUBE, NO.2 77285 - BRACKET, FUEL TUBE 77285D - CLAMP, FUEL TUBE, NO.1 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285G - CLAMP, FUEL TUBE, NO.1 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77295F - GROMMET, FUEL HOSE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
