TOYOTA AVENSIS CDT250L-AWMNYW / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

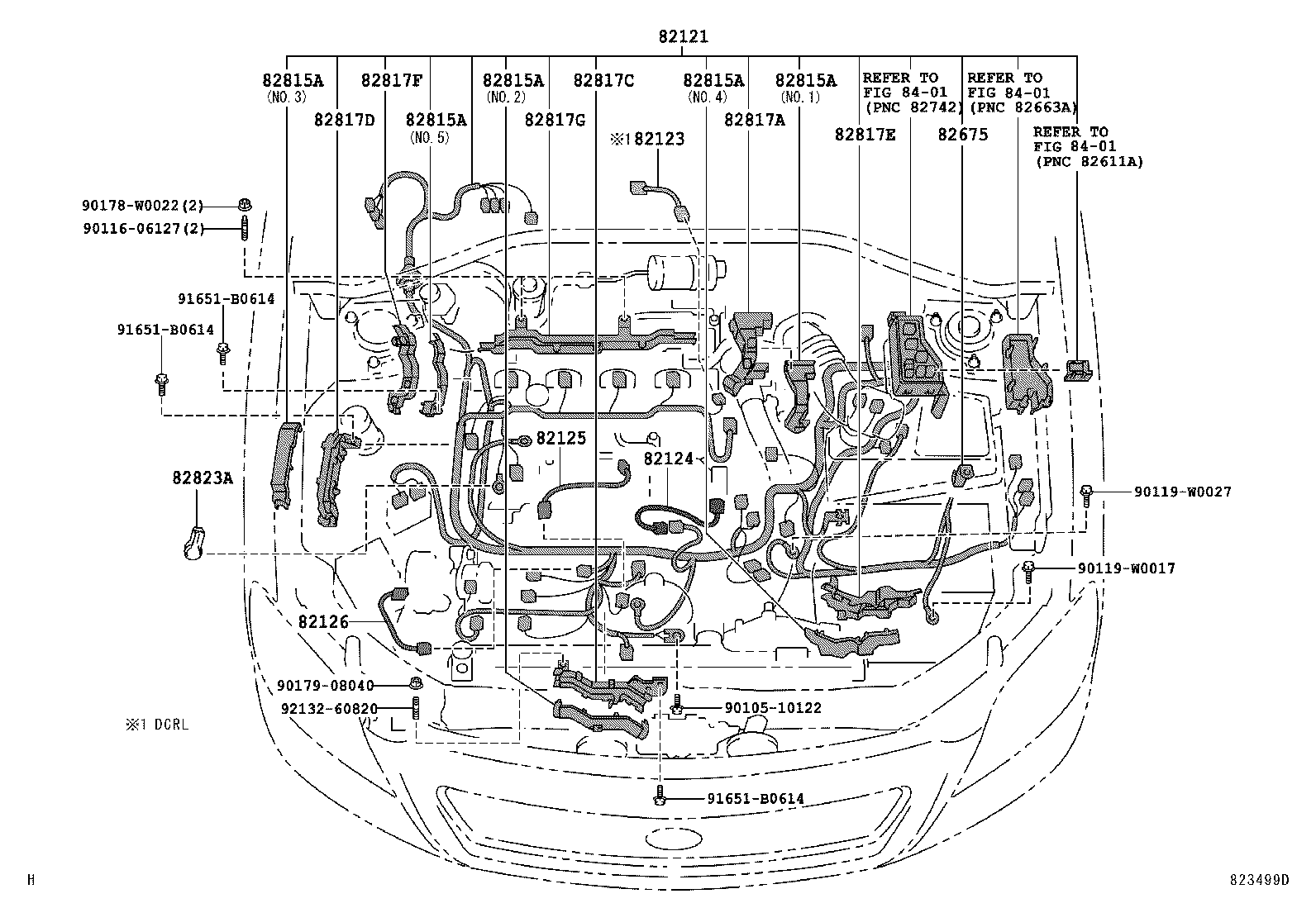

ENGINE ILLUST NO. 2 OF 9(0303-0604)CDT250..LHD

 AVENSIS |  WIRING CLAMP 82121 - WIRE, ENGINE 82123 - WIRE, ENGINE, NO.3 82124 - WIRE, ENGINE, NO.4 82125 - WIRE, TRANSMISSION 82126 - WIRE, ENGINE 82675 - TERMINAL, JUNCTION 82815A - COVER, WIRING HARNESS PROTECTOR 82815A - COVER, WIRING HARNESS PROTECTOR 82815A - COVER, WIRING HARNESS PROTECTOR 82815A - COVER, WIRING HARNESS PROTECTOR 82815A - COVER, WIRING HARNESS PROTECTOR 82817A - PROTECTOR, WIRING HARNESS, NO.2 82817C - PROTECTOR, WIRING HARNESS, NO.4 82817D - PROTECTOR, WIRING HARNESS, NO.5 82817E - PROTECTOR, WIRING HARNESS, NO.6 82817F - PROTECTOR, WIRING HARNESS, NO.7 82817G - PROTECTOR, WIRING HARNESS, NO.8 82823A - CAP, TERMINAL, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
