TOYOTA COROLLA VERSO AUR10L-GRFDYW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

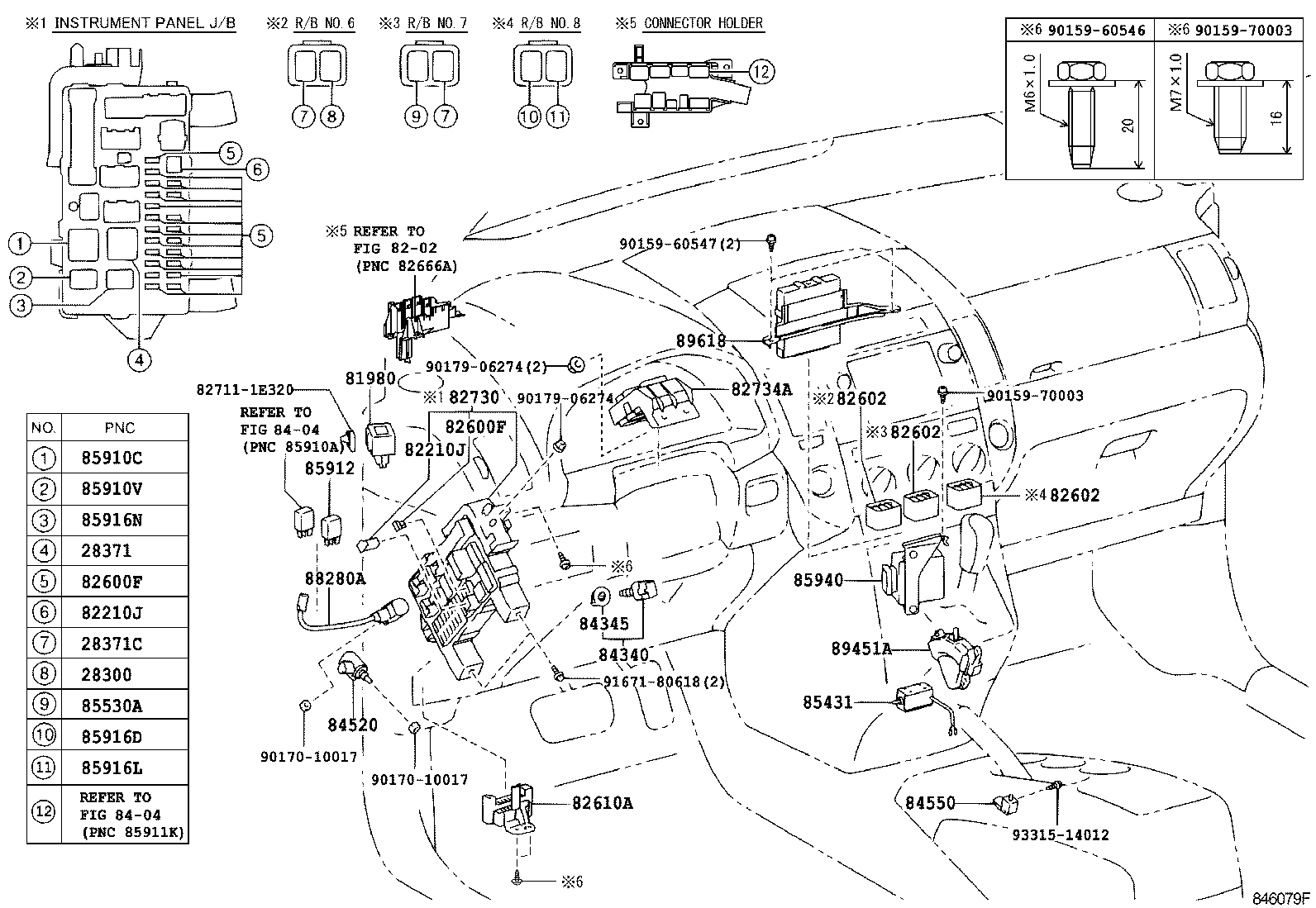

SWITCH RELAY COMPUTER

COWL ILLUST NO. 3 OF 6(0402- )LHD

COROLLA VERSO | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28371 - RELAY, IGNITION, NO.1 28371C - RELAY, IGNITION, NO.2 81980 - FLASHER ASSY, TURN SIGNAL ** Refer Fig 82210J - FUSIBLE LINK 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82602 - BLOCK SUB-ASSY, RELAY 82602 - BLOCK SUB-ASSY, RELAY 82602 - BLOCK SUB-ASSY, RELAY 82610A - BLOCK ASSY, FUSE ** Std Part 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION 82734A - BLOCK, CENTER JUNCTION ** Refer Fig ** Refer Fig 84340 - SWITCH ASSY, STOP LAMP 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING 84520 - SWITCH ASSY, CLUTCH START 84550 - SWITCH ASSY, PARKING BRAKE 85431 - SOLENOID, SHIFT LOCK 85530A - RELAY, POWER OUTLET SOCKET 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85910V - RELAY, SEAT HEATER 85912 - RELAY, DEFOGGER 85916D - RELAY, FOG LAMP 85916L - RELAY, REAR FOG LAMP 85916N - RELAY, TAIL LAMP 85940 - RELAY ASSY, WINDSHIELD WIPER 88280A - SWITCH ASSY, CLUTCH 89451A - SENSOR, SHIFT LEVER POSITION 89618 - COMPUTER, IGNITION CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
