TOYOTA RAV4 CLA21L-AWMNYW / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

W/O(AIR CONDITIONER) ILLUST NO. 1 OF 2(0307- )LHD

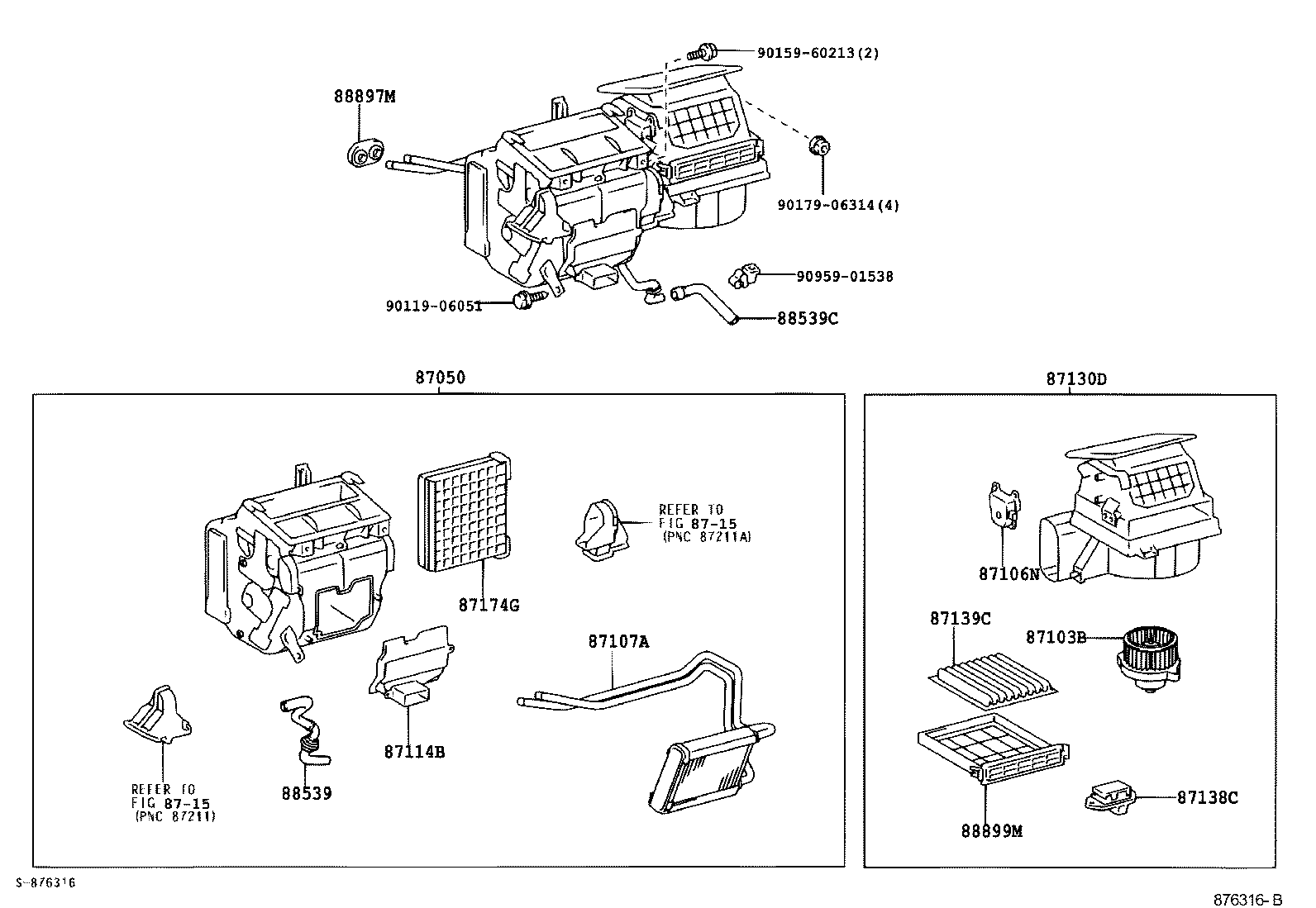

 RAV4 |  HEATING AIR CONDITIONING COOLER UNIT 87050 - RADIATOR ASSY, AIR CONDITIONER 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) 87107A - UNIT SUB-ASSY, HEATER RADIATOR 87114B - COVER, HEATER 87130D - BLOWER ASSY 87138C - RESISTOR, BLOWER 87139C - FILTER, CLEAN AIR ** Refer Fig ** Refer Fig 87174G - GUIDE, AIR HEATER 88539 - HOSE, COOLER UNIT DRAIN, NO.1 88539C - HOSE, COOLER UNIT DRAIN, NO.2 88897M - GROMMET (FOR HEATER PIPE) 88899M - PLATE, COVER(FOR AIR FILTER)  ** Std Part  ** Std Part  ** Std Part  ** Std Part
