TOYOTA RAV4 CLA21L-AWMNYW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

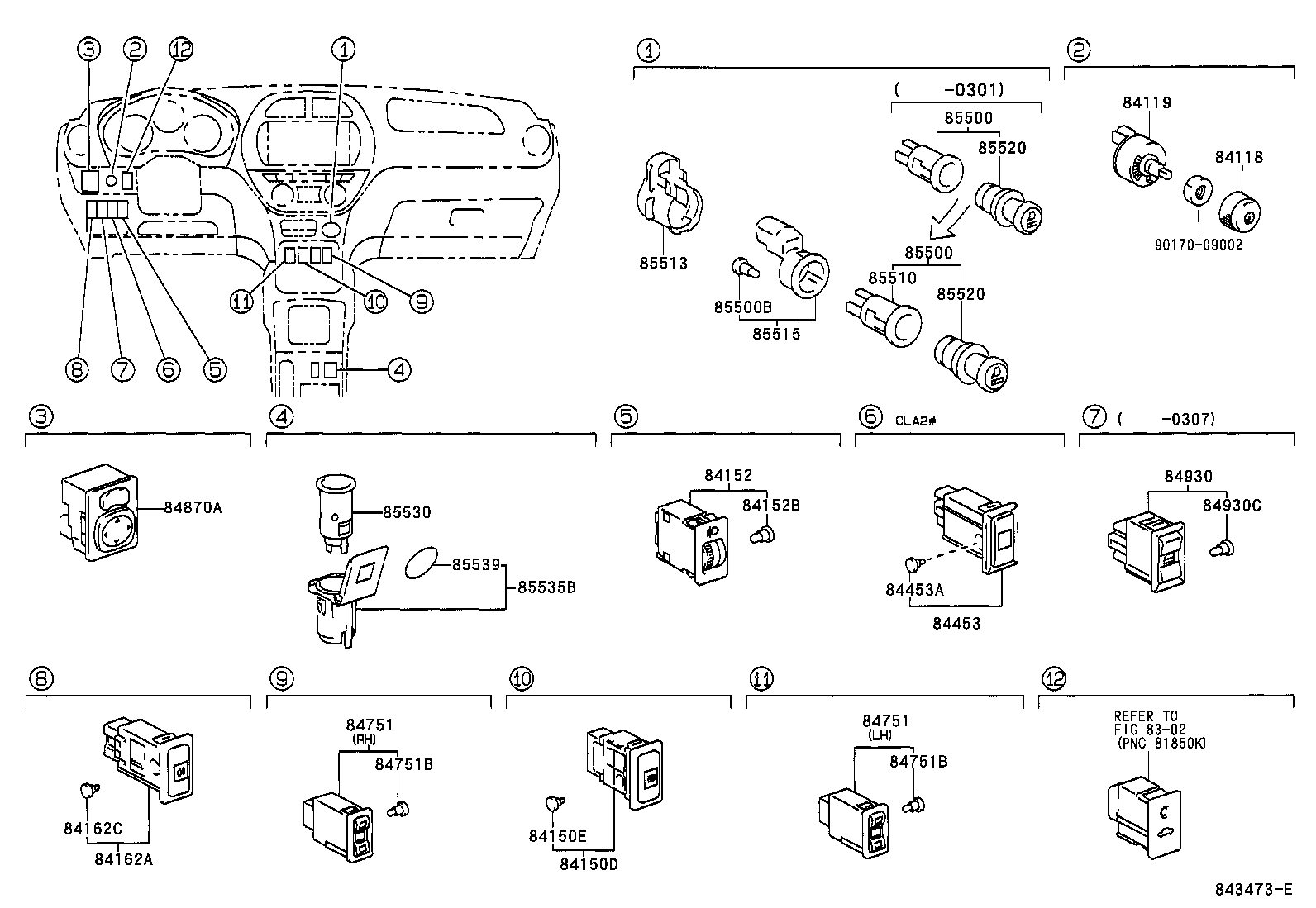

SWITCH RELAY COMPUTER

INSTRUMENT PANEL ILLUST NO. 4 OF 6(0005- )LHD

RAV4 | SWITCH RELAY COMPUTER ** Refer Fig 84118 - KNOB, LIGHT CONTROL RHEOSTAT 84119 - RHEOSTAT, LIGHT CONTROL 84150D - SWITCH ASSY, HEADLAMP CLEANER 84150E - BULB, HEADLAMP CLEANER SWITCH 84152 - SWITCH, HEADLAMP LEVELING 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) 84162A - SWITCH, REAR FOG LAMP 84162C - BULB (FOR REAR FOG LAMP SWITCH) 84453 - SWITCH, IDLE UP 84453A - BULB, IDLE UP SWITCH 84751 - SWITCH, SEAT HEATER 84751 - SWITCH, SEAT HEATER 84751B - BULB, SEAT HEATER SWITCH 84751B - BULB, SEAT HEATER SWITCH 84870A - SWITCH ASSY, OUTER MIRROR 84930 - SWITCH ASSY, DOOR CONTROL 84930C - BULB(FOR DOOR CONTROL SWITCH) 85500 - LIGHTER ASSY, CIGARETTE 85500 - LIGHTER ASSY, CIGARETTE 85500B - BULB, CIGARETTE LIGHTER 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER 85513 - COVER, CIGARETTE LIGHTER 85515 - STAY, CIGARETTE LIGHTER BEZEL 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 85530 - SOCKET ASSY, POWER OUTLET, NO.1 85535B - COVER, POWER OUTLET SOCKET, NO.1 85539 - LABEL, POWER OUTLET NOTICE ** Std Part
