TOYOTA STARLET EP91L-AHHNKW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

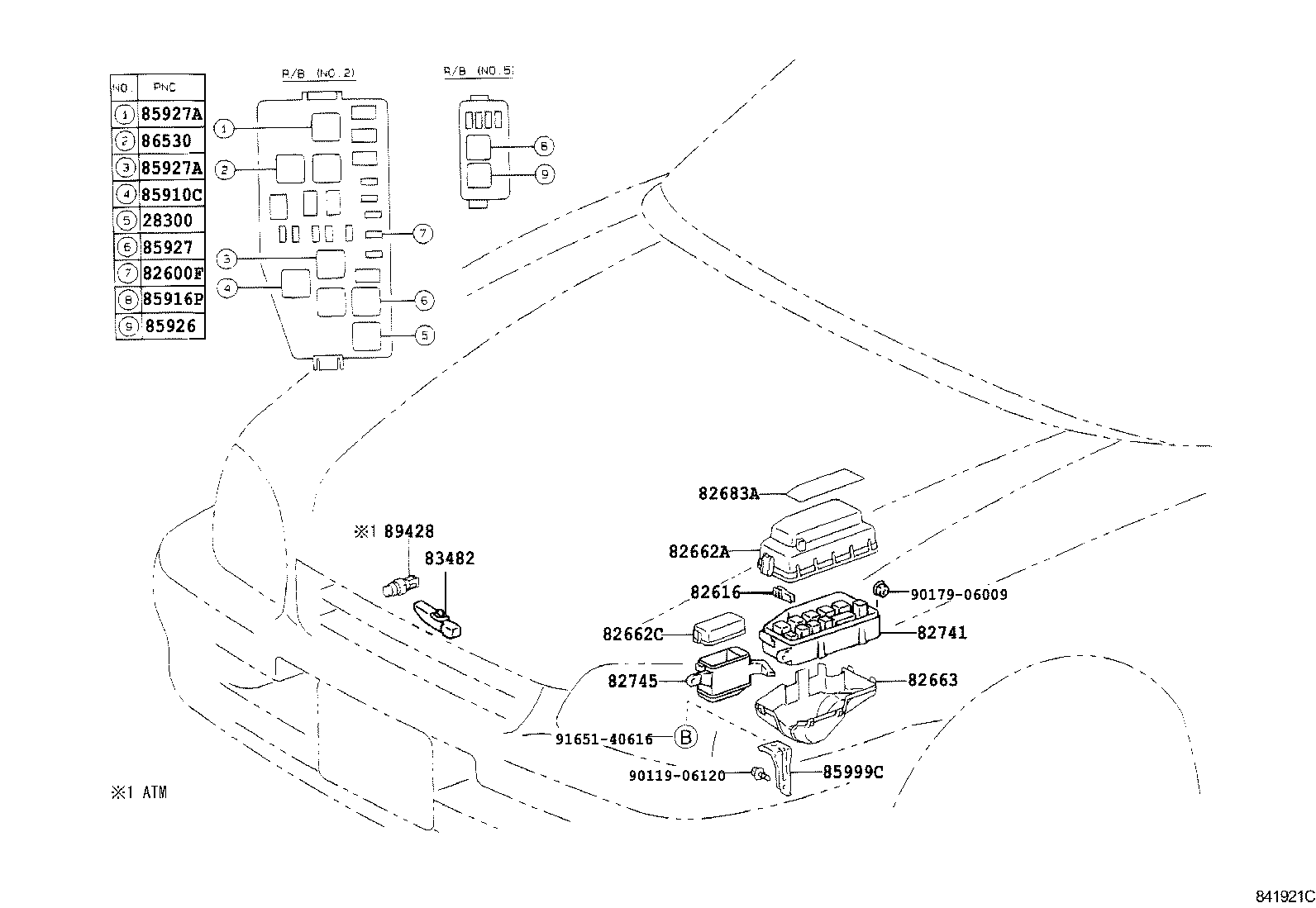

E/G ROOM ILLUST NO. 2 OF 6(9601- )

 STARLET |  SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662C - COVER, RELAY BLOCK, UPPER, NO.3 82663 - COVER, RELAY BLOCK, LOWER 82683A - PLATE, FUSE BLOCK CAUTION 82741 - BLOCK, ENGINE ROOM RELAY 82745 - BLOCK, ENGINE ROOM RELAY, NO.5 83482 - SENSOR, OUTER AMBIENT TEMPERATURE 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85916P - RELAY, HEADLAMP 85926 - RELAY, HEADLAMP DIMMER 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927A - RELAY, COOLING FAN, NO.2 85999C - BRACKET, RELAY, NO.3 86530 - RELAY ASSY, HORN 89428 - SWITCH, TEMPERATURE DETECT, NO.2  ** Std Part  ** Std Part  ** Std Part
