TOYOTA SUPRA JZA80L-AJPVZW / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

MANIFOLD

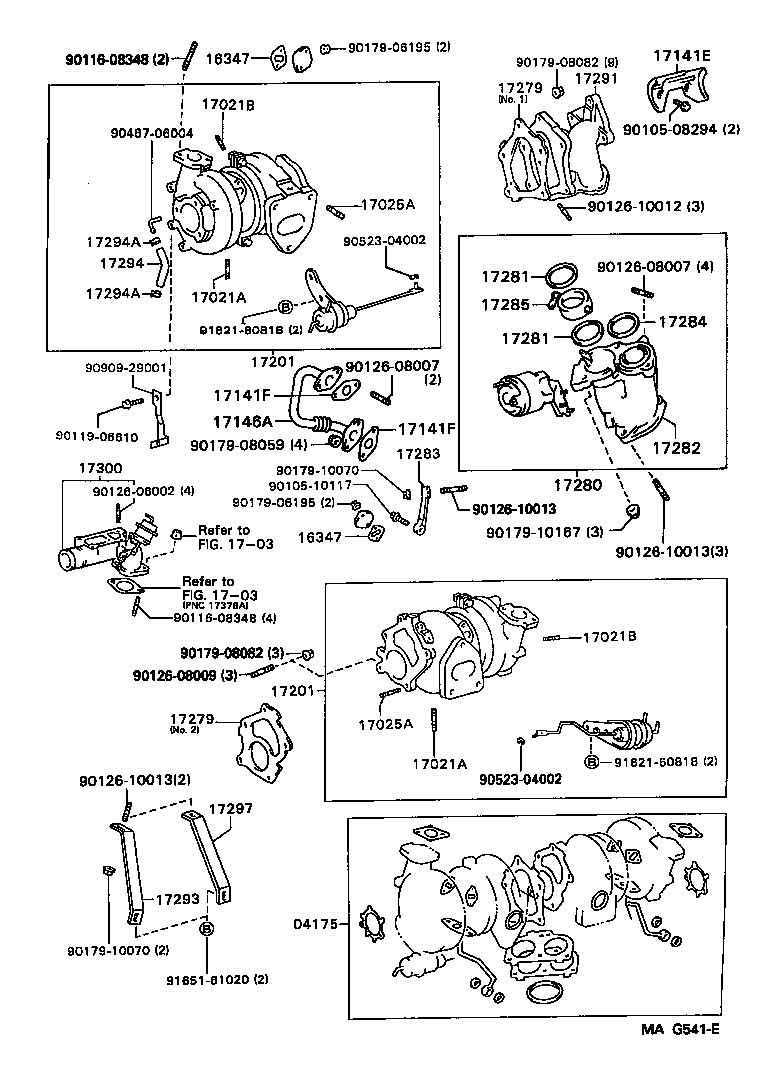

ILLUST NO. 2 OF 2(9305- )2JZGTE

 SUPRA |  MANIFOLD 04175 - GASKET KIT, TURBOCHARGER 16347 - GASKET, WATER BY-PASS 16347 - GASKET, WATER BY-PASS 17021A - BOLT, STUD(FOR BEARING HOUSING) 17021A - BOLT, STUD(FOR BEARING HOUSING) 17021B - BOLT, STUD 17021B - BOLT, STUD 17025A - BOLT, STUD(FOR TURBINE HOUSING) 17025A - BOLT, STUD(FOR TURBINE HOUSING) ** Refer Fig ** Refer Fig 17141E - PLATE, EXHAUST MANIFOLD 17141F - GASKET(FOR EXHAUST MANIFOLD PLATE) 17141F - GASKET(FOR EXHAUST MANIFOLD PLATE) 17146A - PIPE, EXHAUST BY-PASS 17201 - TURBOCHARGER SUB-ASSY 17201 - TURBOCHARGER SUB-ASSY 17279 - GASKET, TURBINE OUTLET ELBOW 17279 - GASKET, TURBINE OUTLET ELBOW 17280 - VALVE ASSY, EXHAUST GAS CONTROL 17281 - GASKET, EXHAUST GAS CONTROL VALVE 17281 - GASKET, EXHAUST GAS CONTROL VALVE 17282 - OUTLET, EXHAUST GAS CONTROL VALVE 17283 - STAY, EXHAUST GAS CONTROL VALVE OUTLET 17284 - GASKET, EXHAUST GAS CONTROL VALVE, NO.2 17285 - VALVE, EXHAUST GAS CONTROL 17291 - ELBOW, TURBINE OUTLET 17293 - STAY, TURBOCHARGER 17294 - HOSE, ACTUATOR 17294A - CLIP(FOR ACTUATOR HOSE) 17294A - CLIP(FOR ACTUATOR HOSE) 17297 - STAY, TURBOCHARGER, NO.2 17300 - VALVE ASSY, INTAKE AIR CONTROL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
