TOYOTA SUPRA JZA80L-AJPVZW / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

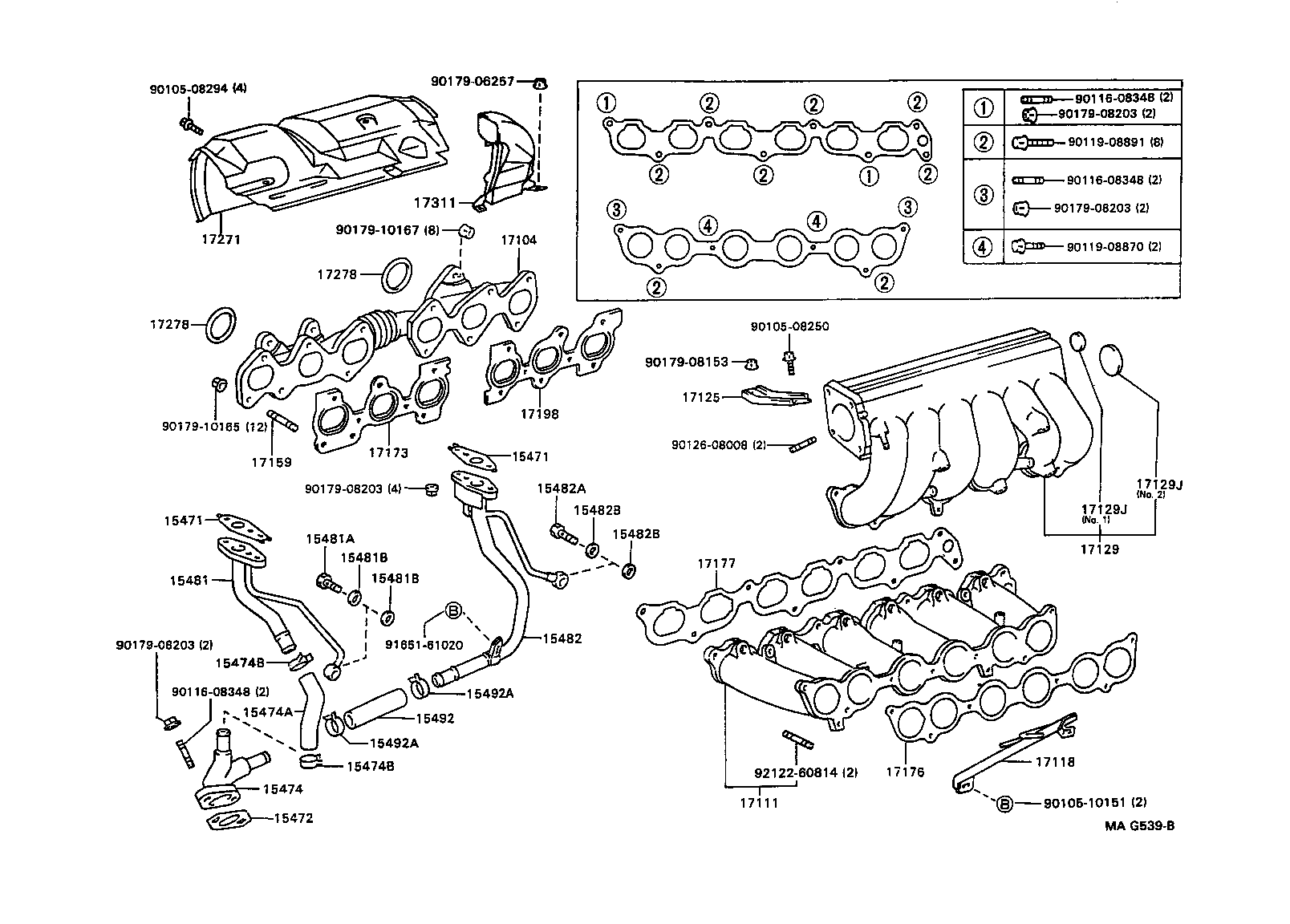

MANIFOLD

ILLUST NO. 1 OF 2(9305- )2JZGTE

 SUPRA |  MANIFOLD 15471 - GASKET, TURBO OIL INLET 15471 - GASKET, TURBO OIL INLET 15472 - GASKET, TURBO OIL OUTLET, NO.1 15474 - PIPE, TURBO OIL OUTLET 15474A - HOSE, TURBO OIL OUTLET 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 15481 - PIPE, TURBO OIL, NO.1 15481A - BOLT, UNION, NO.1 15481B - GASKET(FOR UNION BOLT NO.1) 15481B - GASKET(FOR UNION BOLT NO.1) 15482 - PIPE, TURBO OIL, NO.2 15482A - BOLT, UNION, NO.2 15482B - GASKET(FOR UNION BOLT NO.2) 15482B - GASKET(FOR UNION BOLT NO.2) 15492 - HOSE, TURBO OIL OUTLET, NO.2 15492A - CLIP(FOR TURBO OIL OUTLET HOSE NO.2) 15492A - CLIP(FOR TURBO OIL OUTLET HOSE NO.2) 17104 - MANIFOLD SUB-ASSY, EXHAUST, RH 17111 - MANIFOLD, INTAKE 17118 - STAY, MANIFOLD 17125 - STAY, SURGE TANK, NO.1 17129 - TANK, INTAKE AIR SURGE 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17198 - GASKET, EXHAUST MANIFOLD, NO.2 17271 - INSULATOR, TURBO, NO.1 17278 - GASKET, TURBO TO EXHAUST MANIFOLD 17278 - GASKET, TURBO TO EXHAUST MANIFOLD 17311 - DUCT, AIR INLET, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
