TOYOTA HIACE VAN COMUTER RZH113R-RBMREW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

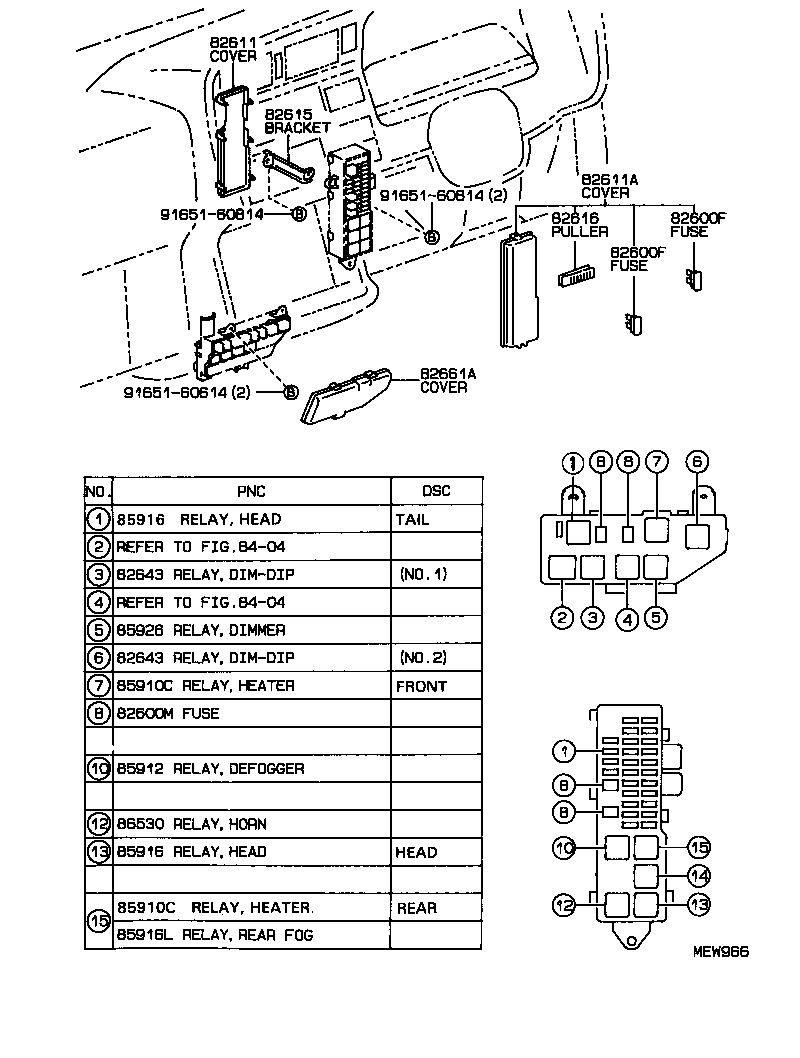

SWITCH RELAY COMPUTER

ILLUST NO. 4 OF 8(9308- )RHD

HIACE VAN COMUTER | SWITCH RELAY COMPUTER 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600M - FUSE, MEDIUM CURRENT 82611 - COVER, FUSE BLOCK 82611A - COVER, FUSE BLOCK, NO.2 82615 - BRACKET, FUSE 82616 - PULLER, FUSE 82643 - RELAY, DIM-DIP LAMP 82643 - RELAY, DIM-DIP LAMP 82661A - COVER, RELAY BLOCK, NO.2 ** Refer Fig ** Refer Fig 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85912 - RELAY, DEFOGGER 85916 - RELAY, LIGHT CONTROL 85916 - RELAY, LIGHT CONTROL 85916L - RELAY, REAR FOG LAMP 85926 - RELAY, HEADLAMP DIMMER 86530 - RELAY ASSY, HORN ** Std Part ** Std Part ** Std Part
