TOYOTA HIACE VAN COMUTER RZH103L-RRMNEW / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SEAT SEAT TRACK

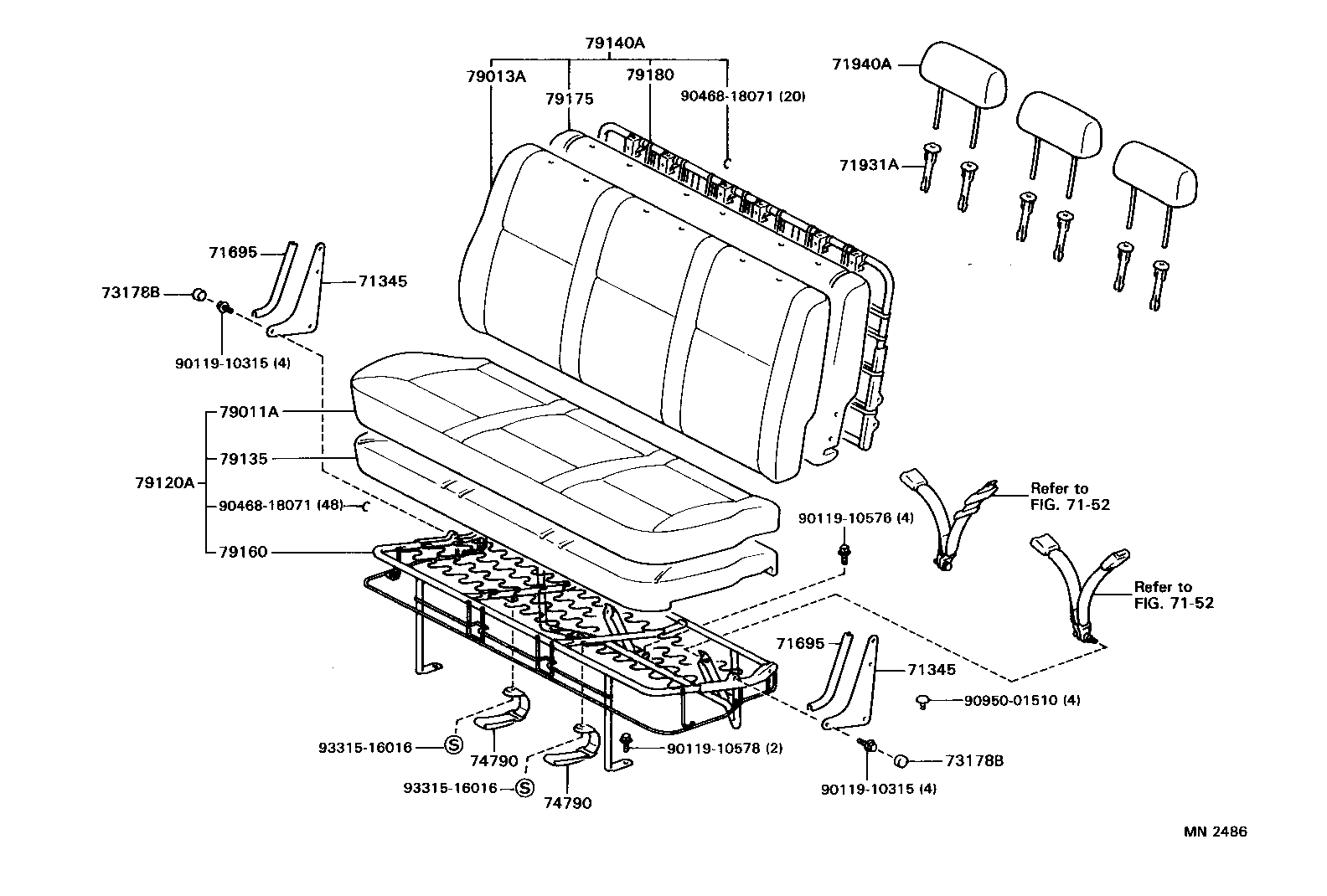

ILLUST NO. 2 OF 4(9308- )GL

HIACE VAN COMUTER | SEAT SEAT TRACK 71345 - HINGE, REAR SEAT BACK 71345 - HINGE, REAR SEAT BACK ** Refer Fig ** Refer Fig 71695 - PROTECTOR, REAR SEAT BACK 71695 - PROTECTOR, REAR SEAT BACK 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 73178B - CAP, SEAT BELT ANCHOR COVER 73178B - CAP, SEAT BELT ANCHOR COVER 74790 - HOLDER ASSY, WARNING REFLECTOR 74790 - HOLDER ASSY, WARNING REFLECTOR 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION 79013A - COVER SUB-ASSY, NO.1 SEAT BACK 79120A - CUSHION ASSY, NO.1 SEAT 79135 - PAD, NO.1 SEAT CUSHION 79140A - BACK ASSY, NO.1 SEAT 79160 - SPRING ASSY, NO.1 SEAT CUSHION 79175 - PAD, NO.1 SEAT BACK 79180 - SPRING ASSY, NO.1 SEAT BACK ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
