TOYOTA CELICA ST202R-BLMGFW / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

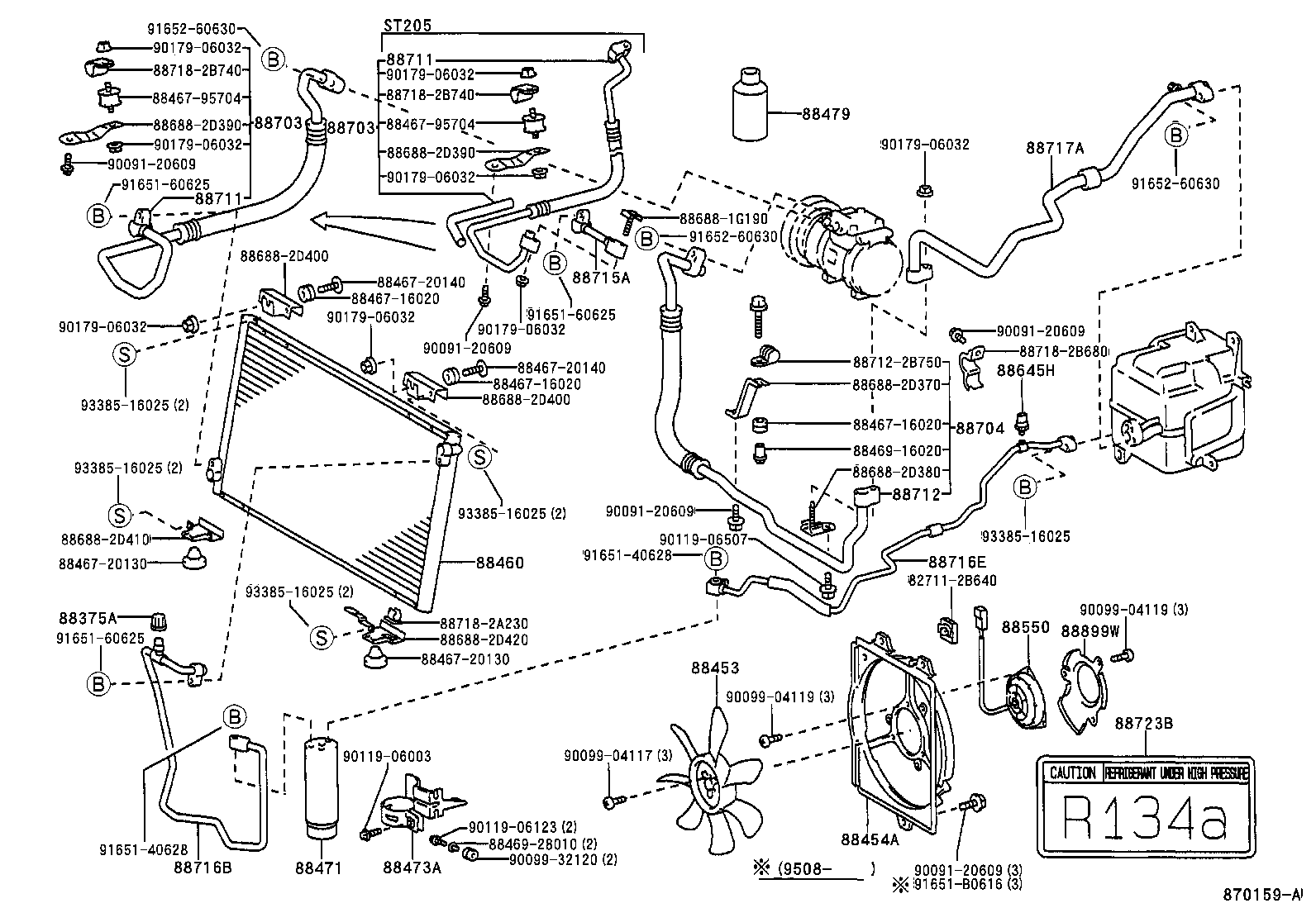

HEATING AIR CONDITIONING COOLER PIPING

DEALER OPTION ILLUST NO. 1 OF 2(9311- )RHD

 CELICA |  HEATING AIR CONDITIONING COOLER PIPING  ** Std Part 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88453 - FAN, COOLING (FOR CONDENSER) 88454A - SHROUD, FAN 88460 - CONDENSER ASSY, COOLER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 88471 - TANK, RECEIVER AIR CONDITIONER 88473A - HOLDER, RECEIVER 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) 88645H - SWITCH, PRESSURE NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 88703 - HOSE SUB-ASSY, DISCHARGE 88703 - HOSE SUB-ASSY, DISCHARGE 88704 - HOSE SUB-ASSY, SUCTION 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1  ** Std Part 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717A - PIPE, COOLER REFRIGERANT SUCTION, A  ** Std Part  ** Std Part  ** Std Part  ** Std Part 88723B - LABEL, COOLER SERVICE CAUTION 88899W - SUPPORT SUB-ASSY, B  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
