TOYOTA LAND CRUISER 80 FZJ80L-GNPEKA / POWERTRAIN-CHASSIS / FRONT AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

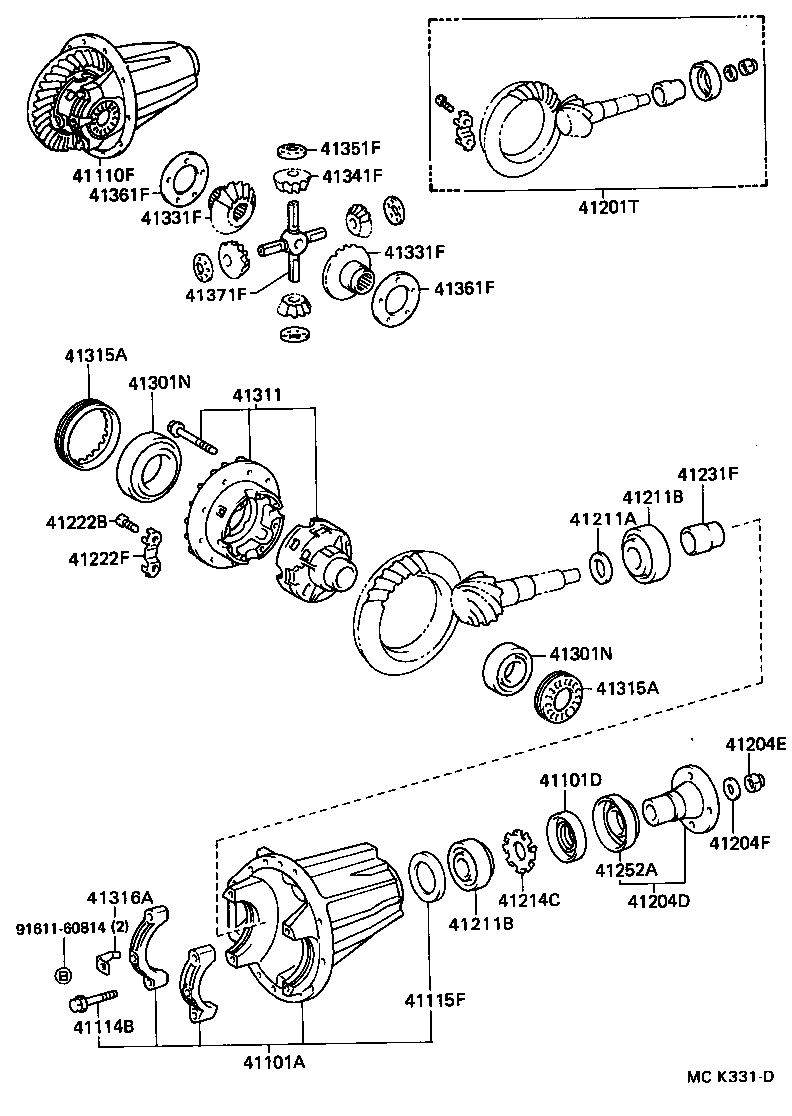

FRONT AXLE HOUSING DIFFERENTIAL

W(DIFFERENTIAL LOCK) ILLUST NO. 2 OF 3(9208- )

 LAND CRUISER 80 |  FRONT AXLE HOUSING DIFFERENTIAL 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP 41115F - RING, FRONT DIFFERENTIAL OIL STORAGE 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) 41204F - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT) 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) 41301N - BEARING(FOR FRONT DIFFERENTIAL CASE) 41301N - BEARING(FOR FRONT DIFFERENTIAL CASE) 41311 - CASE, FRONT DIFFERENTIAL 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING 41316A - LOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT 41331F - GEAR, FRONT DIFFERENTIAL SIDE 41331F - GEAR, FRONT DIFFERENTIAL SIDE 41341F - PINION, FRONT DIFFERENTIAL 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 41371F - SPIDER, FRONT DIFFERENTIAL  ** Std Part
