TOYOTA CRESSIDA MX81L-AEPQEV / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

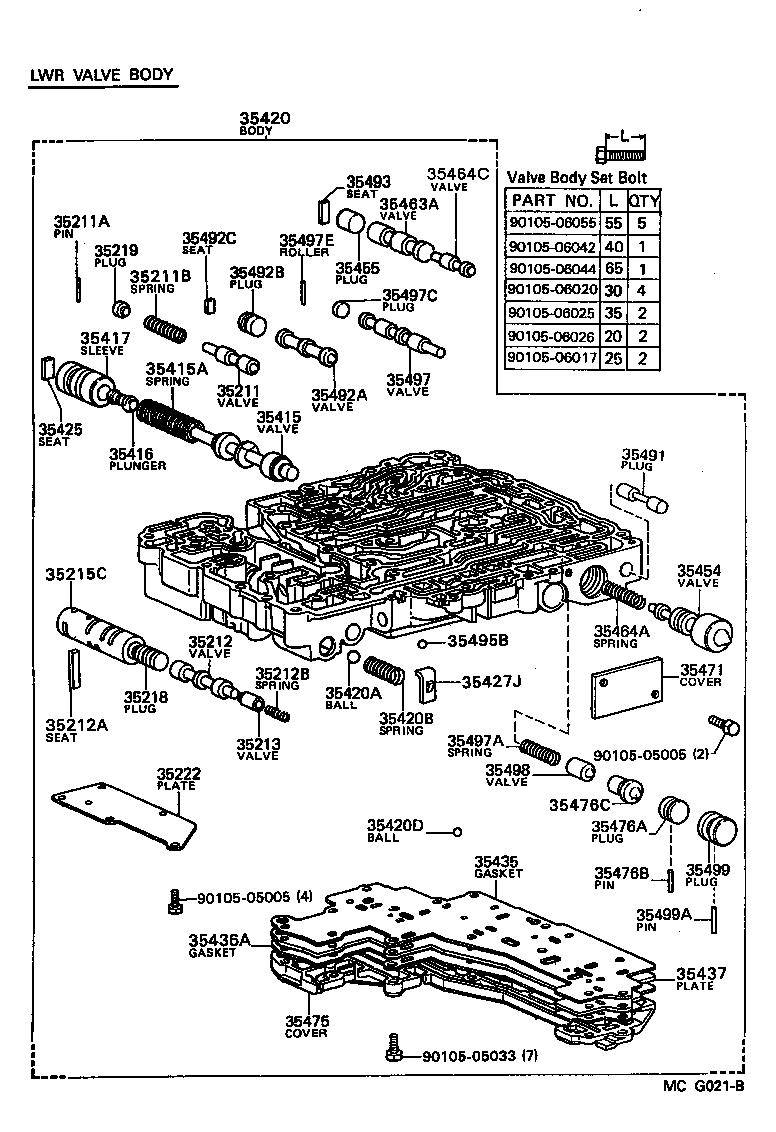

VALVE BODY OIL STRAINER ATM

A43DL ILLUST NO. 3 OF 3(8808-9302)MX81..4FC

 CRESSIDA |  VALVE BODY OIL STRAINER ATM 35211 - VALVE, LOCK UP SIGNAL 35211A - PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE) 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) 35212 - VALVE, LOCK UP RELAY 35212A - SEAT, PLUG (FOR LOCK UP RELAY VALVE) 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) 35213 - VALVE, LOCK UP RELAY CONTROL 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 35218 - PLUG, LOCK UP RELAY VALVE 35219 - PLUG, LOCK UP SIGNAL VALVE 35222 - PLATE, LOCK UP RELAY VALVE BODY 35415 - VALVE, PRESSURE REGULATOR 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 35417 - SLEEVE, PRESSURE REGULATOR VALVE 35420 - BODY ASSY, LOWER VALVE 35420A - BALL (FOR PRESSURE RELIEF) 35420B - SPRING (FOR PRESSURE RELIEF) 35420D - BALL (FOR LOWER VALVE BODY) 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE 35427J - SEAT, CHECK VALVE SPRING (FOR PRESSURE RELIEF) 35435 - GASKET, VALVE BODY PLATE, NO.3 35436A - GASKET, VALVE BODY PLATE, NO.4 35437 - PLATE, 3-4 SHIFT VALVE SEPARATOR 35454 - VALVE, LOW COAST SHIFT 35455 - PLUG, 1-2 SHIFT VALVE LOW 35463A - VALVE, 1-2 SHIFT, LOWER 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) 35464C - VALVE, 1-2 SHIFT, UPPER 35471 - COVER, VALVE BODY, NO.1 35475 - COVER, VALVE BODY, NO.5 35476A - PLUG, STRAIGHT (FOR 3RD COAST SHIFT) 35476B - PIN, LOCATING (FOR 3RD COAST SHIFT) 35476C - VALVE, 3RD COAST 35491 - PLUG, REVERSE BRAKE 35492A - VALVE, MANUAL DOWN TIMING 35492B - PLUG (FOR MANUAL DOWN TIMING VALVE) 35492C - SEAT, VALVE (FOR MANUAL DOWN TIMING VALVE) 35493 - SEAT, SHIFT VALVE SPRING 35495B - BALL, CHECK, NO.1 35497 - VALVE, 3-4 SHIFT 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) 35497C - PLUG (FOR 3-4 SHIFT VALVE) 35497E - ROLLER, NEEDLE (FOR 3-4 SHIFT VALVE) 35498 - VALVE, 3-4 COAST SHIFT 35499 - PLUG, 3-4 SHIFT VALVE 35499A - PIN, STRAIGHT (FOR 3-4 SHIFT VALVE)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
