TOYOTA HIACE VAN COMUTER LH102R-RBMRSW / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

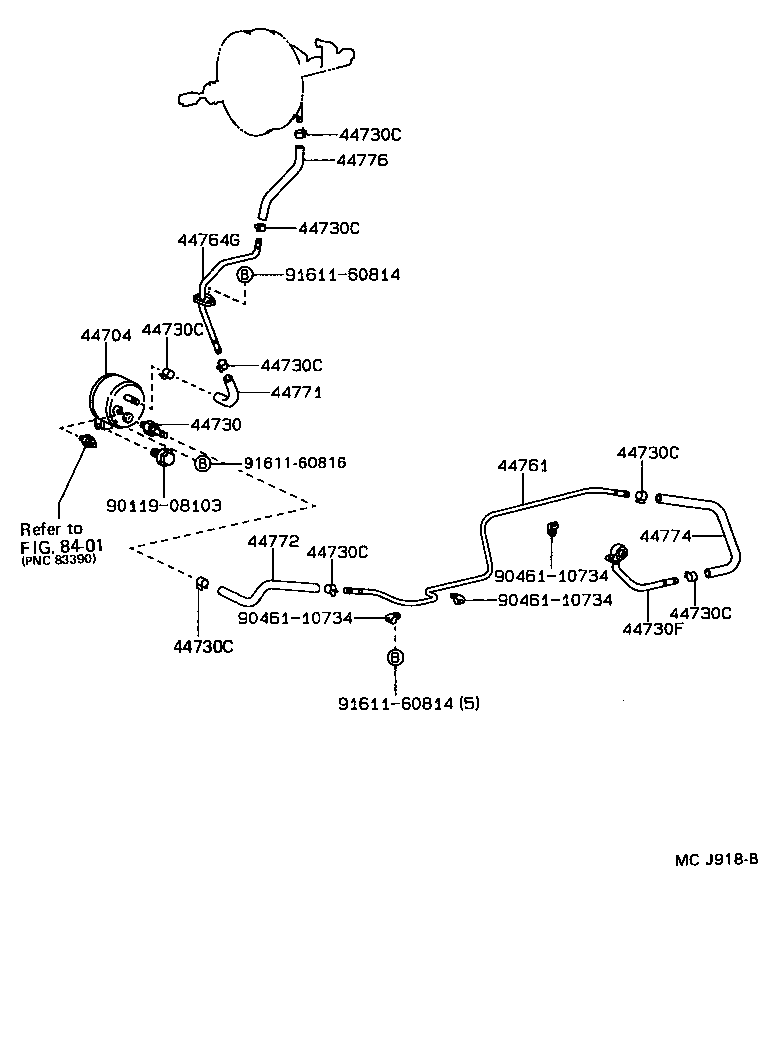

BRAKE BOOSTER VACUUM TUBE

ILLUST NO. 2 OF 2(8908- )LH102,112..RHD

HIACE VAN COMUTER | BRAKE BOOSTER VACUUM TUBE 44704 - RESERVOIR SUB-ASSY, VACUUM 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER 44771 - HOSE, VACUUM TUBE CONNECTOR 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE 44774 - HOSE, UNION TO CONNECTOR TUBE 44776 - HOSE, BRAKE BOOSTER ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
