TOYOTA HIACE VAN COMUTER LH102R-RBMRSW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

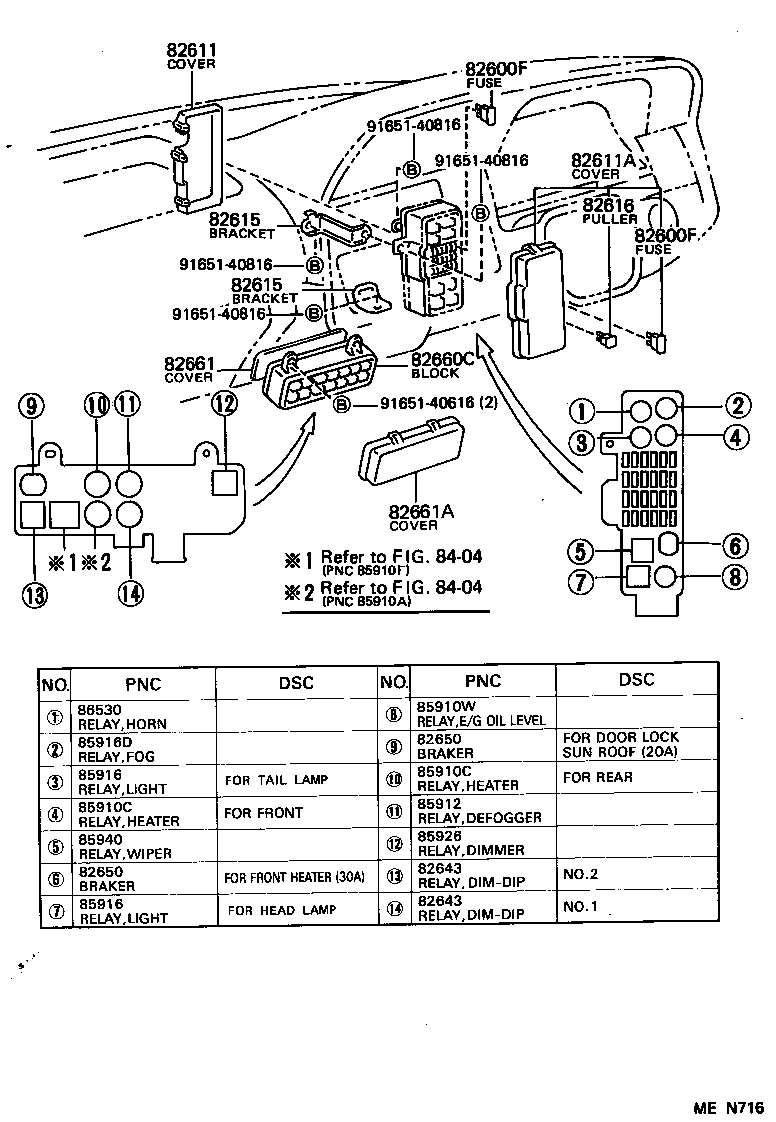

ILLUST NO. 4 OF 8(8908-9308)RHD

HIACE VAN COMUTER | SWITCH RELAY COMPUTER 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82611 - COVER, FUSE BLOCK 82611A - COVER, FUSE BLOCK, NO.2 82615 - BRACKET, FUSE 82615 - BRACKET, FUSE 82616 - PULLER, FUSE 82643 - RELAY, DIM-DIP LAMP 82643 - RELAY, DIM-DIP LAMP 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 82660C - BLOCK ASSY, RELAY 82661 - COVER, RELAY BLOCK, NO.1 82661A - COVER, RELAY BLOCK, NO.2 ** Refer Fig ** Refer Fig 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85910W - RELAY, OIL LEVEL 85912 - RELAY, DEFOGGER 85916 - RELAY, LIGHT CONTROL 85916 - RELAY, LIGHT CONTROL 85916D - RELAY, FOG LAMP 85926 - RELAY, HEADLAMP DIMMER 85940 - RELAY ASSY, WINDSHIELD WIPER 86530 - RELAY ASSY, HORN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
