TOYOTA STARLET NP70L-PGMDSW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

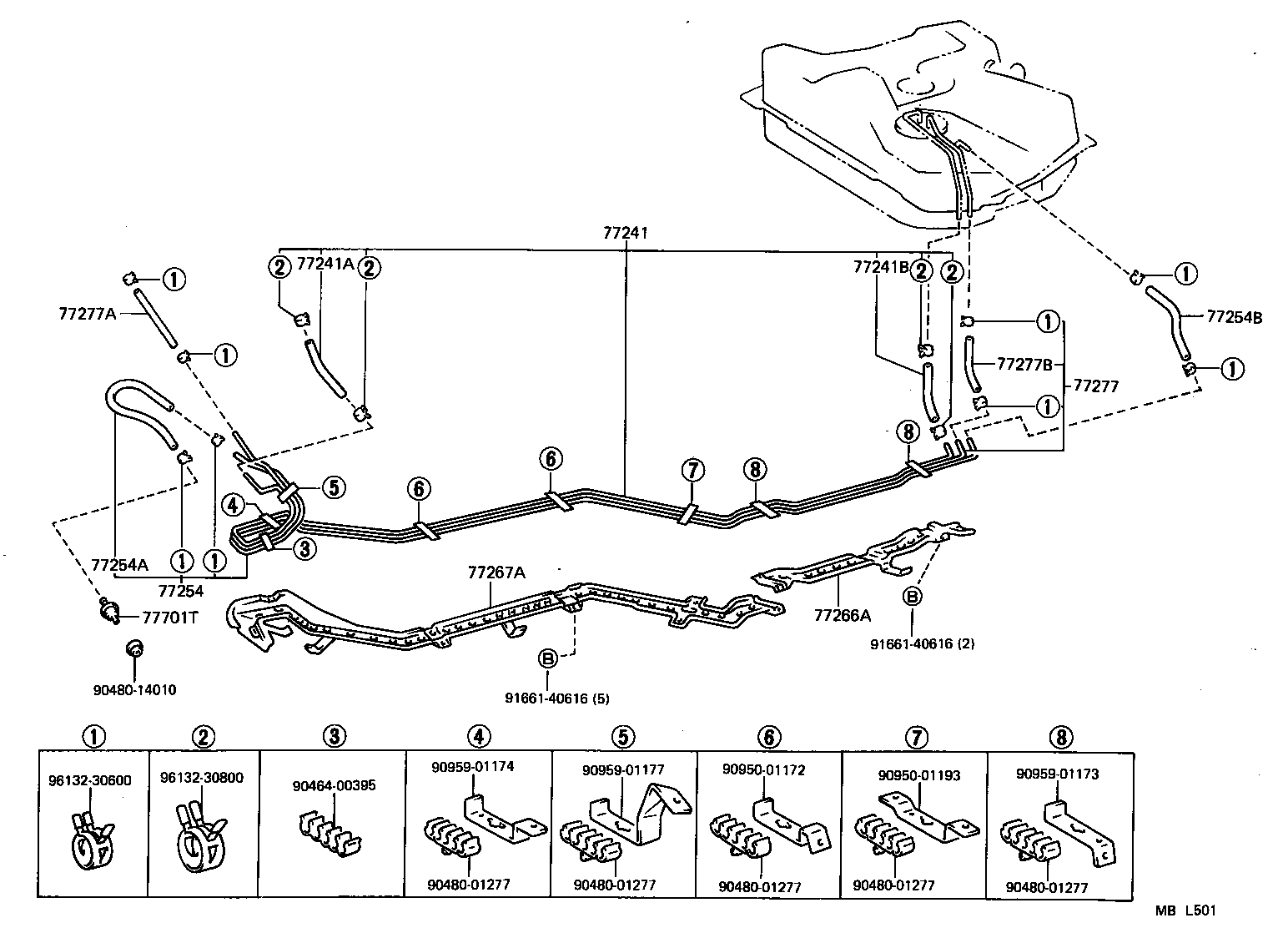

FUEL TANK TUBE

ILLUST NO. 2 OF 2(8612- )NP70

 STARLET |  FUEL TANK TUBE 77241 - TUBE, FUEL MAIN, NO.1 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) 77254 - TUBE, FUEL EMISSION, NO.1 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) 77266A - PROTECTOR, FUEL TUBE, NO.1 77267A - PROTECTOR, FUEL TUBE, NO.2 77277 - TUBE, FUEL RETURN, NO.1 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) 77701T - VALVE, CHECK (FOR MAIN FUEL TANK)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
