TOYOTA HIACE RH20LB-JR / ELECTRICAL / HEATING AIR CONDITIONING COMPRESSOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

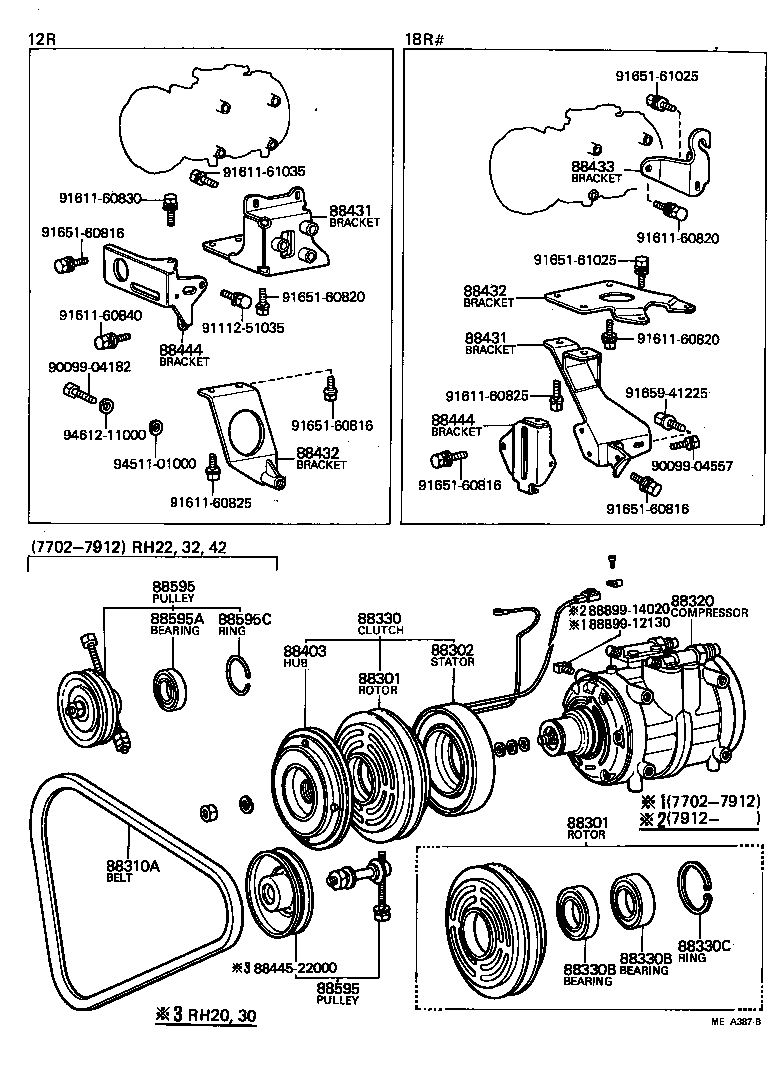

HEATING AIR CONDITIONING COMPRESSOR

(7702-7912)RH22,42 ; (7702-7912)RH20,3#..RHD ; (

 HIACE |  HEATING AIR CONDITIONING COMPRESSOR 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH 88302 - STATOR SUB-ASSY, MAGNET CLUTCH 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 88320 - COMPRESSOR ASSY, COOLER 88330 - CLUTCH ASSY, MAGNET 88330B - BEARING, MAGNET CLUTCH 88330B - BEARING, MAGNET CLUTCH 88330C - RING, SNAP (FOR MAGNET CLUTCH) 88403 - HUB SUB-ASSY, MAGNET CLUTCH 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 88433 - BRACKET, COMPRESSOR MOUNTING, NO.3 88444 - BRACKET, IDLE PULLEY 88444 - BRACKET, IDLE PULLEY  ** Std Part 88595 - PULLEY, COOLER COMPRESSOR IDLE 88595 - PULLEY, COOLER COMPRESSOR IDLE 88595A - BEARING (FOR COOLER IDLE PULLEY) 88595C - RING, SNAP (FOR COOLER IDLE PULLEY)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
