LEXUS SC300 400 UZZ30L-ACPZKA / TOOL-ENGINE-FUEL / EXHAUST GAS RECIRCULATION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

EXHAUST GAS RECIRCULATION SYSTEM

(9508- )1UZFE..4FC

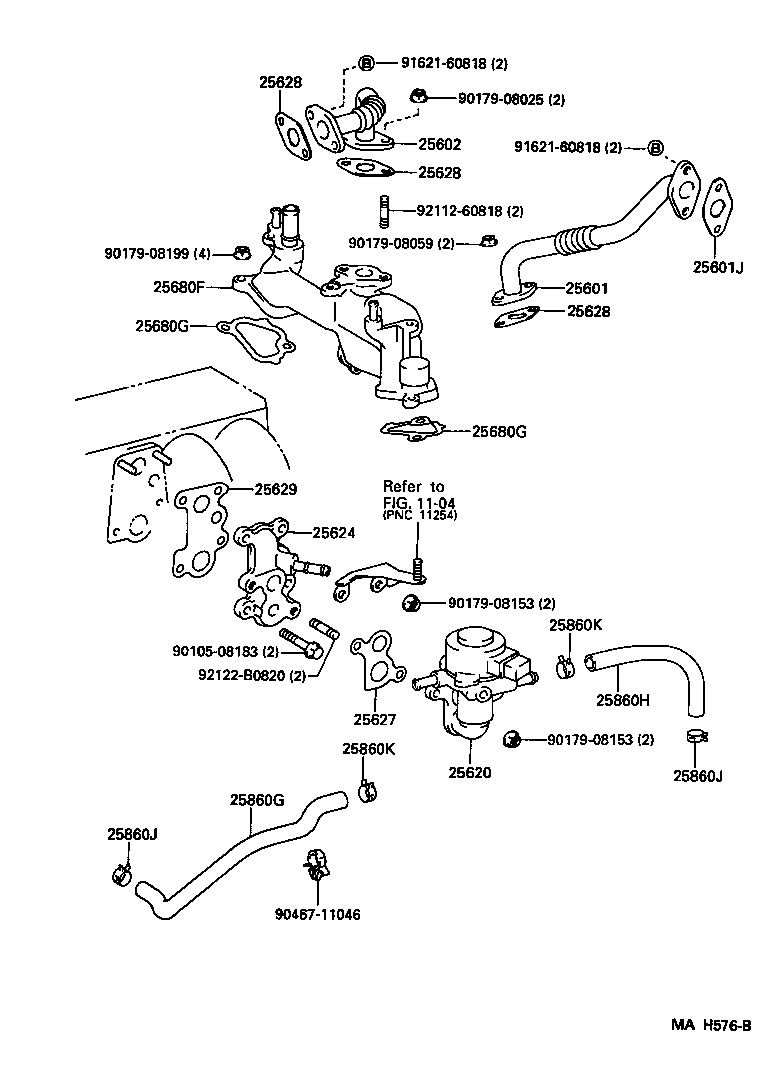

 SC300 400 |  EXHAUST GAS RECIRCULATION SYSTEM ** Refer Fig 25601 - PIPE SUB-ASSY, EGR, NO.1 25601J - GASKET(FOR EGR PIPE, NO.1) 25602 - PIPE SUB-ASSY, EGR, NO.2 25620 - VALVE ASSY, EGR 25624 - ADAPTER, EGR VALVE 25627 - GASKET, EGR VALVE 25628 - GASKET, EGR INLET 25628 - GASKET, EGR INLET 25628 - GASKET, EGR INLET 25629 - GASKET, EGR VALVE ADAPTER 25680F - COOLER SUB-ASSY, EGR 25680G - GASKET, WATER OUTLET 25680G - GASKET, WATER OUTLET 25860G - HOSE, WATER BY-PASS HOSE NO.1(FOR EGR COOLER) 25860H - HOSE, WATER BY-PASS HOSE NO.2(FOR EGR COOLER) 25860J - HOSE, CLIP NO.1(FOR EGR COOLER) 25860J - HOSE, CLIP NO.1(FOR EGR COOLER) 25860K - HOSE, CLIP NO.2(FOR EGR COOLER) 25860K - HOSE, CLIP NO.2(FOR EGR COOLER)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
