RADIATOR WATER OUTLET

ILLUST NO. 1 OF 3(9508-9709)1UZFE

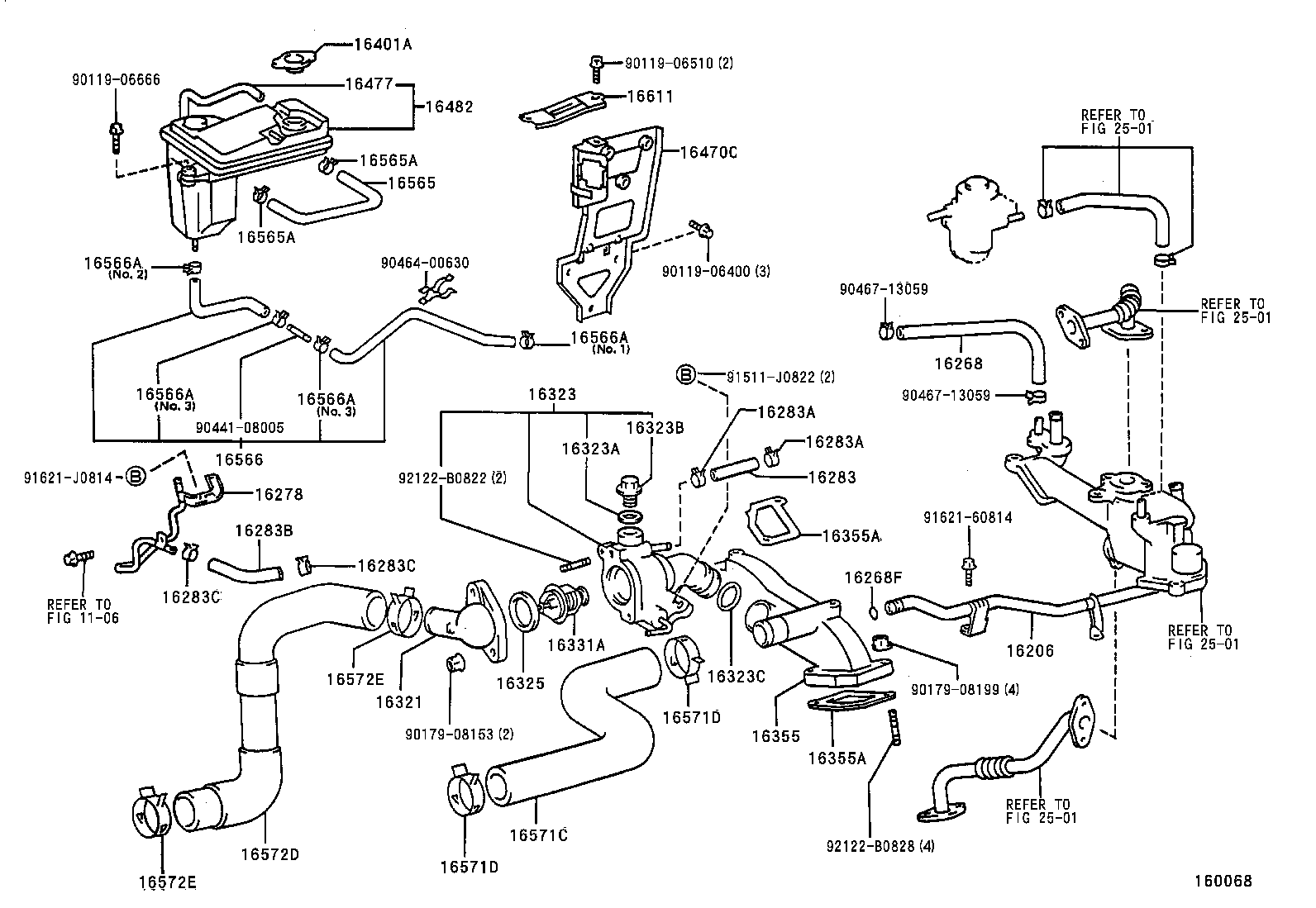

 SC300 400 |  RADIATOR WATER OUTLET ** Refer Fig 16206 - PIPE SUB-ASSY, WATER BY-PASS 16268 - PIPE, WATER BY-PASS, NO.1 16268F - RING, O(FOR WATER BY-PASS PIPE) 16278 - PIPE, WATER BY-PASS, NO.2 16283 - HOSE, WATER BY-PASS, NO.6 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16283B - HOSE, WATER BY-PASS 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) 16321 - INLET, WATER 16323 - HOUSING, WATER INLET 16323A - GASKET(FOR WATER INLET HOUSING) 16323B - PLUG(FOR WATER INLET HOUSING) 16323C - RING, O(FOR WATER INLET HOUSING) 16325 - GASKET, WATER INLET HOUSING, NO.1 16331A - THERMOSTAT 16355 - JOINT, WATER BY-PASS, FRONT 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK 16470C - BRACKET(FOR RADIATOR RESERVE TANK) 16477 - PIPE(FOR RADIATOR RESERVE TANK) 16482 - TANK SUB-ASSY, RADIATOR RESERVE 16565 - HOSE, RESERVE TANK INLET 16565A - CLIP 16565A - CLIP 16566 - HOSE, RESERVE TANK OUTLET 16566A - CLIP(FOR RESERVE TANK OUTLET) 16566A - CLIP(FOR RESERVE TANK OUTLET) 16566A - CLIP(FOR RESERVE TANK OUTLET) 16566A - CLIP(FOR RESERVE TANK OUTLET) 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16572D - HOSE, RADIATOR, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16611 - BRACKET, RADIATOR RESERVE TANK ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
