LEXUS LS400 UCF20L-AEPGKA / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

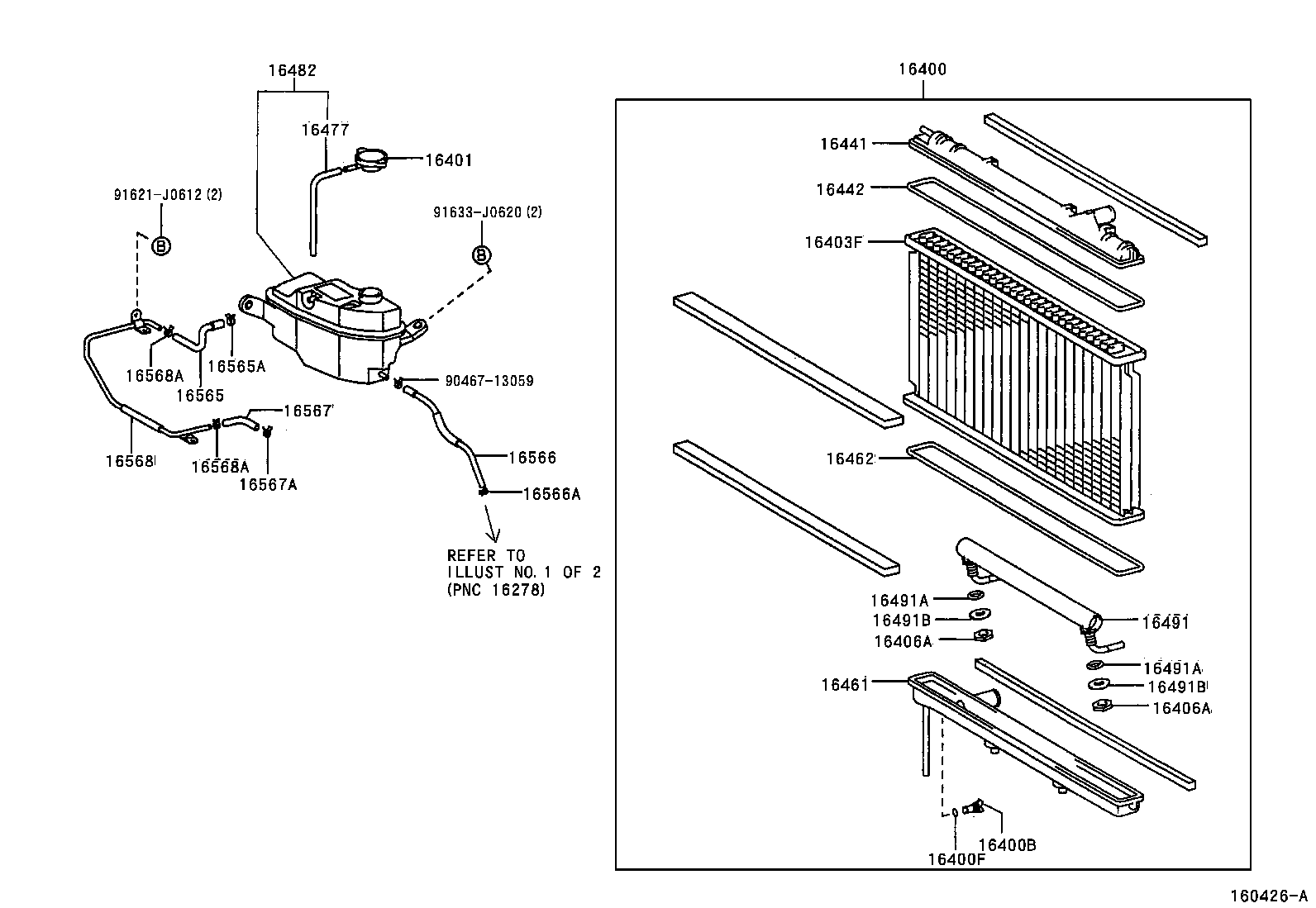

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(9410- )

 LS400 |  RADIATOR WATER OUTLET 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16401 - CAP SUB-ASSY, RADIATOR 16403F - CORE SUB-ASSY, RADIATOR 16406A - SUPPORT(FOR OIL COOLER) 16406A - SUPPORT(FOR OIL COOLER) 16441 - TANK, RADIATOR, UPPER 16442 - RING, O(FOR RADIATOR UPPER TANK) 16461 - TANK, RADIATOR, LOWER 16462 - RING, O(FOR RADIATOR LOWER TANK) 16477 - PIPE(FOR RADIATOR RESERVE TANK) 16482 - TANK SUB-ASSY, RADIATOR RESERVE 16491 - COOLER, OIL(FOR ATM) 16491A - RING, O(FOR ATM OIL COOLER) 16491A - RING, O(FOR ATM OIL COOLER) 16491B - WASHER, PLATE(FOR ATM OIL COOLER) 16491B - WASHER, PLATE(FOR ATM OIL COOLER) 16565 - HOSE, RESERVE TANK INLET 16565A - CLIP 16566 - HOSE, RESERVE TANK OUTLET 16566A - CLIP(FOR RESERVE TANK OUTLET) 16567 - HOSE(FOR RADIATOR RESERVE TANK) 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) 16568 - PIPE, RADIATOR TO RESERVE TANK 16568A - CLIP(FOR RADIATOR RESERVE TANK PIPE) 16568A - CLIP(FOR RADIATOR RESERVE TANK PIPE)  ** Std Part  ** Std Part  ** Std Part
