LEXUS GS GS HYBRID AWL10L-BEXQH / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

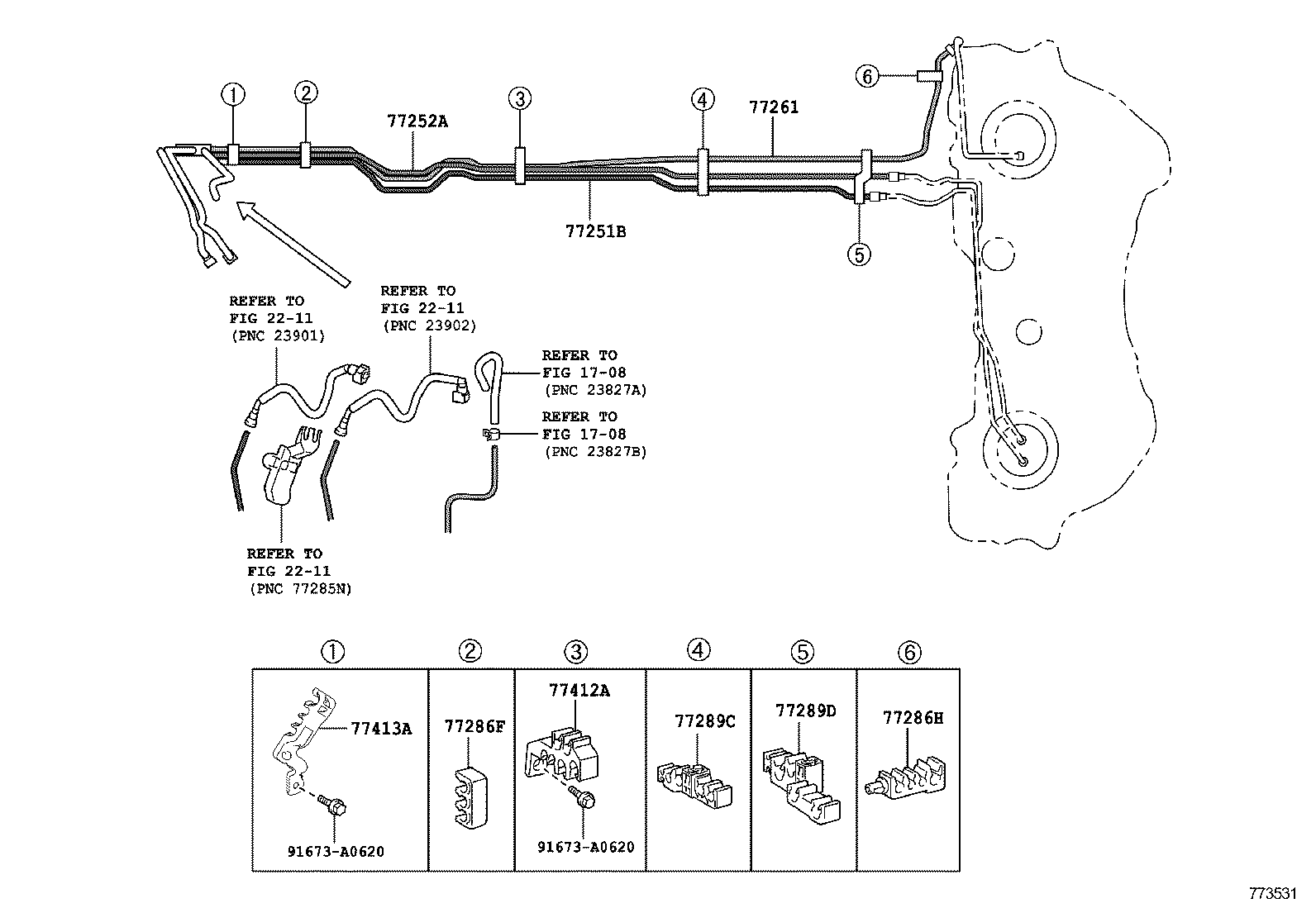

FUEL TUBE ILLUST NO. 2 OF 2(1309- )AWL10..LHD

GS GS HYBRID | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77251B - TUBE, FUEL MAIN 77252A - TUBE, FUEL MAIN, NO.2 77261 - TUBE SUB-ASSY, FUEL EMISSION 77286F - CLAMP, FUEL TUBE, NO.2 77286H - CLAMP, FUEL TUBE, NO.3 77289C - CLAMP, FUEL TUBE, NO.4 77289D - CLAMP, FUEL TUBE, NO.5 77412A - SUPPORT, FUEL TUBE GROMMET, NO.2 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 ** Std Part ** Std Part
