LEXUS IS250 350 300H GSE30R-AETLHQ / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

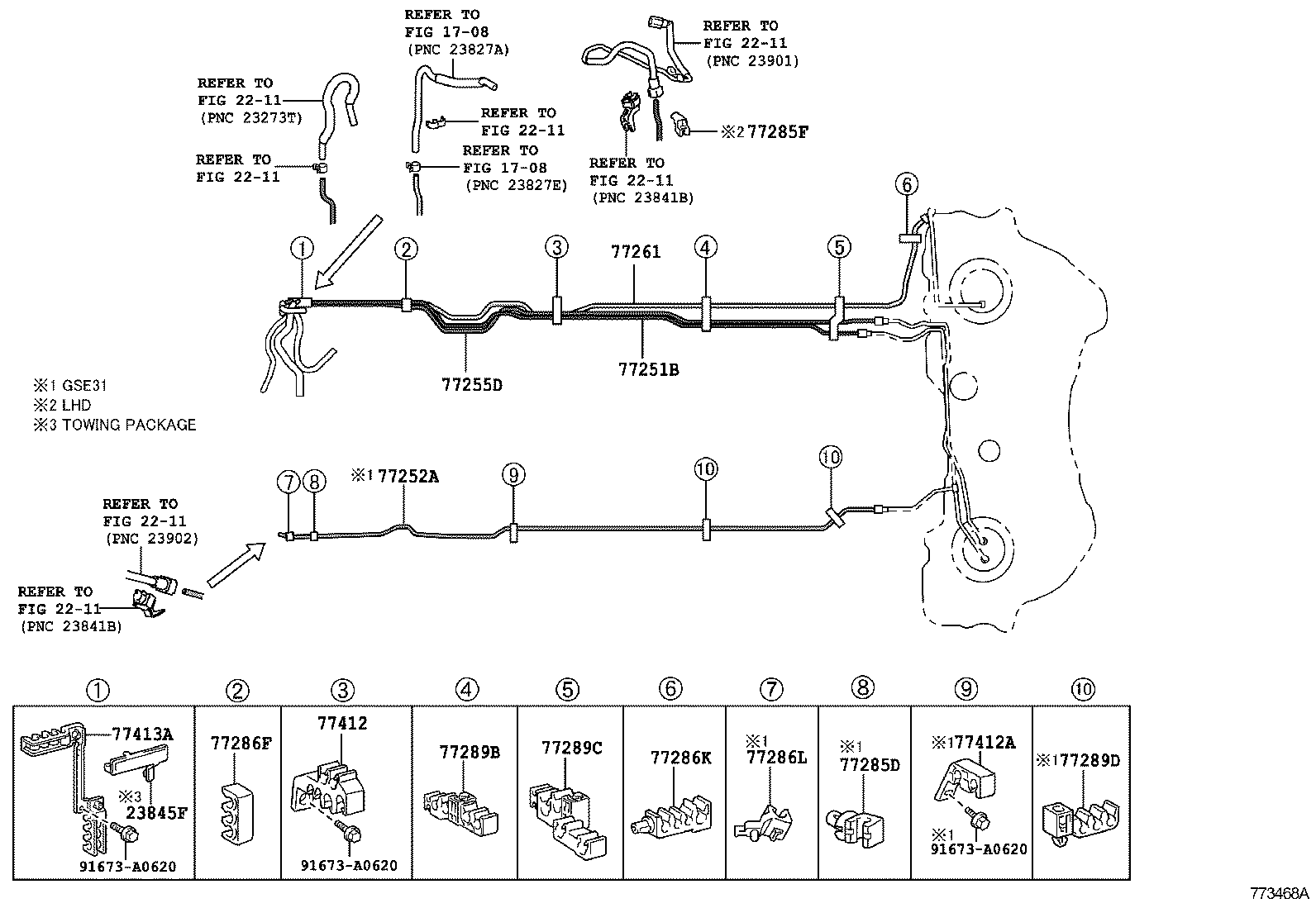

FUEL TUBE ILLUST NO. 2 OF 3(1304- )GSE3#

IS250 350 300H | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 23845F - INSULATOR, FUEL PIPE 77251B - TUBE, FUEL MAIN 77252A - TUBE, FUEL MAIN, NO.2 77255D - TUBE, FUEL RETURN 77261 - TUBE SUB-ASSY, FUEL EMISSION 77285D - CLAMP, FUEL TUBE, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77286F - CLAMP, FUEL TUBE, NO.2 77286K - CLAMP, FUEL TUBE, NO.2 77286L - CLAMP, FUEL TUBE, NO.5 77289B - CLAMP, FUEL TUBE, NO.3 77289C - CLAMP, FUEL TUBE, NO.4 77289D - CLAMP, FUEL TUBE, NO.5 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 77412A - SUPPORT, FUEL TUBE GROMMET, NO.2 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 ** Std Part ** Std Part ** Std Part
