LEXUS IS250 350 300H GSE30R-AETLHQ / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

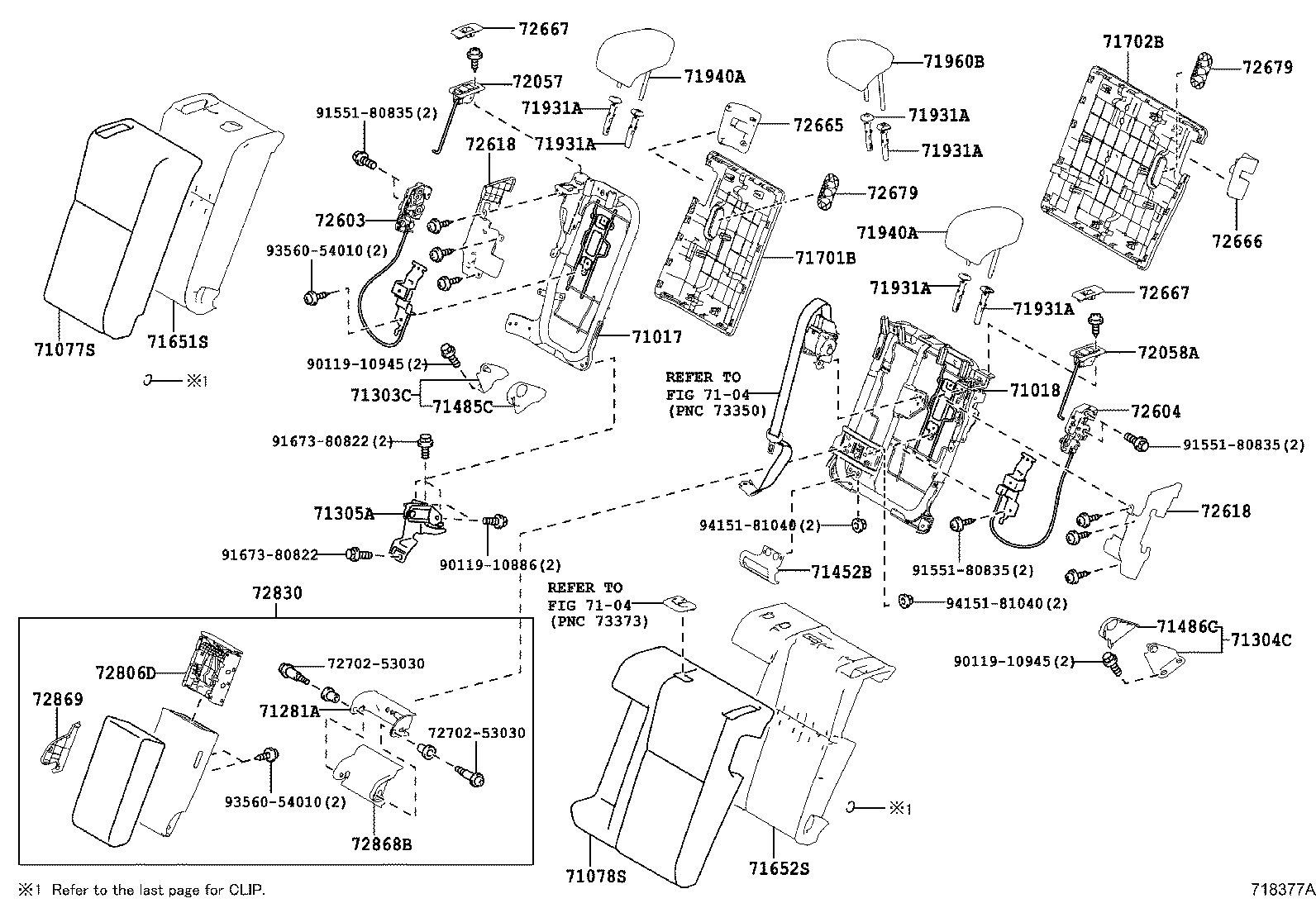

REAR SEAT SEAT TRACK

FOLD TYPE(SEAT BACK) ILLUST NO. 2 OF 2(1304- )

IS250 350 300H | REAR SEAT SEAT TRACK 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH ** Refer Fig ** Refer Fig 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71281A - HINGE, REAR SEAT CENTER ARMREST 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER 71452B - BRACKET, REAR SEAT BACK 71485C - COVER, REAR SEAT HINGE, RH 71486C - COVER, REAR SEAT HINGE, LH 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71940A - HEADREST ASSY, REAR SEAT 71960B - HEADREST ASSY, REAR SEAT, CENTER 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH 72618 - PROTECTOR, REAR SEAT BACK LOCK STRIKER 72618 - PROTECTOR, REAR SEAT BACK LOCK STRIKER 72665 - COVER, REAR SEAT BACK LOCK, RH 72666 - COVER, REAR SEAT BACK LOCK, LH 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL ** Std Part ** Std Part 72806D - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP 72830 - ARMREST ASSY, REAR SEAT, CENTER 72868B - COVER, CENTER ARMREST HINGE 72869 - COVER, CENTER ARMREST HINGE, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
