LEXUS IS250 350 300H GSE30R-AETLHQ / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT DOOR PANEL GLASS

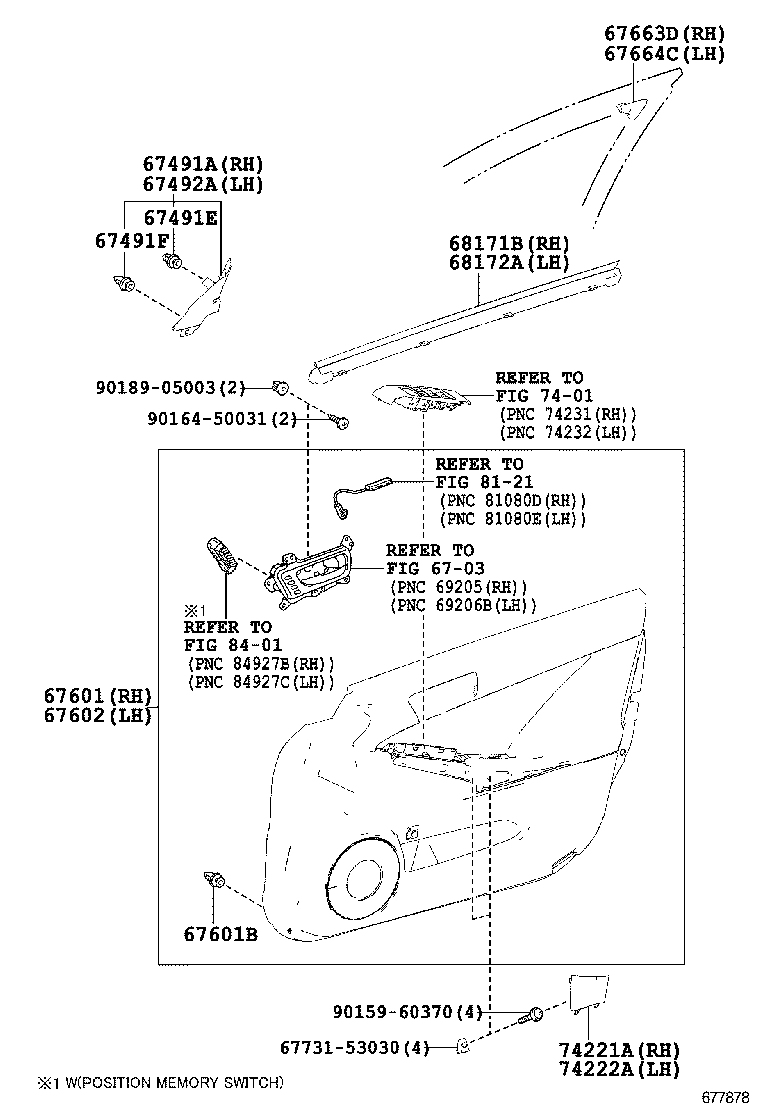

DOOR TRIM ILLUST NO. 2 OF 2(1304- )

 IS250 350 300H |  FRONT DOOR PANEL GLASS ** Refer Fig 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH 67491E - RETAINER, DOOR TRIM 67491F - CLIP(FOR DOOR TRIM) 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH 67663D - GARNISH, DOOR FRAME, RH 67664C - GARNISH, DOOR FRAME, LH  ** Std Part 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH ** Refer Fig 74221A - COVER, FRONT DOOR ARMREST, RH 74222A - COVER, FRONT DOOR ARMREST, LH ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part
