LEXUS IS250 350 300H GSE30R-AETLHQ / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INSTRUMENT PANEL GLOVE COMPARTMENT

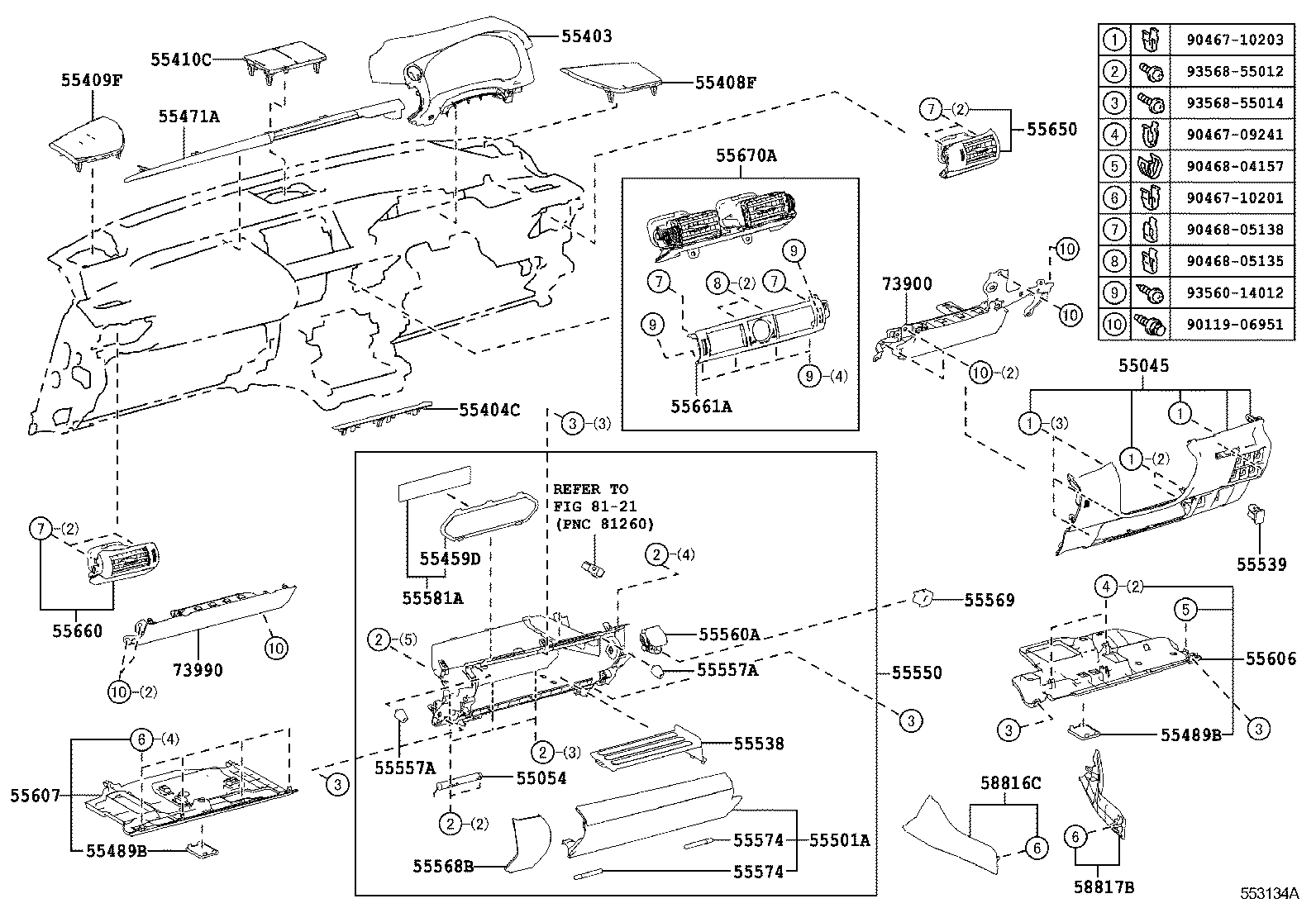

ILLUST NO. 2 OF 2(1304- )ARL

IS250 350 300H | INSTRUMENT PANEL GLOVE COMPARTMENT 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR 55403 - HOOD SUB-ASSY, METER 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH 55459D - COVER, INSTRUMENT, LOWER LH 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL 55489B - LENS, FRONT FOOT LAMP, NO.2 55489B - LENS, FRONT FOOT LAMP, NO.2 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT 55538 - RETAINER,GLOVE COMPARTMENT 55539 - COVER, SPARE SWITCH HOLE 55550 - DOOR ASSY, GLOVE COMPARTMENT 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE 55581A - COMPARTMENT, GLOVE 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 55661A - BEZEL, INSTRUMENT PANEL REGISTER 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER 58816C - INSERT, CONSOLE BOX, FRONT NO.1 58817B - INSERT, CONSOLE BOX, FRONT NO.2 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
