LEXUS LS600H 600HL UVF45R-AEXGHW / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SEAT SEAT TRACK

POWER SEAT(SEAT BACK)LH-W(OTTOMAN) (0704-0809)RHD

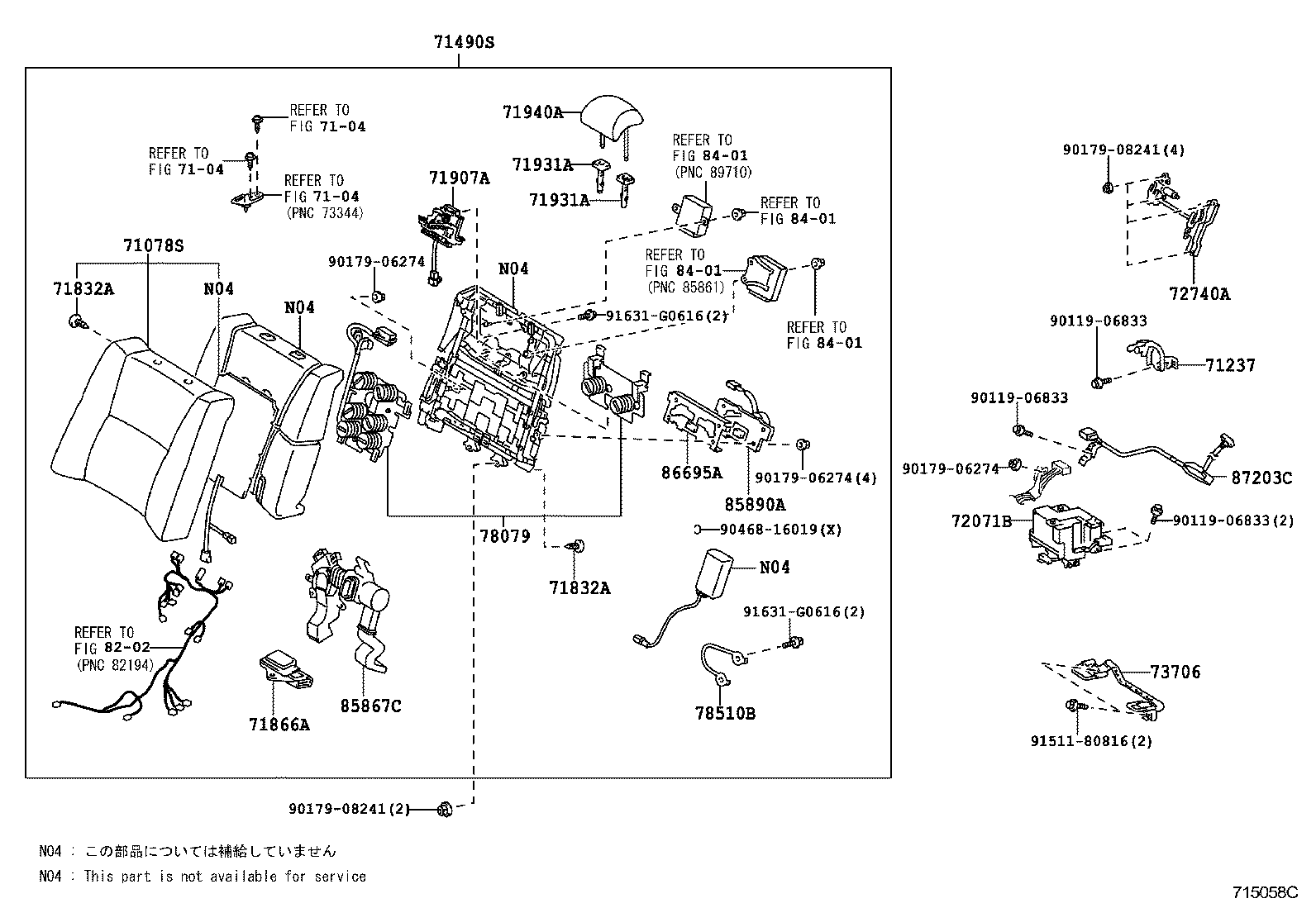

LS600H 600HL | REAR SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71237 - BRACKET, REAR SEAT 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) 71832A - CLIP, REAR SEAT BACK CARPET OR MAT 71832A - CLIP, REAR SEAT BACK CARPET OR MAT 71866A - BEZEL, REAR SEAT COVER, NO.2 71907A - ADJUSTER SUB-ASSY, REAR SEAT HEADREST, NO.1 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72071B - PUMP SUB-ASSY, LUMBER SUPPORT 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH 78079 - PLATE SUB-ASSY, SUB SEAT BACK 78510B - CABLE ASSY, STOP ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85867C - BLOWER, REAR SEAT BACK CLIMATE CONTROL, LH 85890A - VIBRATOR ASSY, SEAT 86695A - PLATE, VIBRATOR 87203C - DUCT, SUB-ASSY AIR, REAR, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
