LEXUS LFA LFA10L-FCRAFW / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

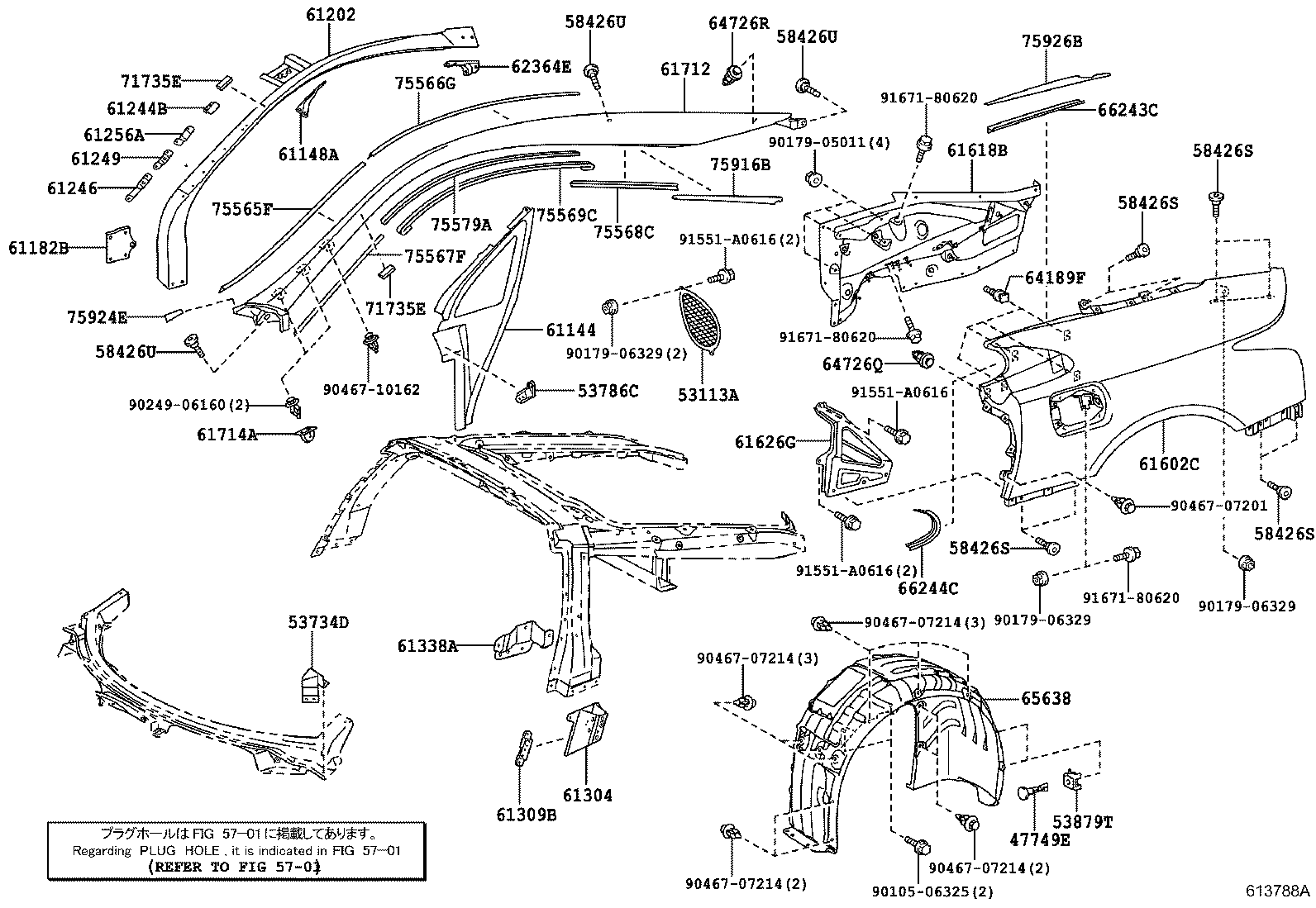

SIDE MEMBER

LH ILLUST NO. 2 OF 3(1012- )

LFA | SIDE MEMBER 47749E - CLIP, PIN HOLD 53113A - GRILLE, RADIATOR SIDE, LH 53734D - PATCH, FRONT FENDER APRON TO DASH, LH 53786C - GUSSET, FRONT FENDER APRON, UPPER LH 53879T - RETAINER, REAR WHEEL HOUSE LINER ** Refer Fig 58426S - PROTECTOR, ENGINE SUB COVER 58426S - PROTECTOR, ENGINE SUB COVER 58426S - PROTECTOR, ENGINE SUB COVER 58426S - PROTECTOR, ENGINE SUB COVER 58426U - PROTECTOR, ENGINE SUB COVER NO.1 58426U - PROTECTOR, ENGINE SUB COVER NO.1 58426U - PROTECTOR, ENGINE SUB COVER NO.1 61144 - GUSSET, FRONT PILLAR DOOR OPENING, UPPER LH 61148A - EXTENSION, FRONT BODY PILLAR, UPPER OUTER LH 61182B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 LH 61202 - RAIL SUB-ASSY, ROOF SIDE, LH 61244B - PLATE, FRONT BODY PILLAR END, LH 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH 61249 - RETAINER, ROOF SIDE RAIL, OUTER LH 61256A - PLATE, ROOF SIDE RAIL, OUTER LH 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH 61309B - RETAINER SUB-ASSY, DOOR LOCK STRIKER, LH 61338A - REINFORCEMENT, CENTER BODY PILLAR, INNER LH 61602C - PANEL SUB-ASSY, QUARTER, LH 61618B - PANEL, QUARTER, INNER LOWER LH 61626G - EXTENSION, QUARTER PANEL, REAR LH 61712 - PANEL, ROOF SIDE, OUTER LH 61714A - EXTENSION, ROOF SIDE, OUTER LH 62364E - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER LH 64189F - BOLT, REAR BODY MOUNTING 64726Q - CLIP, QUARTER PANEL 64726R - CLIP, ROOF SIDE PANEL 65638 - LINER, REAR WHEEL HOUSE, LH 66243C - PROTECTOR, REAR BODY, NO.1 66244C - PROTECTOR, REAR BODY, NO.2 71735E - FASTENER, ROOF SIDE PANEL 71735E - FASTENER, ROOF SIDE PANEL 75565F - PROTECTOR, ROOF SIDE GARNISH, NO.1 75566G - PROTECTOR, ROOF SIDE GARNISH, NO.2 75567F - PROTECTOR, ROOF SIDE GARNISH, NO.3 75568C - PROTECTOR, ROOF SIDE GARNISH, NO.4 75569C - SEAL, ROOF SIDE GARNISH NO.1 75579A - SEAL, ROOF SIDE GARNISH NO.2 75916B - TAPE, BLACK OUT, LH 75924E - TAPE, BLACK OUT, NO.2 LH 75926B - TAPE, BLACK OUT, NO.3 LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
