LEXUS RX300 330 350 GSU35L-AWAGKW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

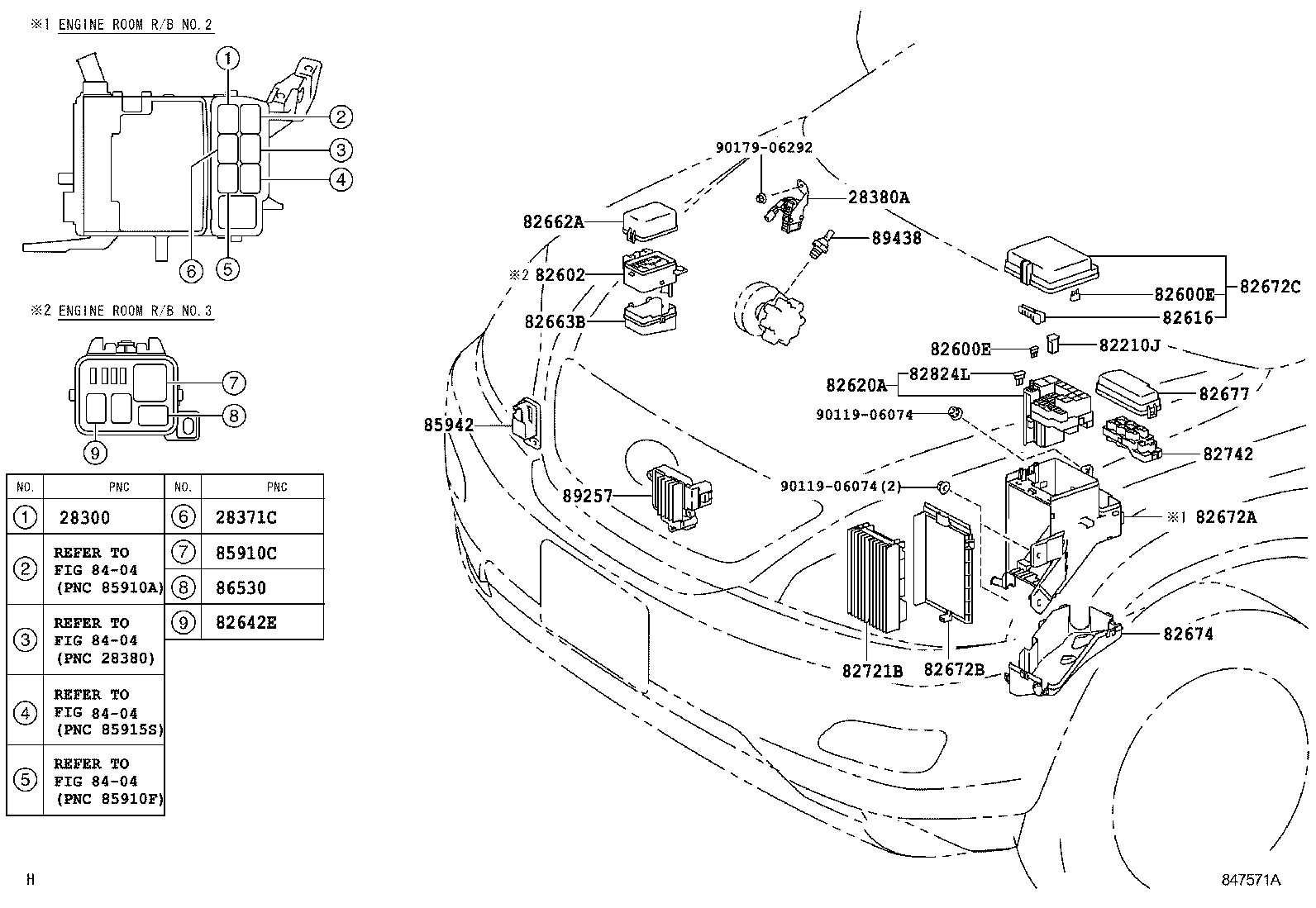

ENGINE ROOM ILLUST NO. 2 OF 6(0601- )

RX300 330 350 | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28371C - RELAY, IGNITION, NO.2 28380A - RESISTER, FUEL PUMP 82210J - FUSIBLE LINK 82600E - ENGINE ROOM FUSE 82600E - ENGINE ROOM FUSE 82602 - BLOCK SUB-ASSY, RELAY 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82642E - RELAY, DAY TIME RUNNING LIGHT, NO.3 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82663B - COVER, RELAY BLOCK, LOWER, NO.3 82672A - COVER, JUNCTION BLOCK 82672B - COVER, JUNCTION BLOCK 82672C - COVER, JUNCTION BLOCK 82674 - COVER, JUNCTION BLOCK LOWER 82677 - COVER, JUNCTION BLOCK, UPPER NO.2 82721B - BLOCK, ENGINE ROOM JUNCTION 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 82824L - PIN, SHORT ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85942 - RELAY, HEADLAMP CLEANER CONTROL 86530 - RELAY ASSY, HORN 89257 - COMPUTER, COOLING FAN 89438 - SWITCH, POWER STEERING OIL PRESSURE ** Std Part ** Std Part ** Std Part
