LEXUS GS30 35 43 460 URS190R-BEZQHW / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING CONTROL AIR DUCT

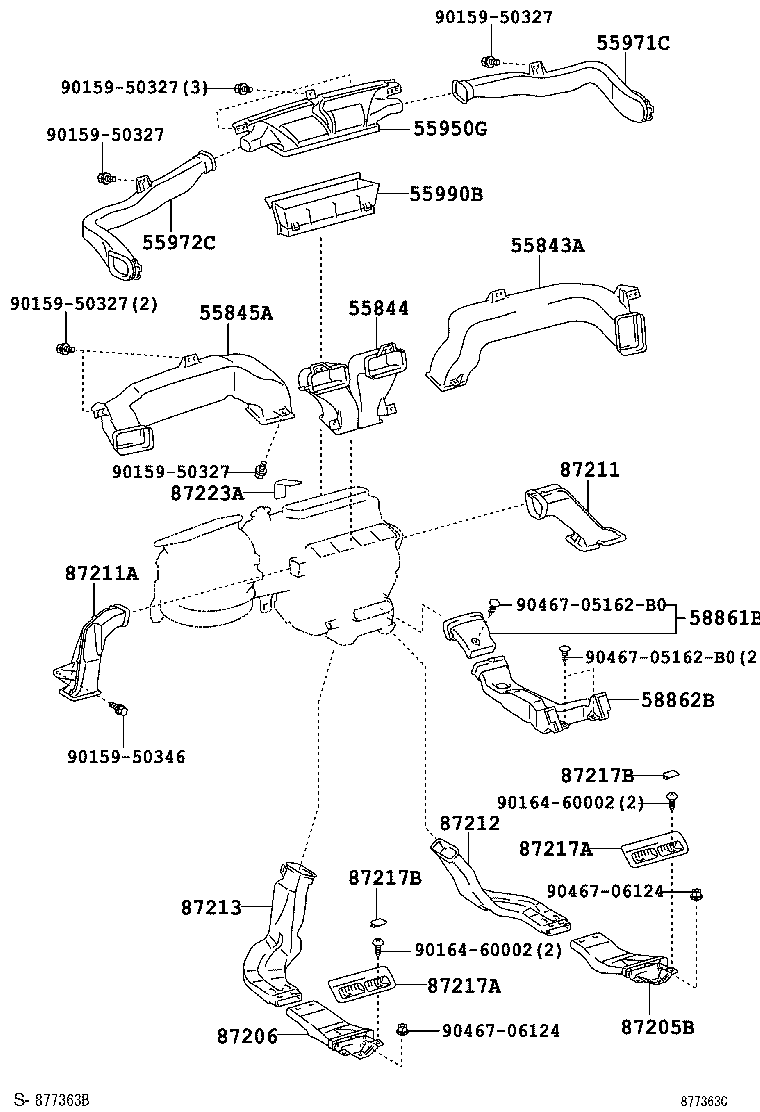

AIR DUCT ILLUST NO. 2 OF 3(0501- )RHD

 GS30 35 43 460 |  HEATING AIR CONDITIONING CONTROL AIR DUCT 55843A - DUCT, HEATER TO REGISTER, NO.1 55844 - DUCT, HEATER TO REGISTER, NO.2 55845A - DUCT, HEATER TO REGISTER, NO.3 55950G - NOZZLE ASSY, DEFROSTER 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 55990B - NOZZLE ASSY, DEFROSTER, LOWER 58861B - DUCT, CONSOLE BOX, NO.1 58862B - DUCT, CONSOLE BOX, NO.2 87205B - GUIDE SUB-ASSY, AIR DUCT, RH 87206 - GUIDE SUB-ASSY, AIR DUCT, LH 87211 - DUCT, AIR, NO.1 87211A - DUCT, AIR, NO.2 87212 - DUCT, AIR, REAR NO.1 87213 - DUCT, AIR, REAR NO.2 87217A - DUCT, AIR, REAR NO.6 87217A - DUCT, AIR, REAR NO.6 87217B - PLUG, AIR DUCT 87217B - PLUG, AIR DUCT 87223A - PAD, AIR DUCT  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
