TOYOTA TUNDRA UPK50L-TRTDKA / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

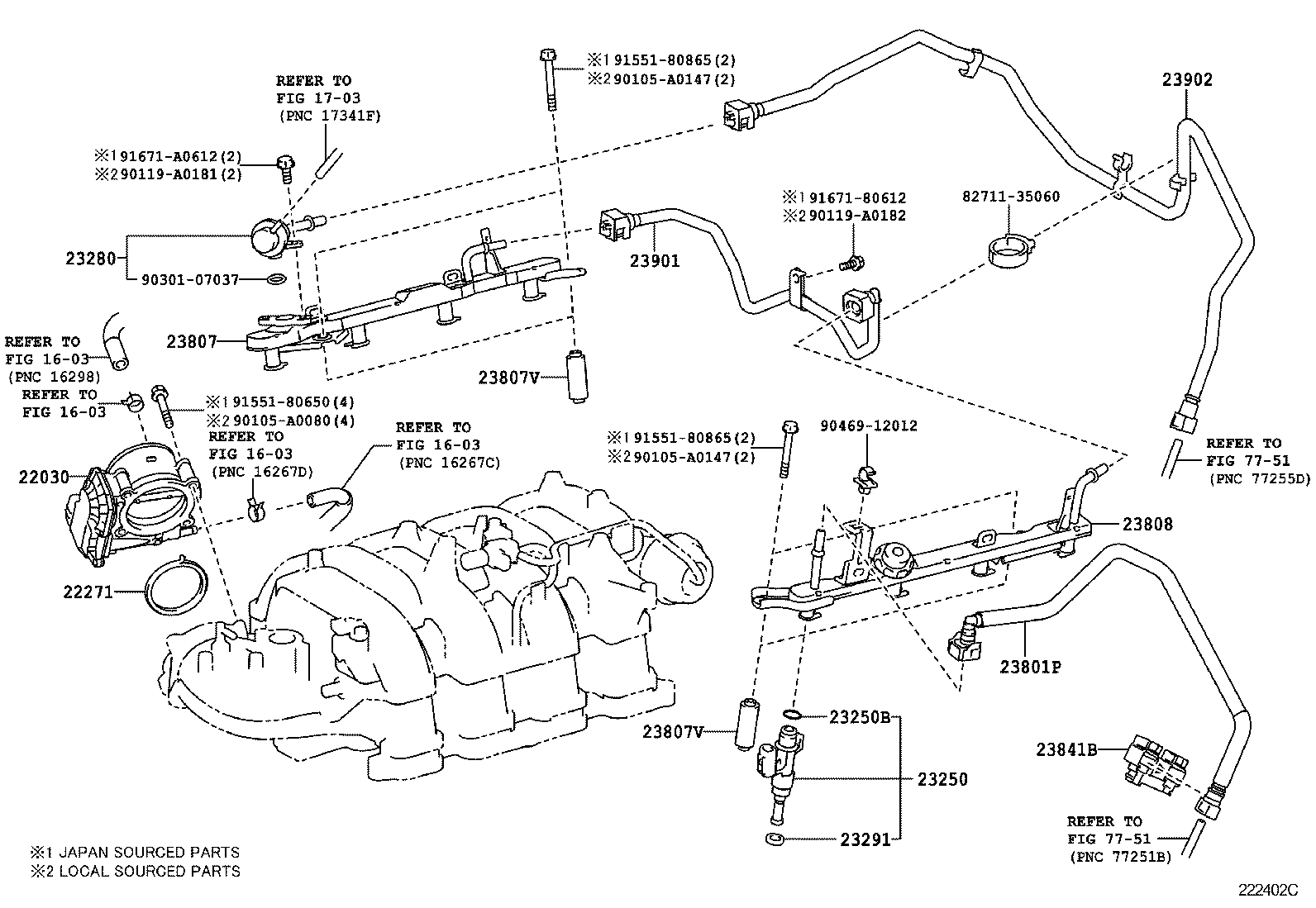

FUEL INJECTION SYSTEM

(0904- )1URFE

 TUNDRA |  FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 22030 - BODY ASSY, THROTTLE W/MOTOR 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23280 - REGULATOR ASSY, FUEL PRESSURE 23291 - INSULATOR, INJECTOR VIBRATION 23801P - PIPE SUB-ASSY, FUEL, NO.1 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23808 - PIPE SUB-ASSY, FUEL DELIVERY, NO.2 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) 23901 - TUBE SUB-ASSY, FUEL 23902 - TUBE SUB-ASSY, FUEL ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
