TOYOTA HIACE KDH200R-RBMDYN / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING WATER PIPING

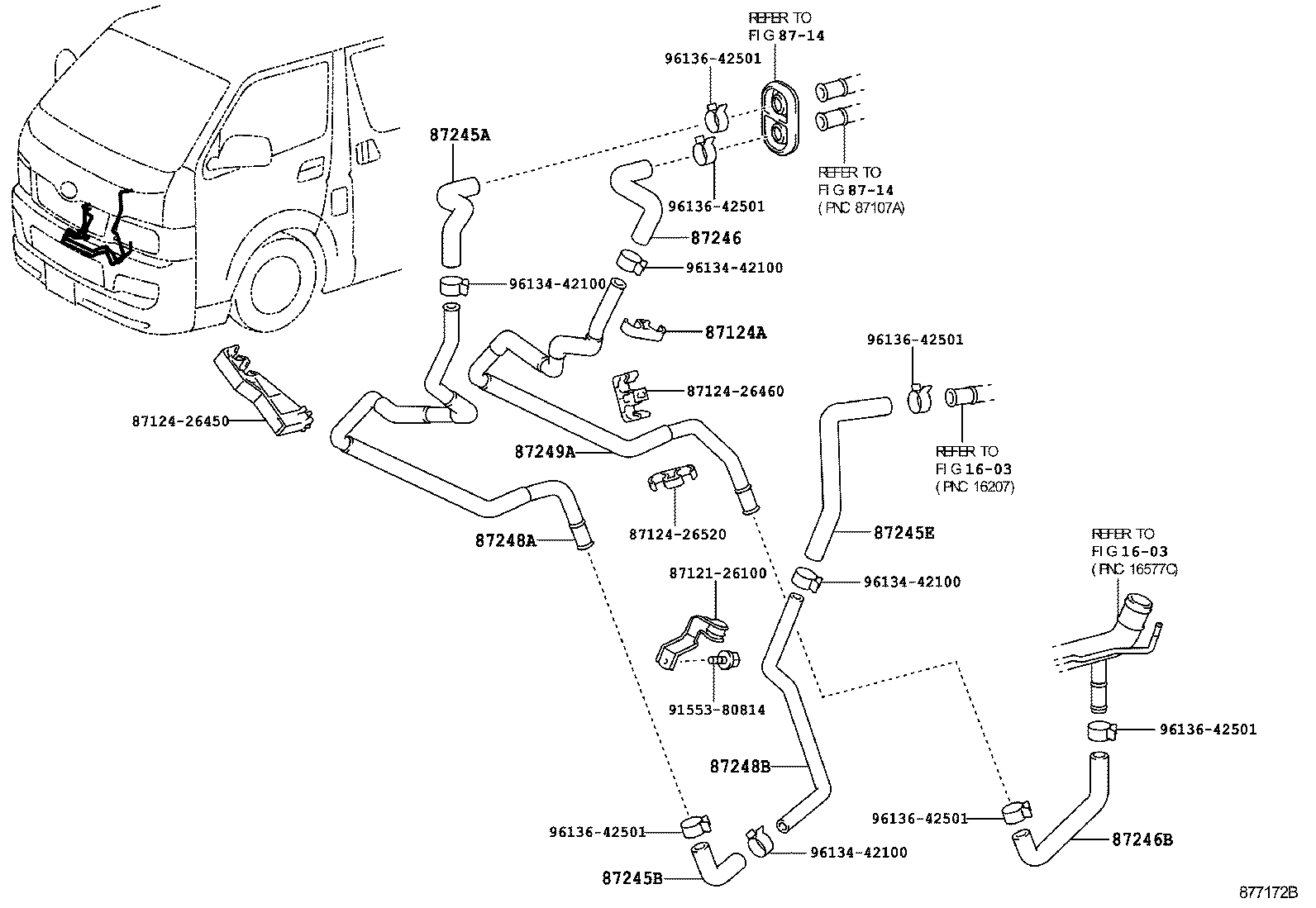

FRONT ILLUST NO. 1 OF 2(0501- )KDH201..06S ; (0501- )KDH201..ARL

 HIACE |  HEATING AIR CONDITIONING WATER PIPING ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part 87124A - CLAMP, HEATER ** Refer Fig ** Refer Fig 87245A - HOSE, HEATER WATER, INLET A 87245B - HOSE, HEATER WATER, INLET B 87245E - HOSE, HEATER WATER, INLET E 87246 - HOSE, HEATER WATER, OUTLET 87246B - HOSE, HEATER WATER, OUTLET B 87248A - PIPE, HEATER WATER INLET, A 87248B - PIPE, HEATER WATER INLET, B 87249A - PIPE, HEATER WATER OUTLET, A  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
