TOYOTA ALPHARD VELLFIRE HV ATH20W-NFXQB / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

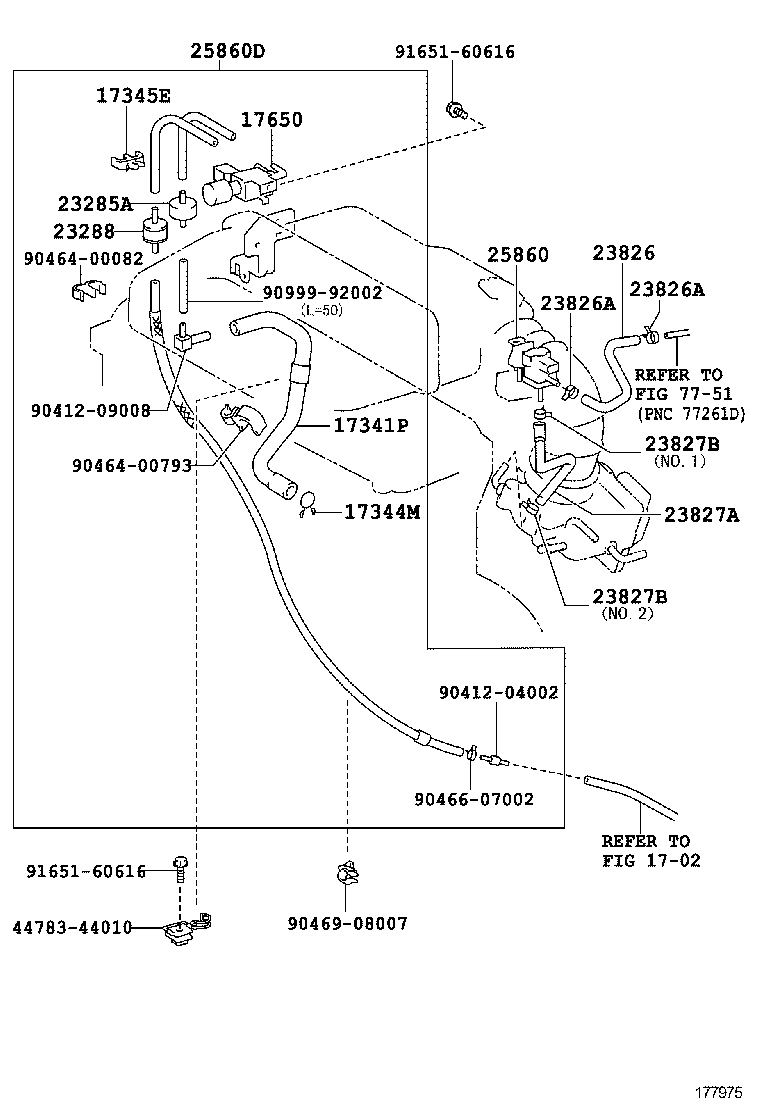

VACUUM PIPING

(1301- )2AZFXE

 ALPHARD VELLFIRE HV |  VACUUM PIPING ** Refer Fig 17341P - HOSE, AIR 17344M - CLIP(FOR AIR HOSE, NO.4) 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17650 - VALVE ASSY, VACUUM SWITCHING 23285A - VALVE, CHECK, NO.1 23288 - JET, NO.1 23826 - HOSE, FUEL VAPOR FEED, NO.1 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 23827A - HOSE, FUEL VAPOR FEED, NO.2 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25860D - VALVE ASSY, VACUUM SWITCHING, NO.2  ** Std Part ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
