TOYOTA RACTIS NSP122-CHXXK / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

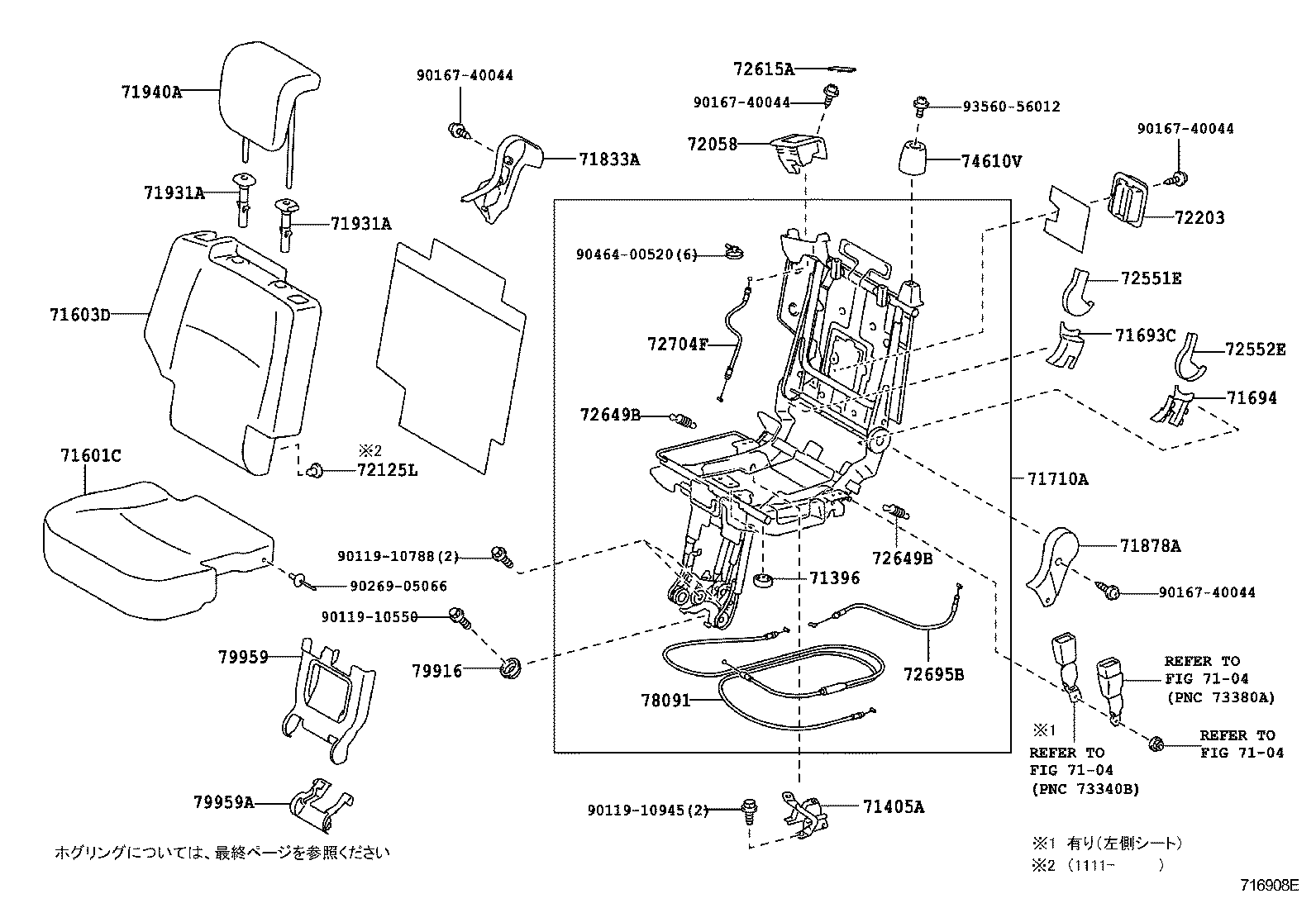

REAR SEAT SEAT TRACK

RH ILLUST NO. 1 OF 3(1011- )NCP122,NSP122

RACTIS | REAR SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig 71396 - CUSHION, REAR SEAT SUPPORT, REAR 71405A - STRIKER SUB-ASSY, REAR SEAT LOCK, RH 71601C - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH 71693C - COVER, REAR SEAT CUSHION HINGE, OUTER RH 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH 71710A - FRAME ASSY, REAR SIDE SEAT, RH 71833A - COVER, REAR SEAT RECLINING, NO.1 RH 71878A - COVER, REAR SEAT RECLINING, INNER RH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72058 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL 72125L - RETAINER, REAR SEAT BACK PAD 72203 - HANDLE SUB-ASSY, REAR SEAT TRACK 72551E - COVER, RECLINING HINGE, RH 72552E - COVER, RECLINING HINGE, LH 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH 72649B - SPRING, REAR SEAT CUSHION SUPPORT 72649B - SPRING, REAR SEAT CUSHION SUPPORT 72695B - CABLE, REAR SEAT LOCK CONTROL, RH 72704F - CABLE, REAR SEAT RECLINING CONTROL, NO.3 74610V - GRIP ASSY, ASSIST 78091 - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL 79916 - BRACKET, SEAT LEG, NO.2 79959 - COVER, RR SEAT LEG 79959A - COVER, REAR SEAT LEG, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
