TOYOTA PIXIS SPACE L575A-GBSZ / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

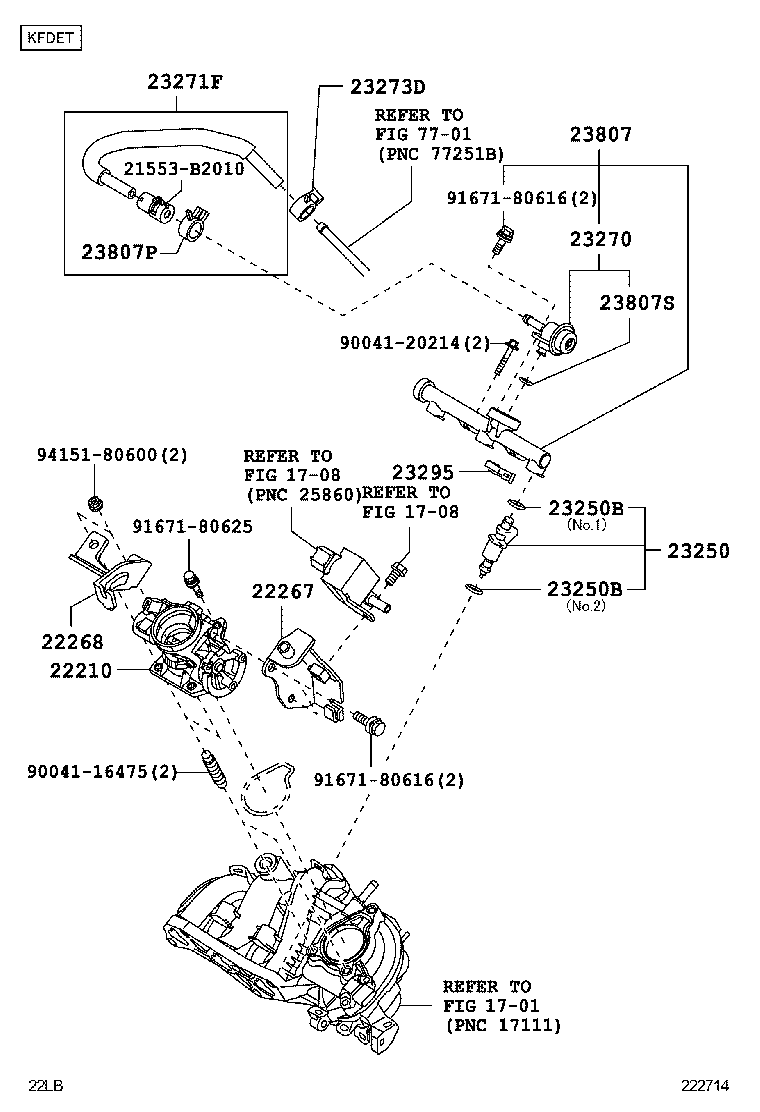

FUEL INJECTION SYSTEM

(1109-1205)KFDET

PIXIS SPACE | FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part 22210 - BODY ASSY, THROTTLE 22267 - BRACKET, THROTTLE BODY 22268 - BRACKET, THROTTLE BODY, NO.2 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250B - RING, O(FOR FUEL INJECTOR) 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23271F - HOSE, FUEL 23273D - CLIP(FOR FUEL HOSE NO.2) 23295 - HOLDER, INJECTOR, NO.1 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807P - CLIP(FOR FUEL HOSE) 23807S - RING, O(FOR FUEL DELIVARY PIPE) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
