TOYOTA RAV4 VANGUARD GSA33W-BNAGK / POWERTRAIN-CHASSIS / REAR AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

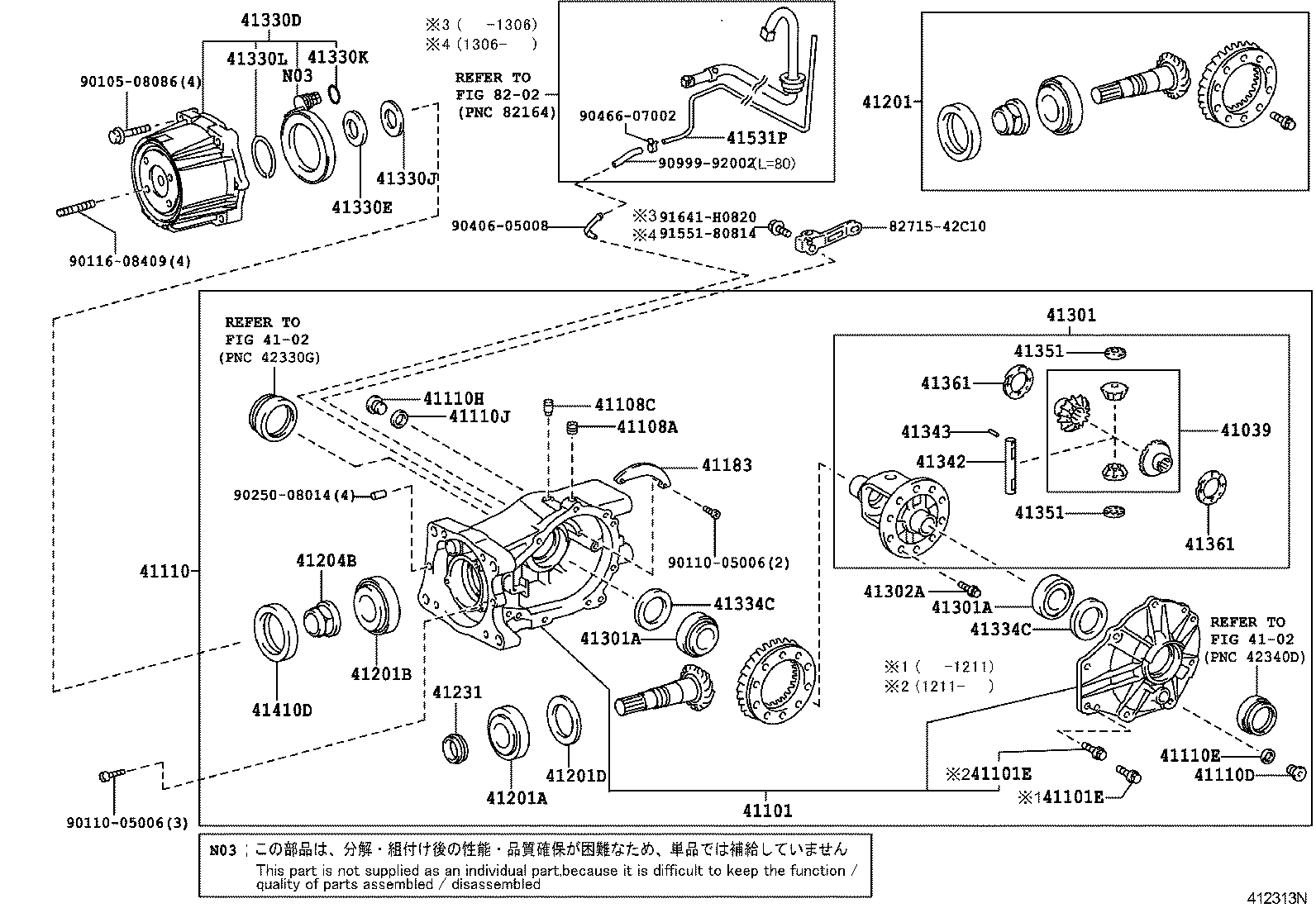

REAR AXLE HOUSING DIFFERENTIAL

ILLUST NO. 1 OF 2(0511- )ACA31,33,GSA33

 RAV4 VANGUARD |  REAR AXLE HOUSING DIFFERENTIAL ** Refer Fig ** Refer Fig 41039 - GEAR KIT, DIFFERENTIAL, REAR 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR 41101E - BOLT (FOR REAR DIFFERENTIAL CARRIER) 41101E - BOLT (FOR REAR DIFFERENTIAL CARRIER) 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) 41108C - PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER) 41110 - CARRIER ASSY, DIFFERENTIAL, REAR 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) 41110E - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) 41183 - DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR 41201A - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR) 41201B - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT) 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) 41204B - NUT (FOR REAR DRIVE PINION) 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) 41330D - COUPLING ASSY, TRANSMISSION 41330E - WASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING) 41330J - SHIM (FOR TRANSMISSION COUPLING) 41330K - RING, O (FOR TRANSMISSION COUPLING) 41330L - RING, SNAP (FOR TRANSMISSION COUPLING) 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41342 - SHAFT, REAR DIFFERENTIAL PINION 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 41410D - SEAL, OIL DIAPHRAGM 41531P - HOSE, REAR DIFFERENTIAL VACUUM ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
