TOYOTA QUICK DELI URBAN SUP XKU280K-QLQDY / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

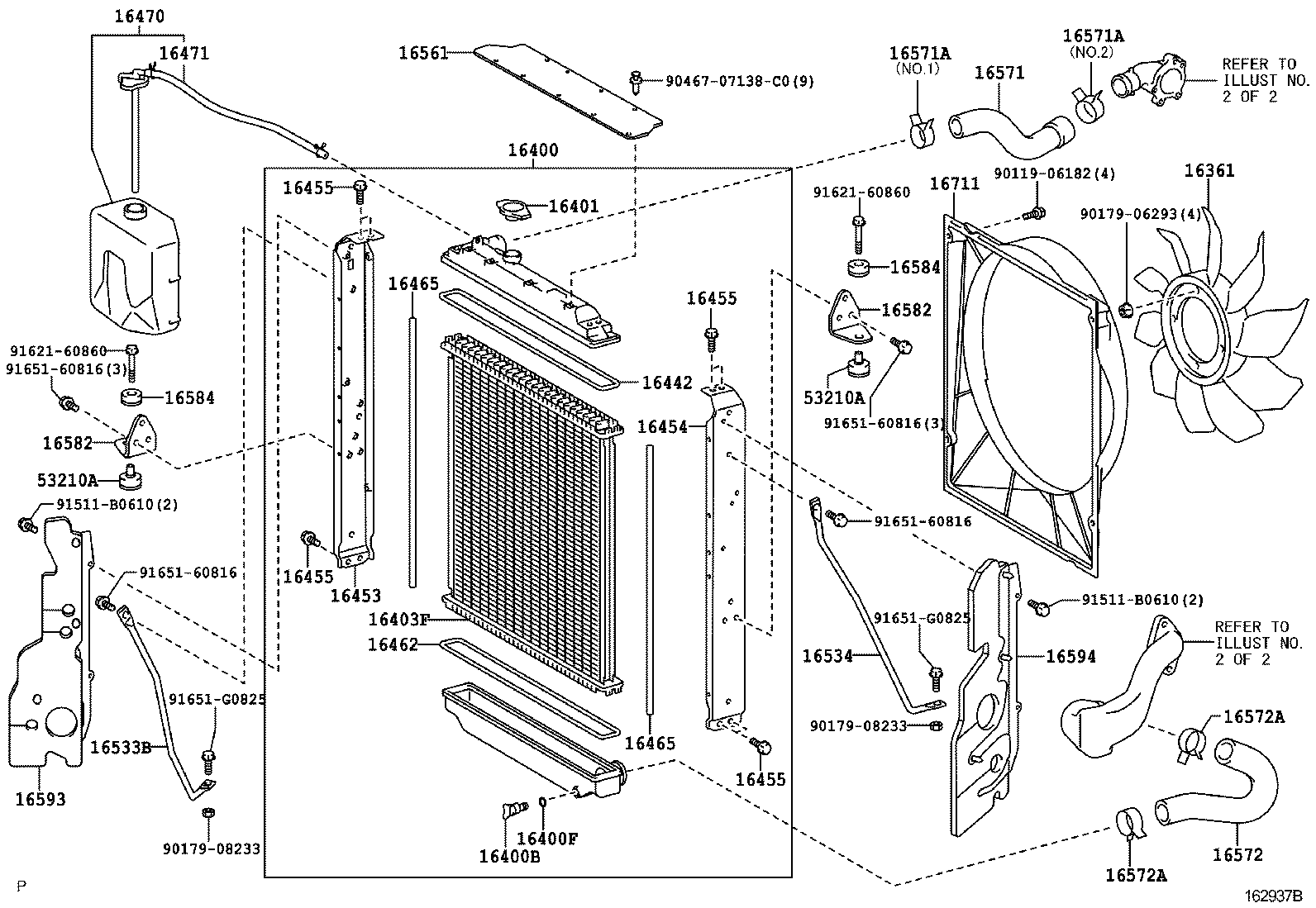

RADIATOR WATER OUTLET

ILLUST NO. 1 OF 2(0610- )

QUICK DELI URBAN SUP | RADIATOR WATER OUTLET 16361 - FAN 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16401 - CAP SUB-ASSY, RADIATOR 16403F - CORE SUB-ASSY, RADIATOR 16442 - RING, O(FOR RADIATOR UPPER TANK) 16453 - PLATE, RADIATOR SIDE 16454 - PLATE, RADIATOR SIDE 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE 16462 - RING, O(FOR RADIATOR LOWER TANK) 16465 - PACKING, RADIATOR 16465 - PACKING, RADIATOR 16470 - TANK ASSY, RADIATOR RESERVE 16471 - CAP SUB-ASSY, RESERVE TANK 16533B - SUPPORT, RADIATOR, NO.1 16534 - SUPPORT, RADIATOR, NO.2 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16582 - BRACKET, RADIATOR, NO.1 16582 - BRACKET, RADIATOR, NO.1 16584 - INSULATOR, RADIATOR MOUNTING 16584 - INSULATOR, RADIATOR MOUNTING 16593 - GUIDE, RADIATOR AIR, NO.1 16594 - GUIDE, RADIATOR AIR, NO.2 16711 - SHROUD, FAN 53210A - SUPPORT ASSY, RADIATOR 53210A - SUPPORT ASSY, RADIATOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
