TOYOTA QUICK DELI URBAN SUP XKU280K-QLQDY / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

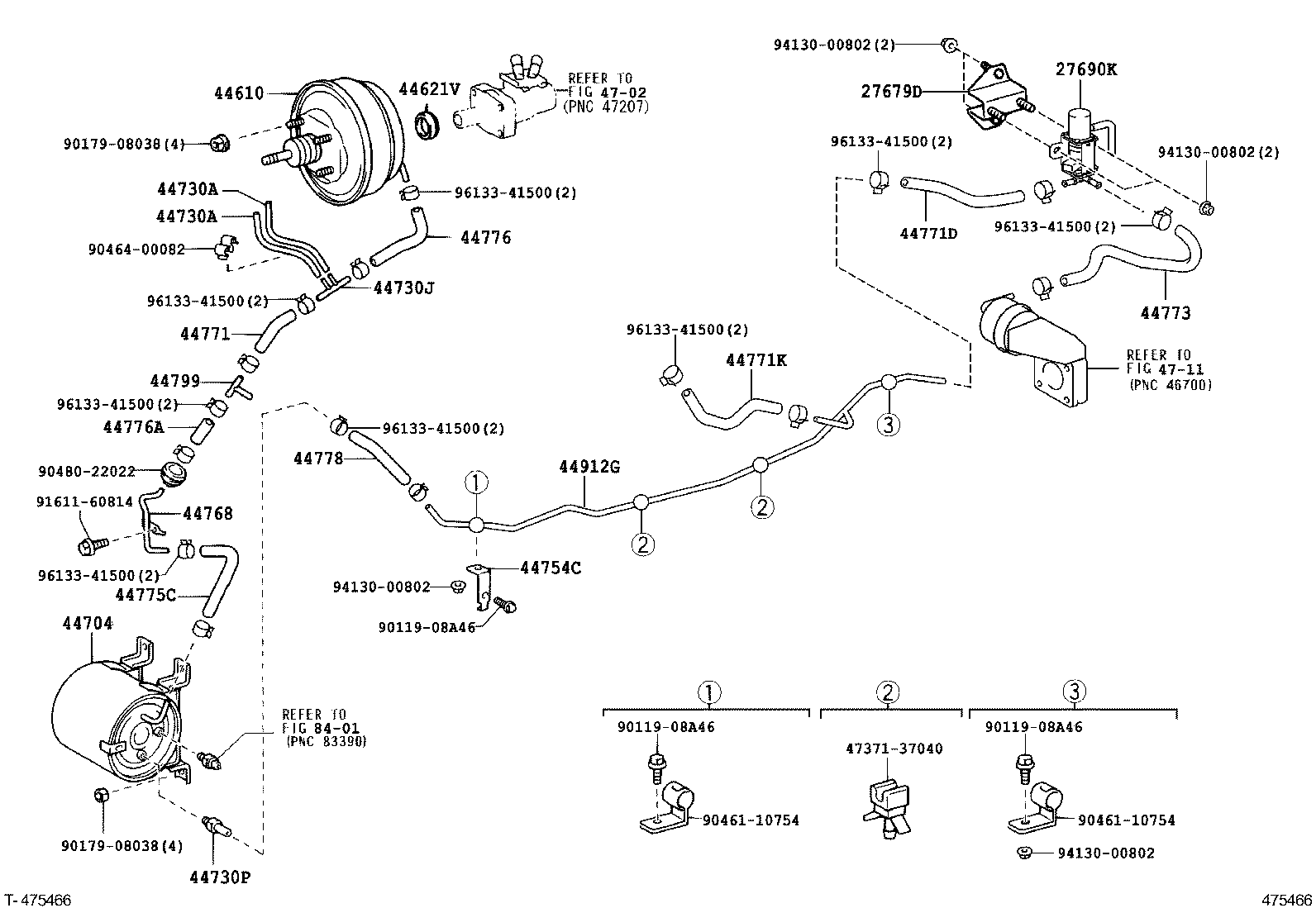

BRAKE BOOSTER VACUUM TUBE

(0610- )

QUICK DELI URBAN SUP | BRAKE BOOSTER VACUUM TUBE 27679D - BRACKET, EXHAUST BRAKE SOLENOID 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) 44610 - BOOSTER ASSY, BRAKE 44621V - SEAL, BOOSTER BODY 44704 - RESERVOIR SUB-ASSY, VACUUM 44730A - HOSE, VACUUM, NO.1 44730A - HOSE, VACUUM, NO.1 44730J - WAY(FOR BOOSTER VACUUM) 44730P - VALVE ASSY, VACUUM CHECK, NO.1 44754C - BRACKET, VACUUM TUBE, NO.1 44768 - TUBE, BOOSTER VACUUM 44771 - HOSE, VACUUM TUBE CONNECTOR 44771D - HOSE, VACUUM TUBE CONNECTOR 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP 44773 - HOSE, VACUUM, NO.2 44775C - HOSE, CONNECTOR TO WAY 44776 - HOSE, BRAKE BOOSTER 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER 44778 - HOSE, CONNECTOR TO CHECK VALVE 44799 - WAY, BRAKE VACUUM HOSE 44912G - TUBE, 3 WAY TO MAGNETIC VALVE ** Refer Fig ** Refer Fig ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
