TOYOTA QUICK DELI URBAN SUP XKU280K-QLQDY / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

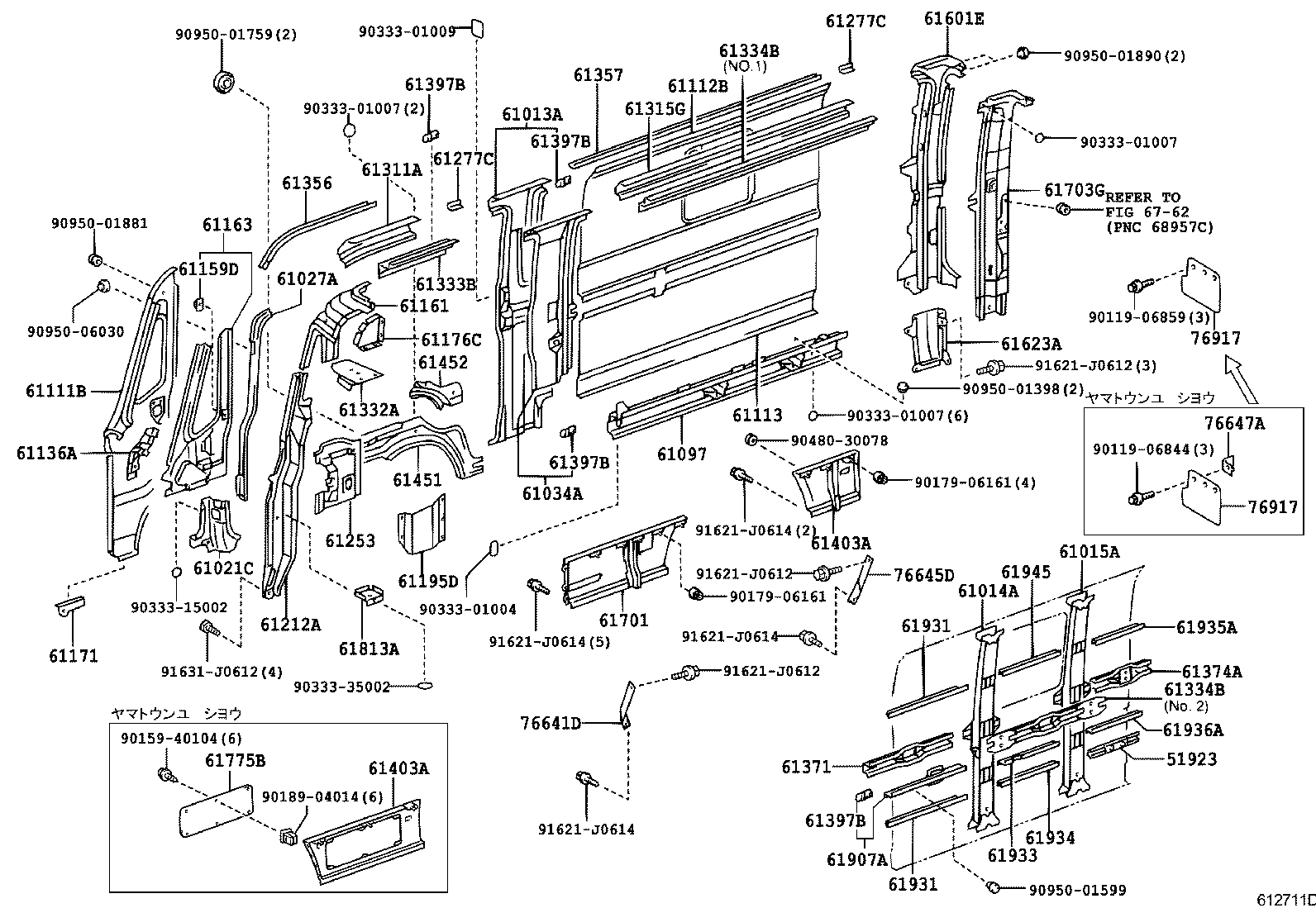

SIDE MEMBER

ｻｲﾄﾞﾒﾝﾊﾞ RH ILLUST NO. 1 OF 2(0610- )

QUICK DELI URBAN SUP | SIDE MEMBER 51923 - REINFORCEMENT,SPARE WHEEL 61013A - PILLAR SUB-ASSY, NO.3 RH 61014A - PILLAR SUB-ASSY, NO.4 RH 61015A - PILLAR SUB-ASSY, NO.5 RH 61021C - PILLAR SUB-ASSY, FRONT BODY, RH 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH 61034A - PILLAR SUB-ASSY, NO.3 INNER, RH 61097 - RAIL SUB-ASSY, NO.5 LOWER OUTER, RH 61111B - PANEL, NO.1 SIDE, RH 61112B - PANEL, NO.2 SIDE, RH 61113 - PANEL, NO.2 SIDE, REAR, RH 61136A - PANEL, FRONT SIDE END, RH 61159D - RETAINER, SIDE PANEL, NO.2 RH 61161 - PILLAR, FRONT BODY, UPPER INNER RH 61163 - PILLAR, FRONT BODY, INNER RH 61171 - RETAINER, FRONT PILLAR, LOWER INNER RH 61176C - REINFORCEMENT, NO.1 PILLAR, UPPER RH 61195D - BRACKET, COWL SIDE TRIM, LH 61212A - PILLAR, NO.1 OUTER, LOWER RH 61253 - PILLAR, NO.2 INNER, RH 61277C - JOINT, ROOF DRIP CHANNEL, RH 61277C - JOINT, ROOF DRIP CHANNEL, RH 61311A - RAIL, NO.1 UPPER OUTER, RH 61315G - RAIL, NO.3 UPPER OUTER, RH 61332A - RAIL, NO.1 UPPER INNER, REAR RH 61333B - RAIL, NO.2 UPPER INNER, RH 61334B - RAIL, NO.3 UPPER INNER, RH 61334B - RAIL, NO.3 UPPER INNER, RH 61356 - CHANNEL, ROOF DRIP SIDE, FRONT RH 61357 - CHANNEL, ROOF DRIP SIDE, CENTER NO.1 61371 - RAIL, NO.1 CENTER INNER, RH 61374A - RAIL, NO.4 CENTER INNER 61397B - RETAINER, CENTER BODY PILLAR 61397B - RETAINER, CENTER BODY PILLAR 61397B - RETAINER, CENTER BODY PILLAR 61397B - RETAINER, CENTER BODY PILLAR 61403A - PANEL SUB-ASSY, FENDER, RH 61403A - PANEL SUB-ASSY, FENDER, RH 61451 - PANEL, ROCKER, OUTER RH 61452 - PANEL, ROCKER INNER, FRONT RH 61601E - PANEL SUB-ASSY, QUARTER, OUTER RH 61623A - EXTENSION, QUARTER PANEL, OUTER RH 61701 - SKIRT SUB-ASSY, QUARTER PANEL, FRONT RH 61703G - PANEL SUB-ASSY, QUARTER, INNER RH 61775B - COVER, COOLER CONDENSER AIR INTAKE, NO.2 61813A - PLATE, DUSTPROOF, NO.1 RH 61907A - STRENGTH SUB-ASSY, UPPER RAIL, NO.3 RH 61931 - STRENGTH, UPPER RAIL, NO.1 RH 61931 - STRENGTH, UPPER RAIL, NO.1 RH 61933 - STRENGTH, UPPER RAIL, NO.3 RH 61934 - STRENGTH, UPPER RAIL, NO.4 RH 61935A - STRENGTH, UPR RAIL, NO.5 RH 61936A - PILLAR, NO.2 INNER, LOWER 61945 - STRENGTH, UPPER RAIL, NO.5 RH ** Refer Fig 76641D - BRACKET, FRONT MUDGUARD, RH 76645D - BRACKET, REAR BODY MUDGUARD, RH 76647A - SUPPORT, REAR BODY MUDGUARD, RH 76917 - MUDGUARD, SIDE, REAR RH 76917 - MUDGUARD, SIDE, REAR RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
