TOYOTA BLADE GRE156H-CHTEK / BODY / CONSOLE BOX BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

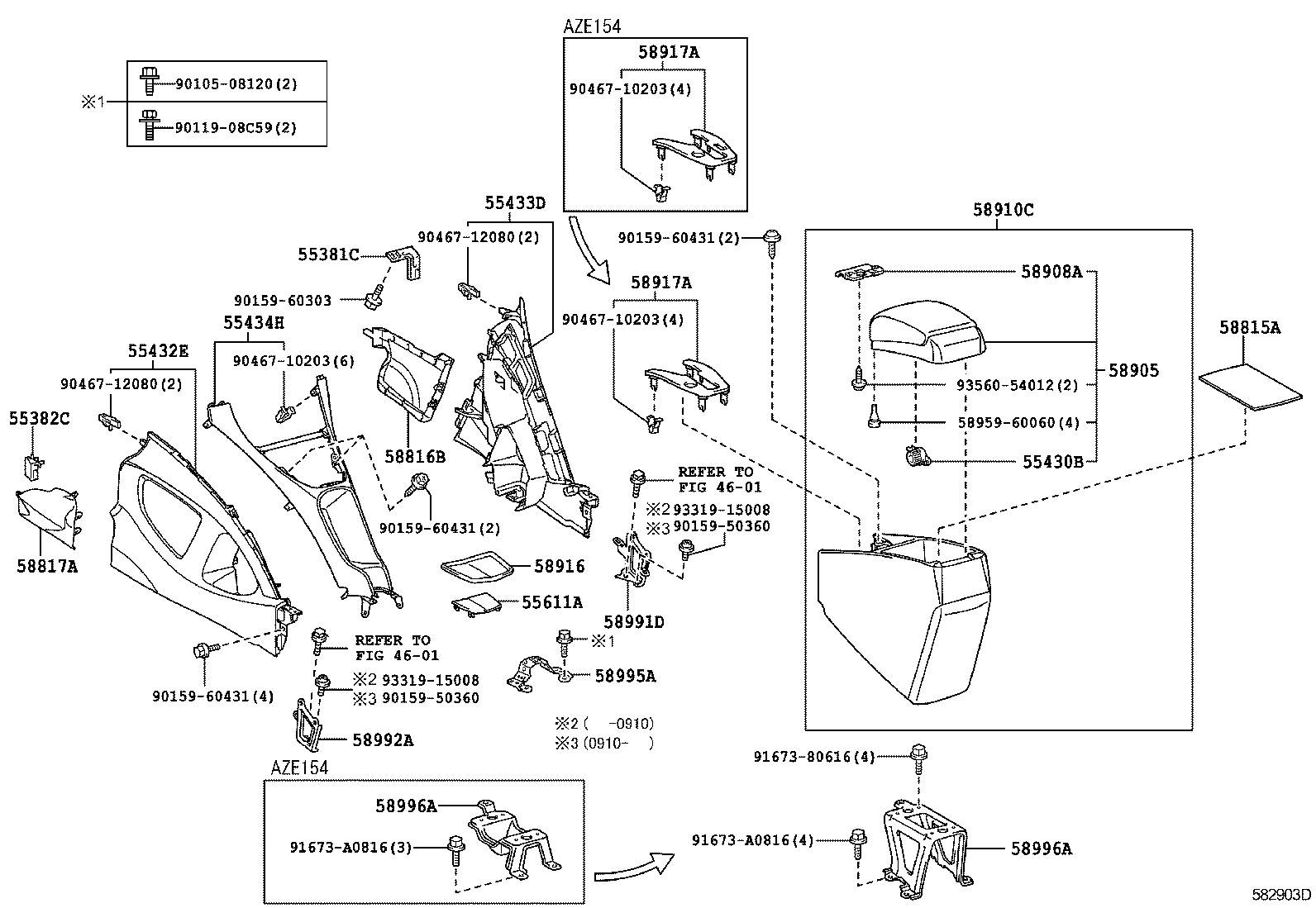

CONSOLE BOX BRACKET

(0612-0912)

 BLADE |  CONSOLE BOX BRACKET ** Refer Fig ** Refer Fig 55381C - BRACKET, FINISH PANEL MOUNTING, NO.1 55382C - BRACKET, FINISH PANEL MOUNTING, NO.2 55430B - DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL 55432E - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 55433D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 55434H - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER 55611A - TRAY, INSTRUMENT PANEL UNDER 58815A - CARPET, CONSOLE BOX 58816B - INSERT, CONSOLE BOX 58817A - INSERT, CONSOLE BOX, FRONT NO.2 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR 58910C - BOX ASSY, CONSOLE, REAR 58916 - MAT, BOX BOTTOM 58917A - COVER, CONSOLE BOX, REAR 58917A - COVER, CONSOLE BOX, REAR  ** Std Part 58991D - BRACKET, CONSOLE BOX MOUNTING, UPR RH 58992A - BRACKET, CONSOLE BOX MOUNTING, UPR LH 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
