TOYOTA CROWN MAJESTA UZS187-CETZK / POWERTRAIN-CHASSIS / FRONT SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

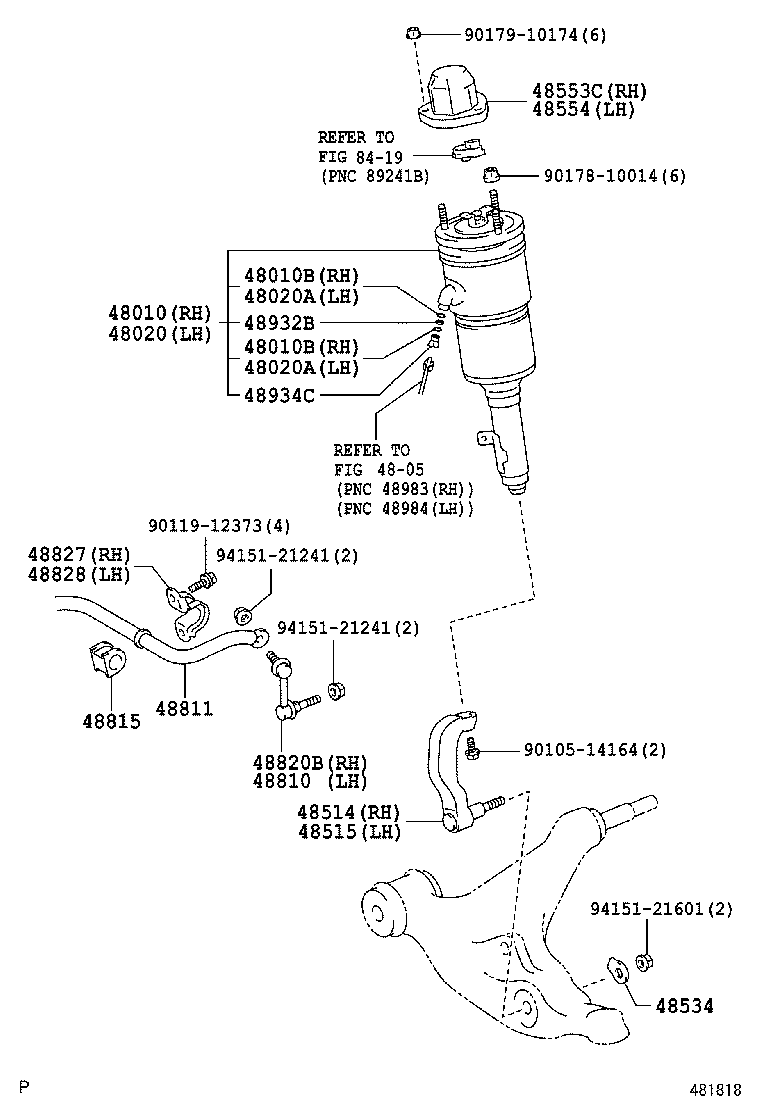

FRONT SPRING SHOCK ABSORBER

(0406- )UZS187

CROWN MAJESTA | FRONT SPRING SHOCK ABSORBER 48010 - CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER 48010B - RING, O(FOR FRONT PNEUMATIC CYLINDER RH) 48010B - RING, O(FOR FRONT PNEUMATIC CYLINDER RH) 48020 - CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER 48020A - RING, O(FOR FRONT PNEUMATIC CYLINDER LH) 48020A - RING, O(FOR FRONT PNEUMATIC CYLINDER LH) ** Refer Fig 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH 48534 - PLATE, FRONT SHOCK ABSORBER UPPER BRACKET 48553C - CAP, FRONT SHOCK ABSORBER, RH 48554 - CAP, FRONT SHOCK ABSORBER, LH 48810 - LINK ASSY, FRONT STABILIZER, LH 48811 - BAR, STABILIZER, FRONT 48815 - BUSH, FRONT STABILIZER BAR, NO.1 48820B - LINK ASSY, FRONT STABILIZER, RH 48827 - BRACKET, FRONT STABILIZER, NO.2 RH 48828 - BRACKET, FRONT STABILIZER, NO.2 LH 48932B - PLATE, HEIGHT CONTROL TUBE 48934C - CONNECTOR, HEIGHT CONTROL TUBE ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
