TOYOTA QUICK DELI URBAN SUP BU280K-QLQNS / TOOL-ENGINE-FUEL / EXHAUST PIPE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

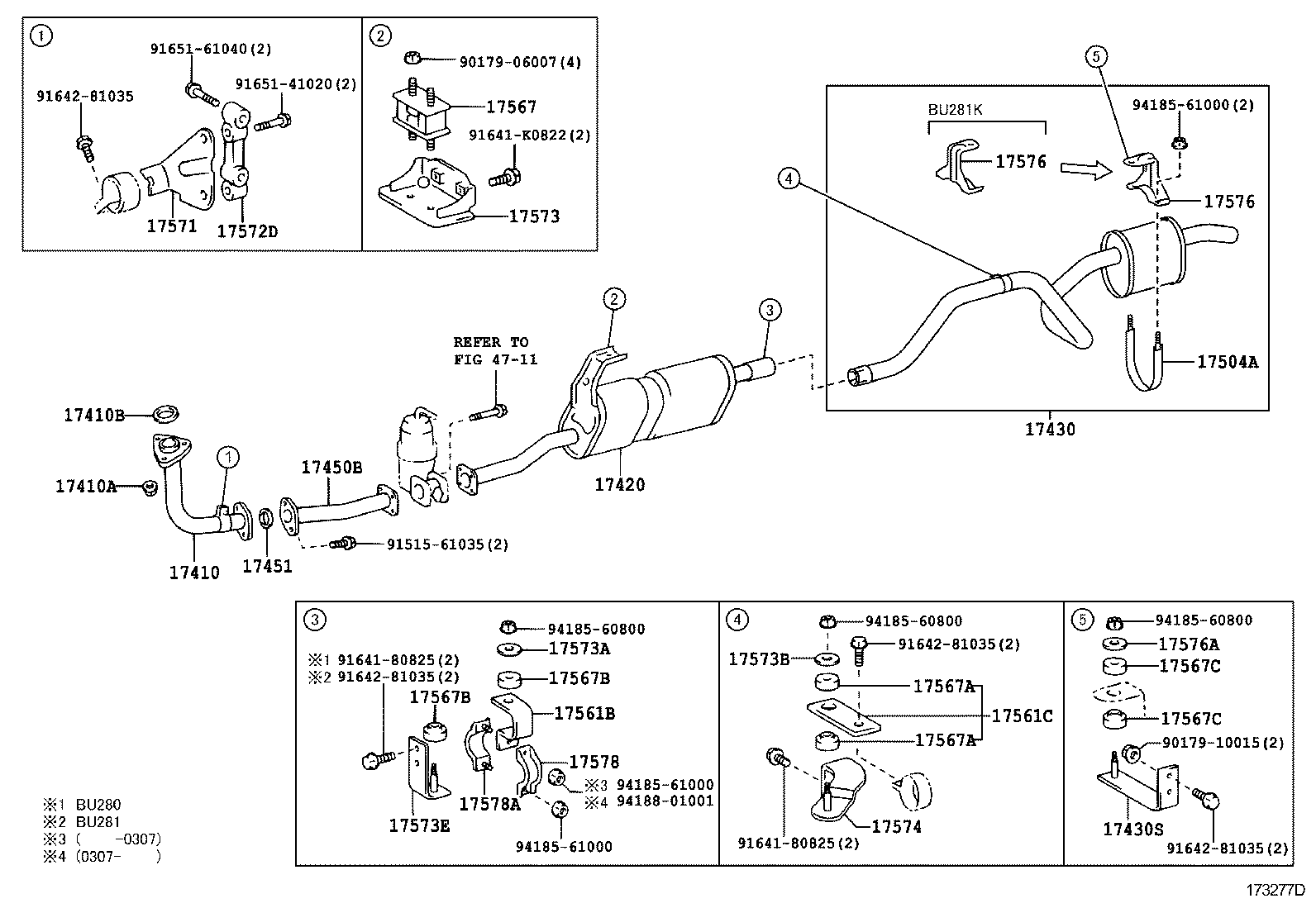

EXHAUST PIPE

(0206-0406)4B

QUICK DELI URBAN SUP | EXHAUST PIPE 17410 - PIPE ASSY, EXHAUST, FRONT 17410A - NUT, EXHAUST PIPE SET STUD BOLT 17410B - GASKET, EXHAUST PIPE 17420 - PIPE ASSY, EXHAUST, CENTER 17430 - PIPE ASSY, EXHAUST, TAIL 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) 17450B - PIPE ASSY, EXHAUST, FRONT NO.2 17451 - GASKET, EXHAUST PIPE 17504A - CLAMP SUB-ASSY, EXHAUST PIPE 17561B - SUPPORT, EXHAUST PIPE, NO.1 17561C - SUPPORT, EXHAUST PIPE, NO.1 17567 - CUSHION, EXHAUST PIPE SUPPORT 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3 17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 17573E - BRACKET, EXHAUST PIPE SUPPORT, NO.3 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 17576 - BRACKET, MUFFLER CLAMP 17576 - BRACKET, MUFFLER CLAMP 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 17578 - CLAMP, PIPE 17578A - CLAMP, MUFFLER ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
