TOYOTA CROWN CROWN MAJESTA GS171W-AWPBK / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

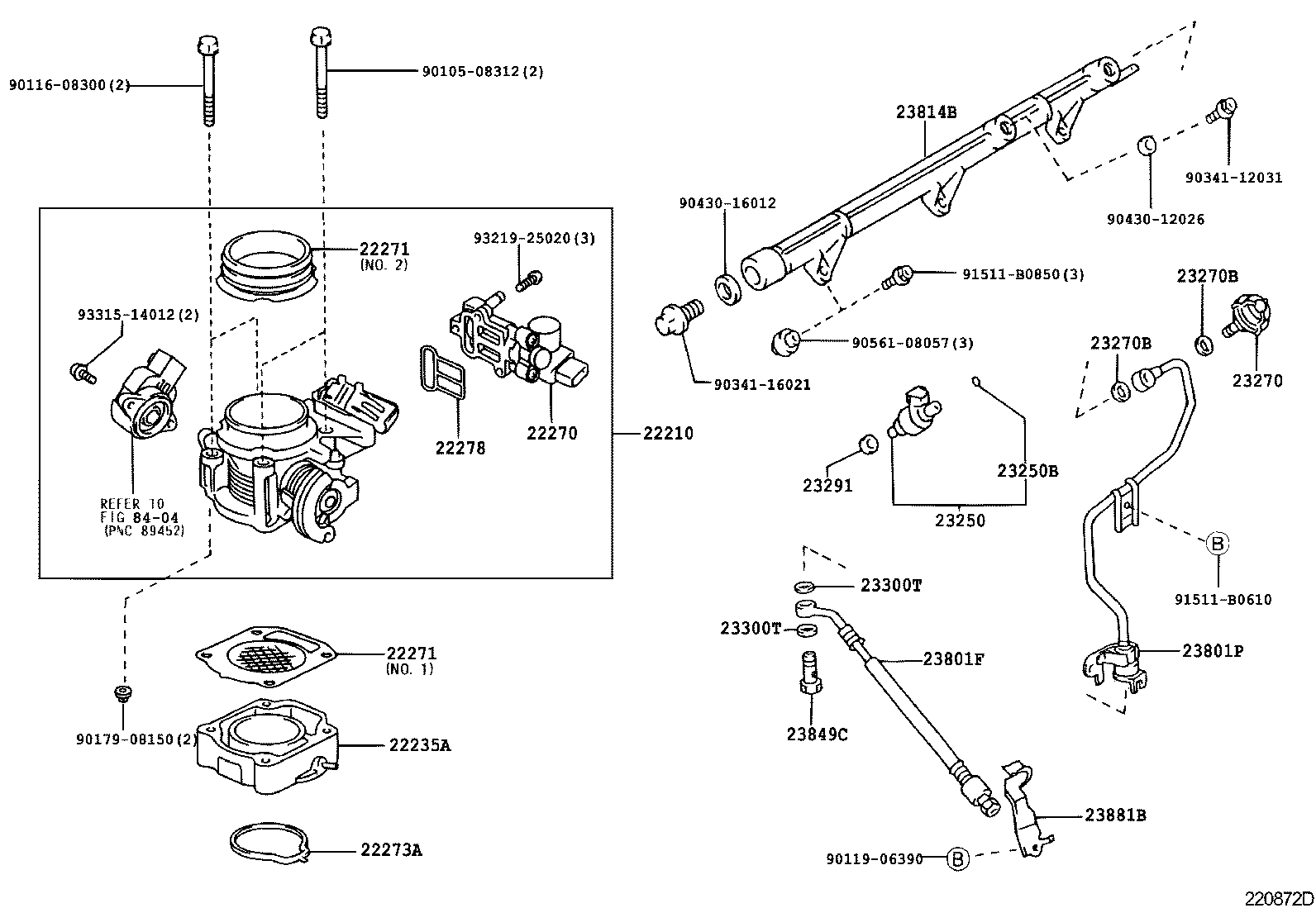

ILLUST NO. 1 OF 2(0004- )1GFE

 CROWN CROWN MAJESTA |  FUEL INJECTION SYSTEM 22210 - BODY ASSY, THROTTLE 22235A - INLET, AUXILIARY AIR 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22271 - GASKET, THROTTLE BODY 22271 - GASKET, THROTTLE BODY 22273A - GASKET, THROTTLE BODY, NO.2 22278 - GASKET, IDLE SPEED CONTROL VALVE 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23291 - INSULATOR, INJECTOR VIBRATION 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23801F - HOSE, FUEL, NO.1 23801P - PIPE SUB-ASSY, FUEL, NO.1 23814B - PIPE, FUEL DELIVERY 23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT) 23881B - BRACKET, FUEL HOSE ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
