TOYOTA VOLTZ ZZE138-BHPNK / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

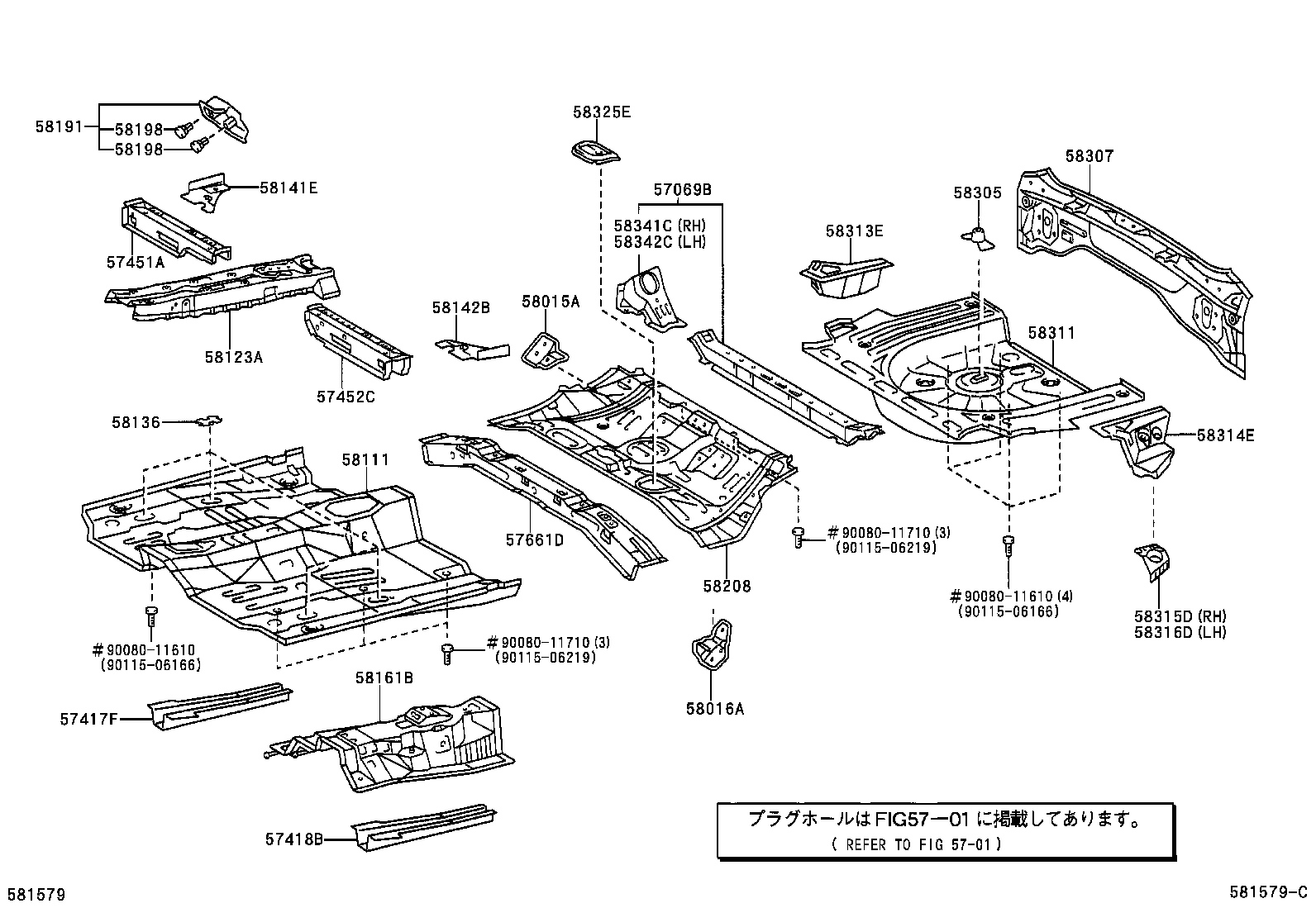

FLOOR PAN LOWER BACK PANEL

(0205- )ZZE138

VOLTZ | FLOOR PAN LOWER BACK PANEL ** Refer Fig 57069B - MEMBER SUB-ASSY, REAR FLOOR CROSS, CENTER 57417F - REINFORCEMENT, FRONT FLOOR UNDER, RH 57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH 57451A - MEMBER, FRONT FLOOR CROSS, RH 57452C - MEMBER, FRONT FLOOR CROSS, LH 57661D - MEMBER, REAR FLOOR CROSS, FRONT 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH 58111 - PAN, FRONT FLOOR 58123A - SUPPORT, SHIFT & SELECT LEVER 58136 - COVER, FRONT FLOOR HOLE 58141E - REINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH 58142B - REINFORCEMNT, FRONT SIDE MEMBER TO FLOOR PAN, LH 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN 58191 - FOOTREST, FRONT FLOOR 58198 - CLIP, FOOTREST 58198 - CLIP, FOOTREST 58208 - PAN, CENTER FLOOR 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313E - EXTENSION, REAR FLOOR SIDE PANEL, RH 58314E - EXTENSION, REAR FLOOR SIDE PANEL, LH 58315D - EXTENSION, REAR FLOOR PAN, RH 58316D - EXTENSION, REAR FLOOR PAN, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58341C - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH 58342C - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
