TOYOTA LAND CRUISER 100 UZJ100W-GNAEK / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

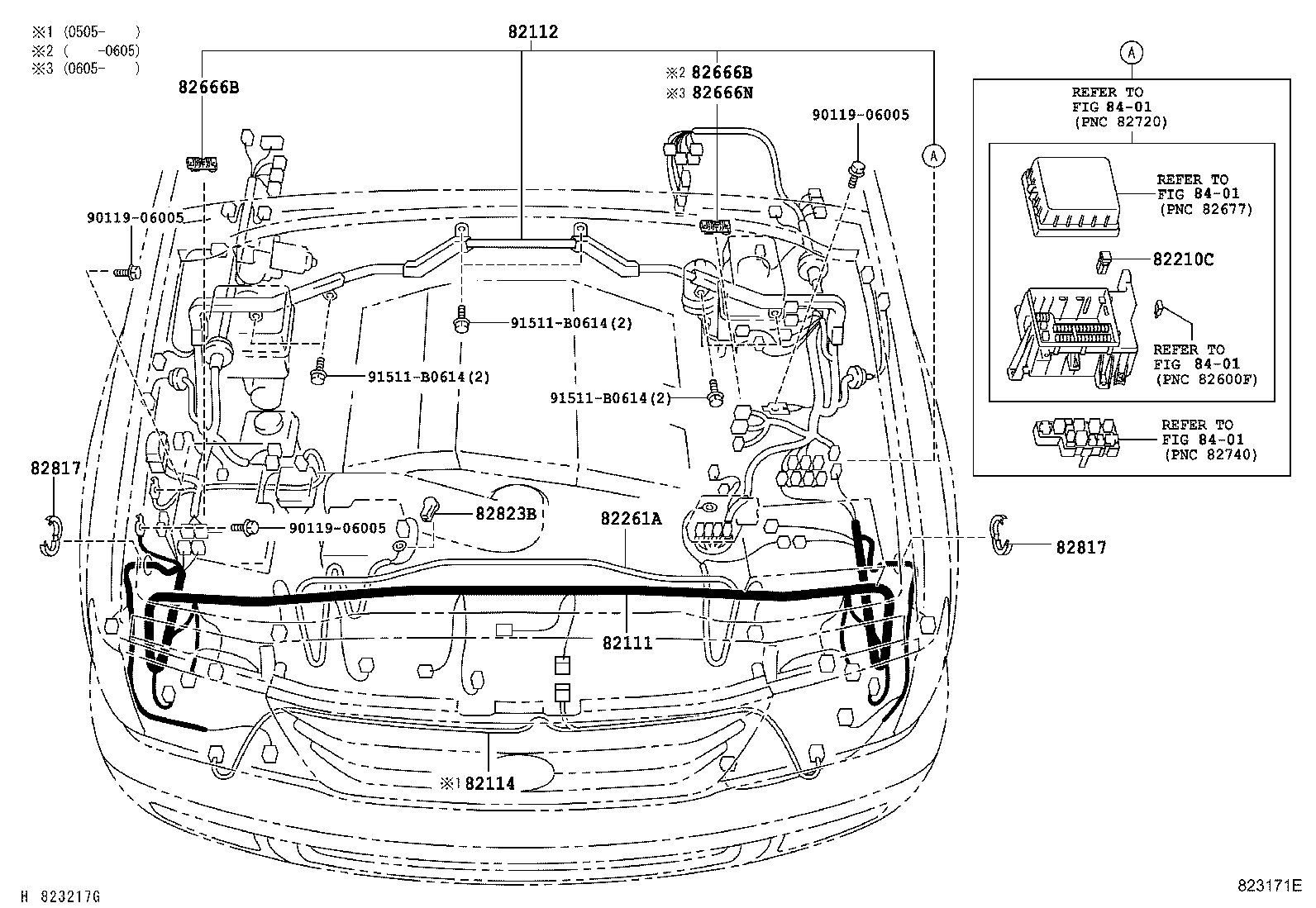

ｴﾝｼﾞﾝﾙ-ﾑ ILLUST NO. 1 OF10(0208- )UZJ100

LAND CRUISER 100 | WIRING CLAMP 82111 - WIRE, ENGINE ROOM MAIN 82112 - WIRE, ENGINE ROOM, NO.2 82114 - WIRE, ENGINE ROOM, NO.4 82210C - FUSIBLE LINK 82261A - WIRE, ALTERNATOR 82666B - HOLDER, CONNECTOR NO.3 82666B - HOLDER, CONNECTOR NO.3 82666N - HOLDER, CONNECTOR NO.10 82817 - PROTECTOR, WIRING HARNESS, NO.1 82817 - PROTECTOR, WIRING HARNESS, NO.1 82823B - CAP, TERMINAL, NO.3 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
