TOYOTA NADIA SXN10-AHSEH / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

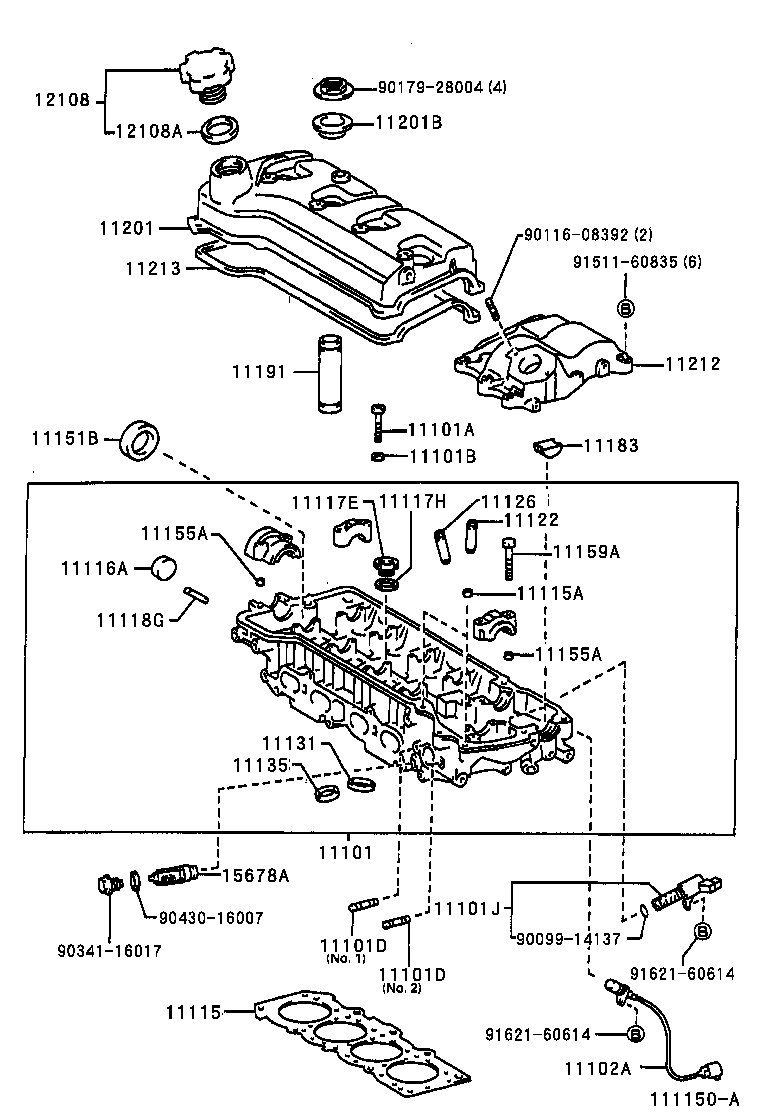

CYLINDER HEAD

(9807- )3SFSE

NADIA | CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11101D - BOLT, STUD(FOR WATER OUTLET) 11101D - BOLT, STUD(FOR WATER OUTLET) 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL 11102A - SENSOR, CAMSHAFT POSITION 11115 - GASKET, CYLINDER HEAD 11115A - PIN, RING 11116A - PLUG, TIGHT, NO.1 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 11117H - GASKET(FOR WATER HOLE) 11118G - PIN, SLOTTED SPRING, NO.1 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) 11155A - PIN, RING W/HEAD 11155A - PIN, RING W/HEAD 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11183 - PLUG, SEMICIRCULAR 11191 - TUBE, SPARK PLUG 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11212 - COVER, CYLINDER HEAD, NO.2 11213 - GASKET, CYLINDER HEAD COVER 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) 15678A - FILTER, OIL CONTROL VALVE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
