TOYOTA CAMRY GRACIA SXV20-FEPNK / POWERTRAIN-CHASSIS / TRANSMISSION CASE OIL PAN ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

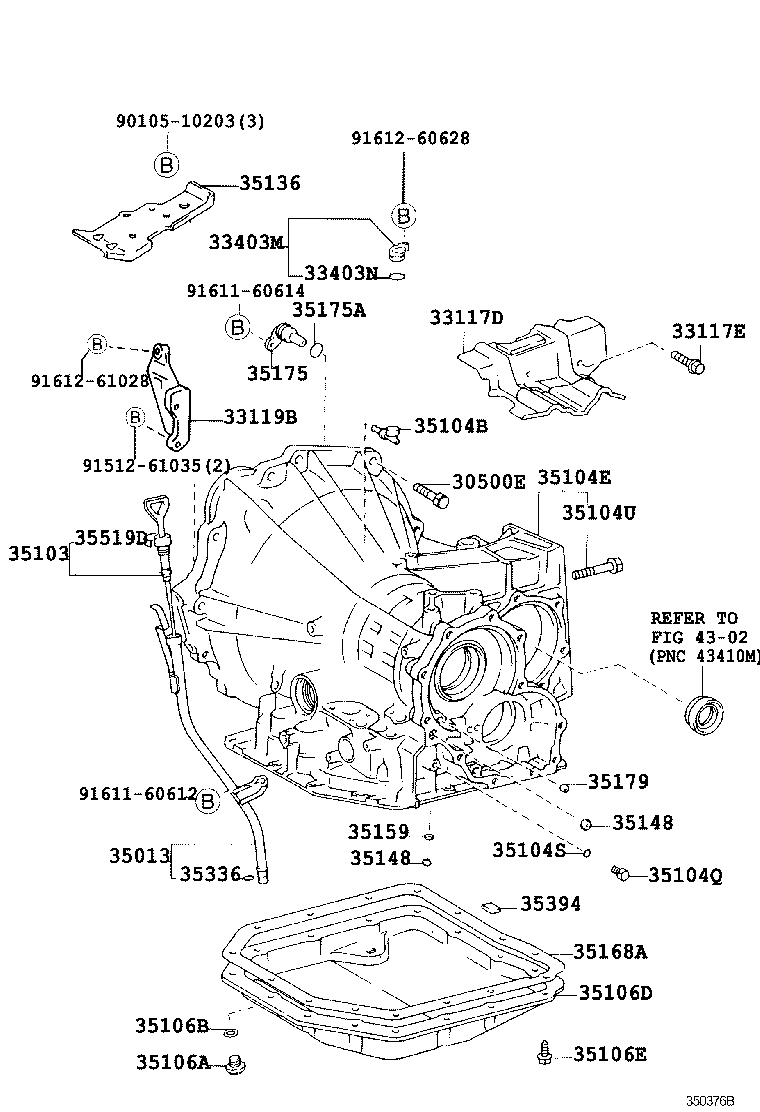

TRANSMISSION CASE OIL PAN ATM

A140E (9612- )SXV20

CAMRY GRACIA | TRANSMISSION CASE OIL PAN ATM 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) 33119B - PLATE, STIFFENER, LH(ATM) 33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM) 33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL 35104B - PLUG, BREATHER, NO.1 (ATM) 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) 35104U - BOLT (FOR TRANSAXLE CASE) 35106A - PLUG SUB-ASSY, DRAIN (ATM) 35106B - GASKET, DRAIN PLUG (ATM) 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL 35106E - BOLT (FOR TRANSAXLE OIL PAN) 35136 - HANGER, TRANSMISSION,NO.1 35148 - GASKET, GOVERNOR APPLY, NO.1 35148 - GASKET, GOVERNOR APPLY, NO.1 35159 - GASKET, BRAKE DRUM 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN 35175 - CAP, TRANSAXLE CASE, NO.2 35175A - RING, O (FOR TRANSAXLE CASE CAP) 35179 - GASKET, OVERDRIVE BRAKE 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
