TOYOTA CHASER LX90-BTPNT / BODY / LUGGAGE COMPARTMENT DOOR LOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

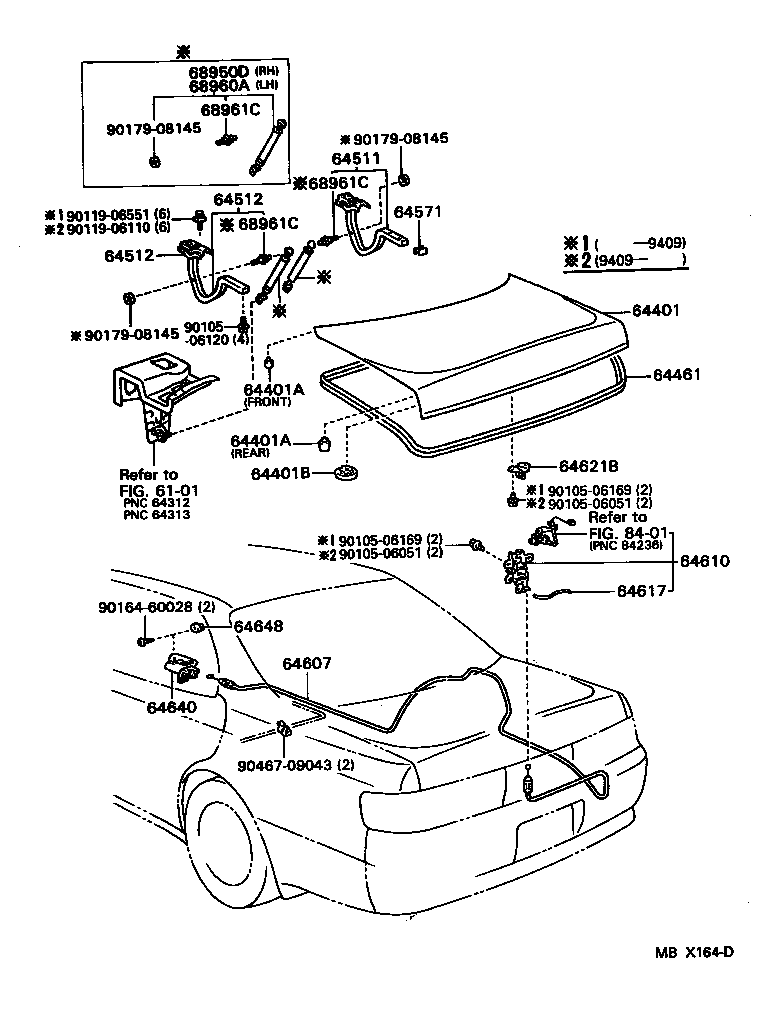

LUGGAGE COMPARTMENT DOOR LOCK

(9210- )

 CHASER |  LUGGAGE COMPARTMENT DOOR LOCK ** Refer Fig 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) 64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL) 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH 64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR 64617 - LINK, LUGGAGE COMPARTMENT DOOR LOCK 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK 64640 - OPENER ASSY, LUGGAGE DOOR LOCK 64648 - GROMMET, LUGGAGE DOOR LOCK OPENER 68950D - STAY ASSY, LUGGAGE DOOR, RH 68960A - STAY ASSY, LUGGAGE DOOR, LH 68961C - BOLT, LUGGAGE DOOR STAY 68961C - BOLT, LUGGAGE DOOR STAY 68961C - BOLT, LUGGAGE DOOR STAY ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
