TOYOTA CARINA FF ST215-CEPEK / POWERTRAIN-CHASSIS / TRANSFER CASE EXTENSION HOUSING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

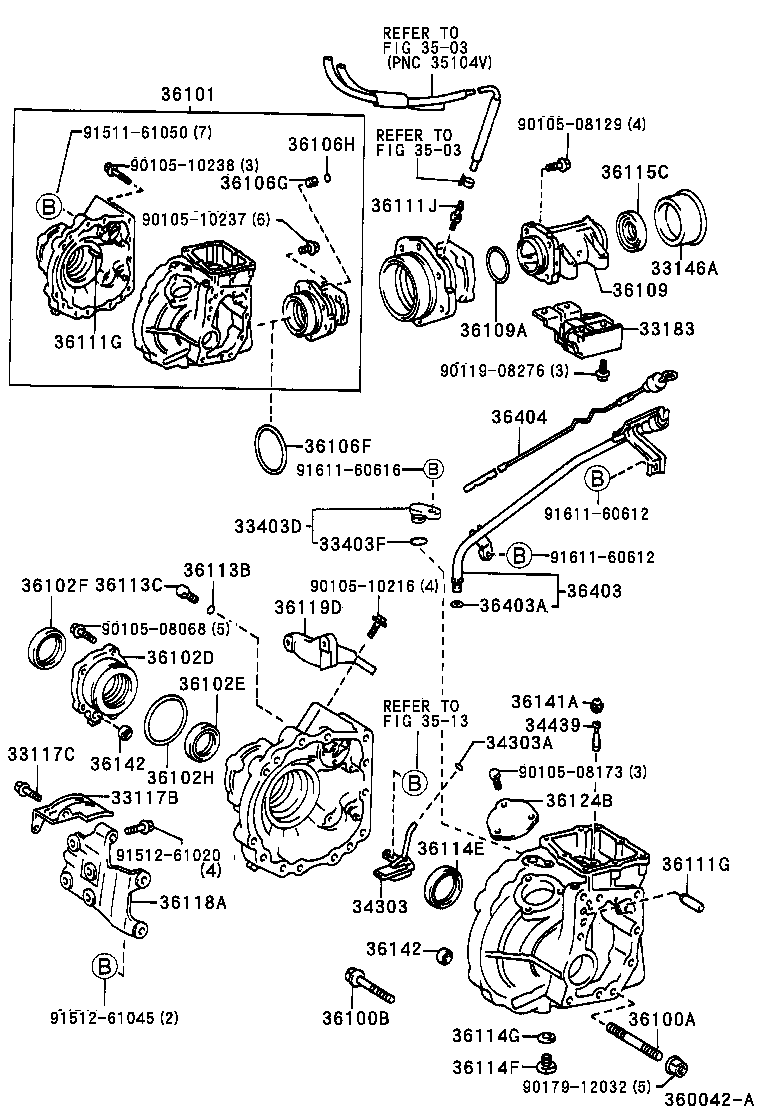

TRANSFER CASE EXTENSION HOUSING

(9608-9808)ST215..4FC

 CARINA FF |  TRANSFER CASE EXTENSION HOUSING 33117B - PROTECTOR, TRANSFER CASE 33117C - BOLT(FOR TRANSFER CASE PROTECTOR) 33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST 33183 - DAMPER, TRANSFER DYNAMIC 33403D - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE 33403F - RING,O (FOR SPEEDOMETER DRIVEN HOLE COVER) 34303 - STRAINER SUB-ASSY, TRANSFER OIL 34303A - RING, O (FOR TRANSFER OIL STRAINER) 34439 - STRAINER, TRANSFER VALVE BODY ** Refer Fig ** Refer Fig ** Refer Fig 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) 36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING) 36101 - CASE SUB-ASSY, TRANSFER 36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING 36102E - SEAL, OIL, NO.1 (FOR TRANSFER RH BEARING RETAINER) 36102F - SEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER) 36102H - RING, O (FOR TRANSFER RH BEARING RETAINER) 36106F - RING, O (FOR TRANSFER PINION BEARING CAGE) 36106G - PLUG, STRAIGHT (FOR TRANSFER PINION BEARING CAGE) 36106H - PLUG, O (FOR TRANSFER PINION BEARING CAGE PLUG) 36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION 36109A - RING, O (FOR TRANSFER EXTENSION HOUSING) 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) 36111J - UNION, BREATHER, NO.1 (FOR TRANSFER) 36113B - RING, O (FOR TRANSFER CASE PLUG) 36113C - PLUG (FOR TRANSFER CASE) 36114E - SEAL, OIL (FOR TRANSFER CASE LH) 36114F - PLUG (FOR TRANSFER DRAIN) 36114G - GASKET (FOR TRANSFER DRAIN PLUG) 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) 36118A - PLATE, TRANSFER STIFFENER, RH 36119D - PLATE, TRANSFER STIFFENER, CENTER 36124B - COVER, TRANSFER INSPECTION HOLE 36141A - GASKET, TRANSFER CASE 36142 - GASKET, TRANSFER COVER 36142 - GASKET, TRANSFER COVER 36403 - TUBE SUB-ASSY, TRANSFER OIL FILLER 36403A - RING, O (FOR TRANSFER OIL FILLER TUBE) 36404 - GAGE SUB-ASSY, TRANSFER OIL LEVEL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
