TOYOTA SPRINTER CE114-BEMES / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

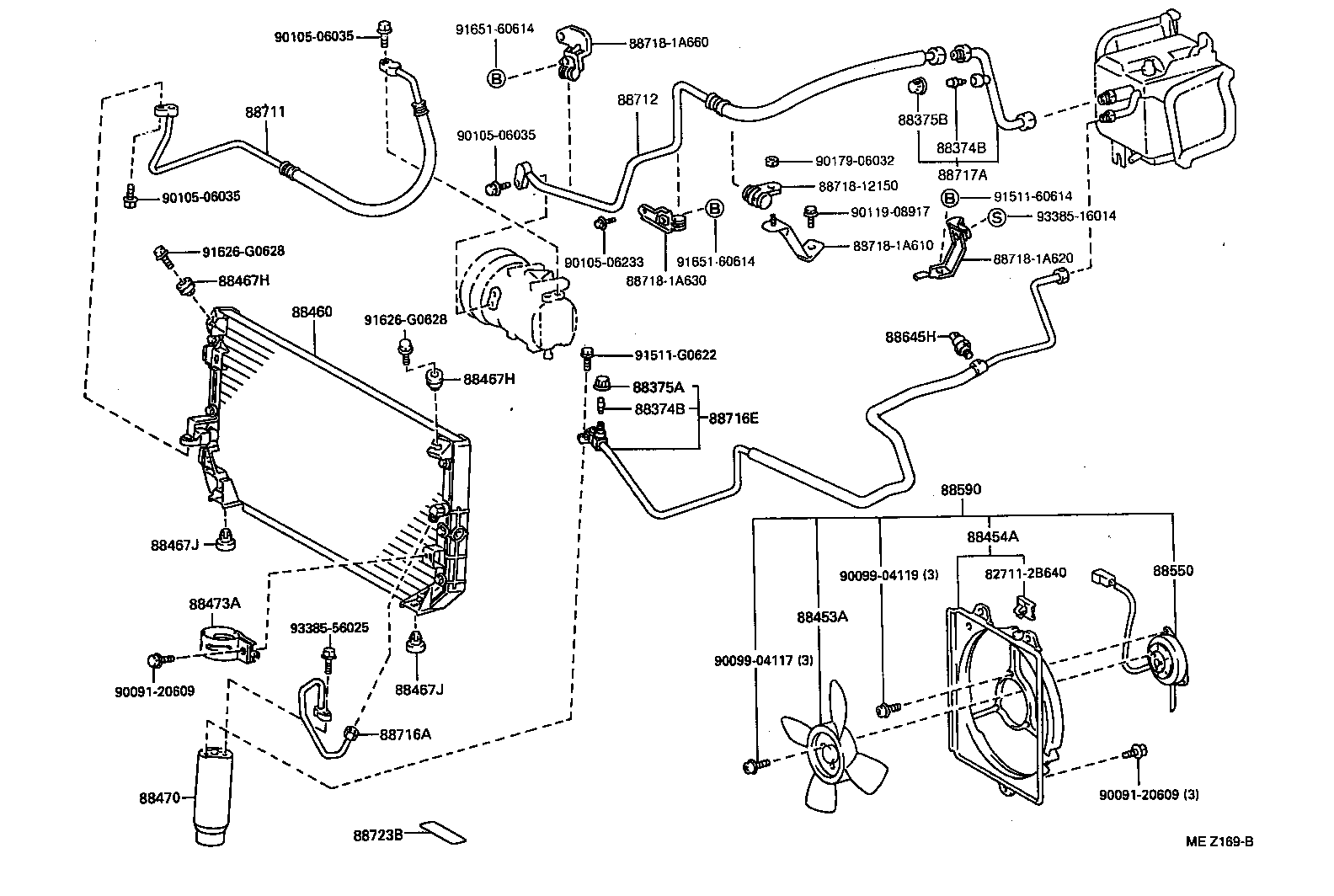

メ-カ オプシヨン ILLUST NO. 1 OF 2(9505-9704)CE11#..SEVIN

 SPRINTER |  HEATING AIR CONDITIONING COOLER PIPING  ** Std Part 88374B - VALVE, SERVICE, NO.1 88374B - VALVE, SERVICE, NO.1 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88375B - CAP, SERVICE VALVE, NO.1 88453A - FAN, COOLING 88454A - SHROUD, FAN 88460 - CONDENSER ASSY, COOLER 88467H - CUSHION, CONDENSER BRACKET, NO.1 88467H - CUSHION, CONDENSER BRACKET, NO.1 88467J - CUSHION, CONDENSER BRACKET, NO.2 88467J - CUSHION, CONDENSER BRACKET, NO.2 88470 - RECEIVER & DRYER ASSY, COOLER 88473A - HOLDER, RECEIVER 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) 88590 - BLOWER ASSY, W/SHROUD 88645H - SWITCH, PRESSURE NO.1 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717A - PIPE, COOLER REFRIGERANT SUCTION, A  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 88723B - LABEL, COOLER SERVICE CAUTION  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
