TOYOTA SCEPTER WG CP VCV15W-CWPGK / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

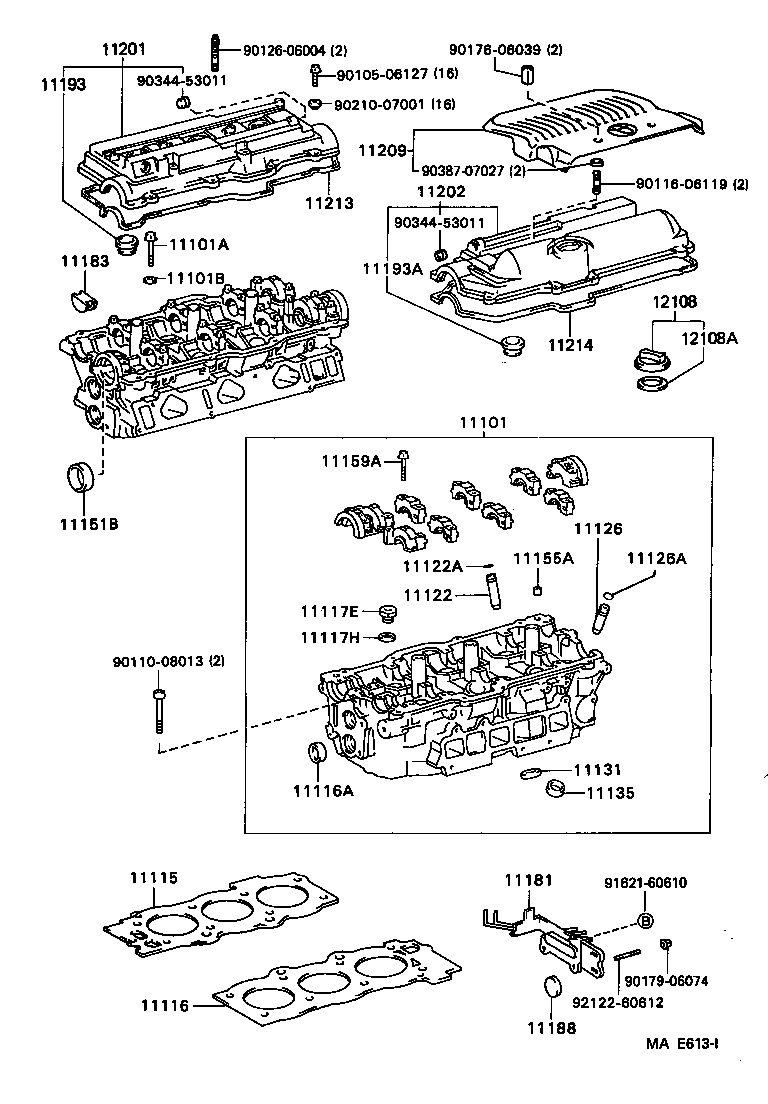

CYLINDER HEAD

(9207- )3VZFE

 SCEPTER WG CP |  CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11115 - GASKET, CYLINDER HEAD 11116 - GASKET, CYLINDER HEAD, NO.2 11116A - PLUG, TIGHT, NO.1 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 11117H - GASKET(FOR WATER HOLE) 11122 - BUSH, INTAKE VALVE GUIDE 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) 11126 - BUSH, EXHAUST VALVE GUIDE 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) 11155A - PIN, RING W/HEAD 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11181 - PLATE, CYLINDER HEAD, REAR 11183 - PLUG, SEMICIRCULAR 11188 - PLUG, CAMSHAFT HOUSING 11193 - GASKET, SPARK PLUG TUBE 11193A - GASKET, SPARK PLUG TUBE, LH 11201 - COVER SUB-ASSY, CYLINDER HEAD 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH 11209 - COVER SUB-ASSY, V-BANK 11213 - GASKET, CYLINDER HEAD COVER 11214 - GASKET, CYLINDER HEAD COVER, NO.2 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
